Aurore Track versions
Highly flexible downlight on track for general & accent cardanic lighting
Indoor range
Ceiling & Wall
CRI
CRI > 90 (standard version)
CRI 95, R9 > 90 (premium version)
(see datasheet)
Optics/Diffusers
6° - 10º - 15º - 20º - 25º - 30º - 35º - 40º - 55º - 60º - Elliptique (see datasheet)
Option(s)
Special filter, honey comb upon request
IP
IP40
Colour temperature
2700K - 3000K – 3500K – 4000K – 5000K (other upon request)
UGR
<15
Finishing
White RAL 9003 matt finish Black RAL 9005 matt finish ( other upon request)
Electric class
48V Tracks : Class III 230V Tracks : Class II
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature. 3-year parts and labour warranty
Download the documentation
Discover the whole range Aurore Track versions
Aurore D40 Track
Dimensions
Stucchi Track 48V
DALI Track 48V
Track 230V
DALI Track 230V
Ø40mm
Easy Swap - optional
(see datasheet)
Net weight
± 0.3 kg according to version
Luminous flux
300 to 800 lm according to version
LED power
4W to 10W
Aurore D42 Track
Versions
48V Stucchi Track
48V DALI Track
230V Track
230V DALI Track
Ø42mm
LOuss Permuto
(see datasheet)
Net weight
± 0.3 kg according to version
Luminous flux
300 to 800 lumen according to version
Power
4W to 10W
Aurore D52 Track
Versions
48V Stucchi Track
48V DALI Track
230V Track
230V DALI Track
Ø52mm
Net weight
± 0.50 kg
Luminous flux
600 to 2,000 lumen according to version
LED power
6W to 12W
Aurore D55 Track
Versions
Stucchi Track 48V
DALI Track 48V
Track 230V
DALI Track 230V
Ø52mm
LOuss Permuto
(see datasheet)
Net weight
± 0.5kg
Luminous flux
600 to 2,000 lumen according to version
Power
6W to 25W

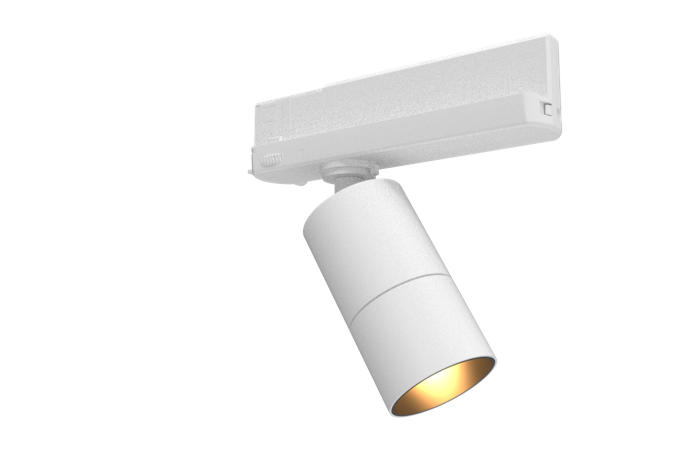

Aurore D60 Track
Versions
230V Track
230V DALI Track
Ø61mm
Net weight
± 0.50 kg
Luminous flux
600 to 2,000 lm according to version
LED power
6W to 25W
Aurore D82 Track
Version
230V Track
230V DALI Track
Net weight
± 0.80 kg
Luminous flux
700 to 2,500 lm according to version
LED power
15W to 35W
