Aurore Recessed versions

Highly flexible recessed ceiling downlight for general & accent lighting
Download the documentation

Discover the whole range Aurore Recessed versions

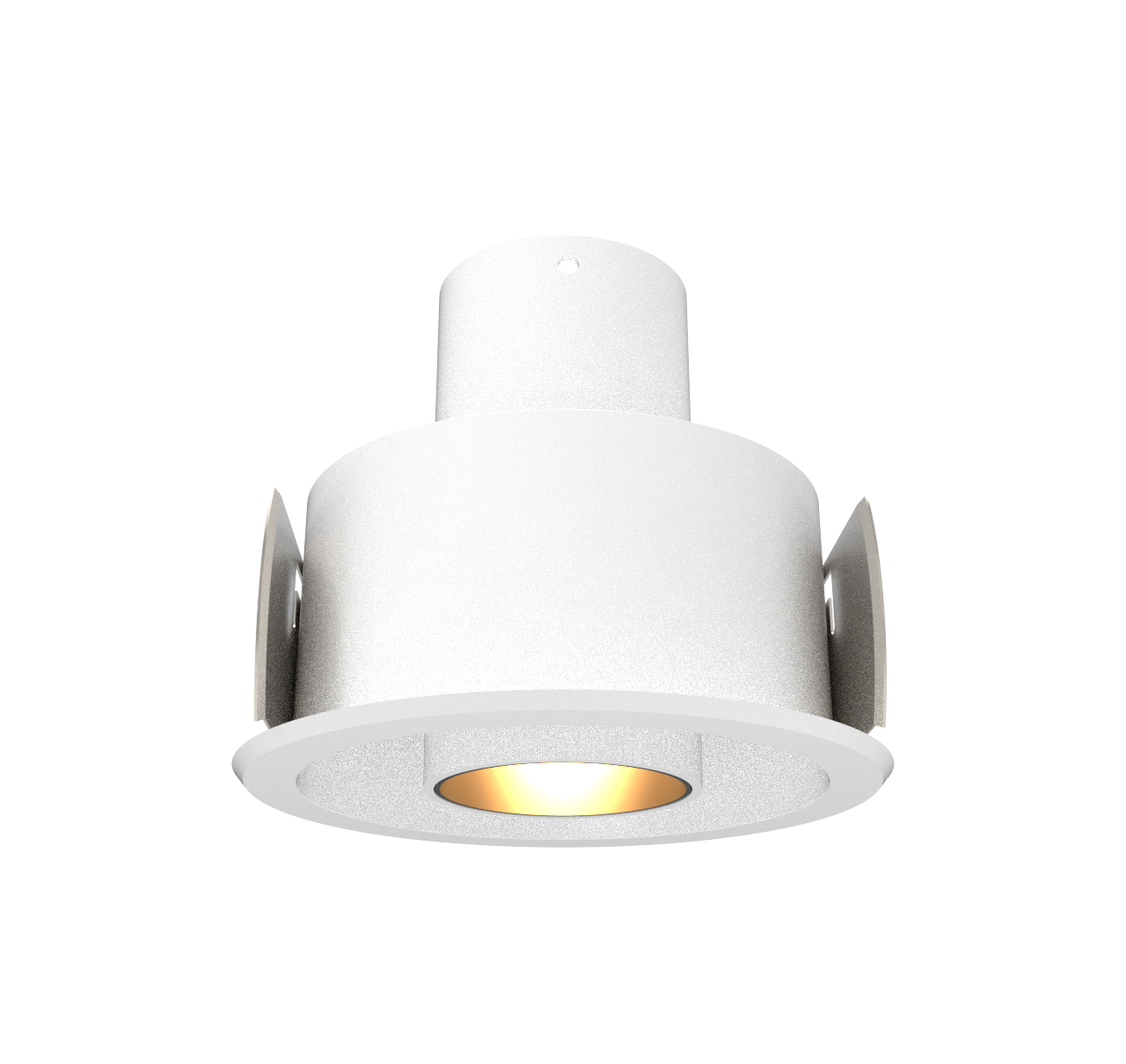

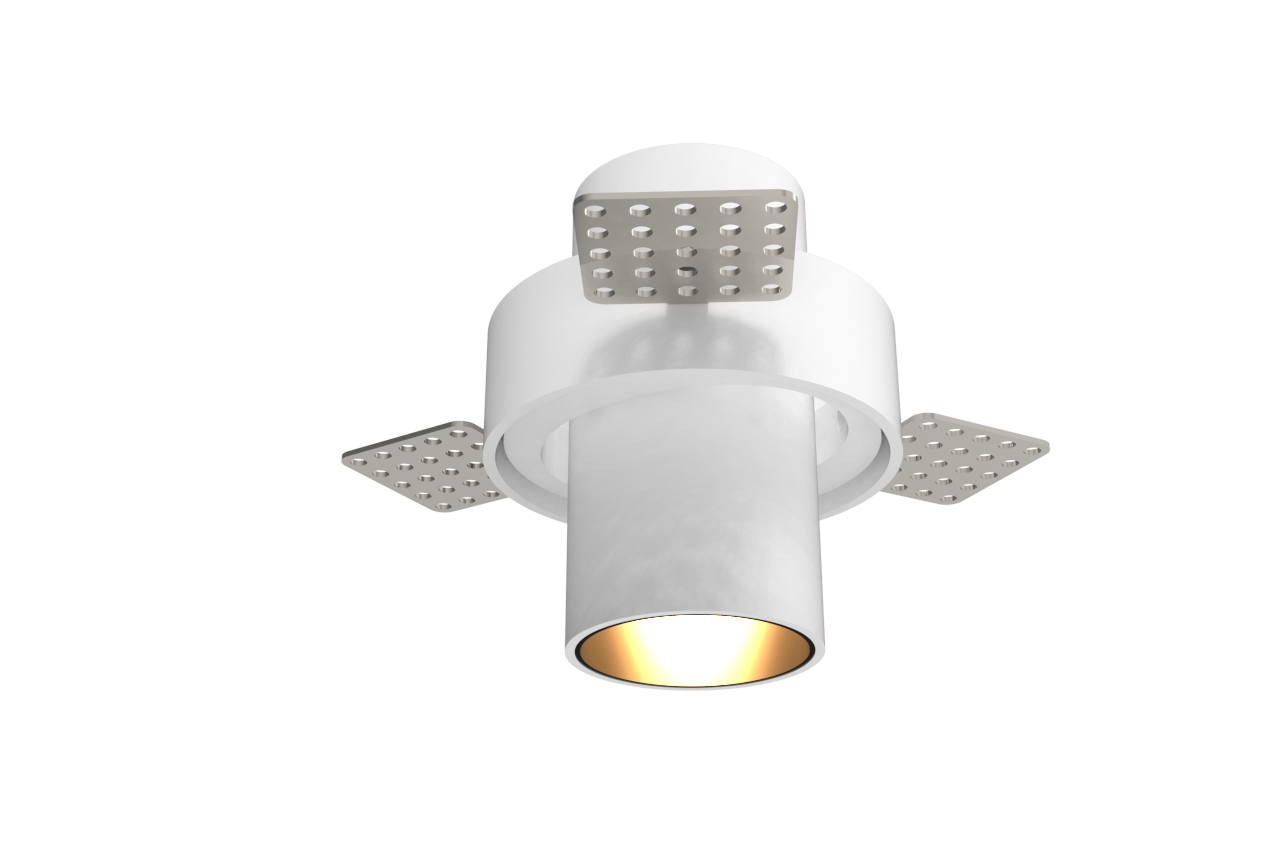

Aurore D40 Trimless

Dimensions

Length : 80mm
Diameter : 40mm

Net weight

0.150 kg

Luminous flux

300 to 800 lm according to version

Power supply

350mA to 700mA constant current driver according to version
Dimmable driver upon request

LED power

4W to 10W

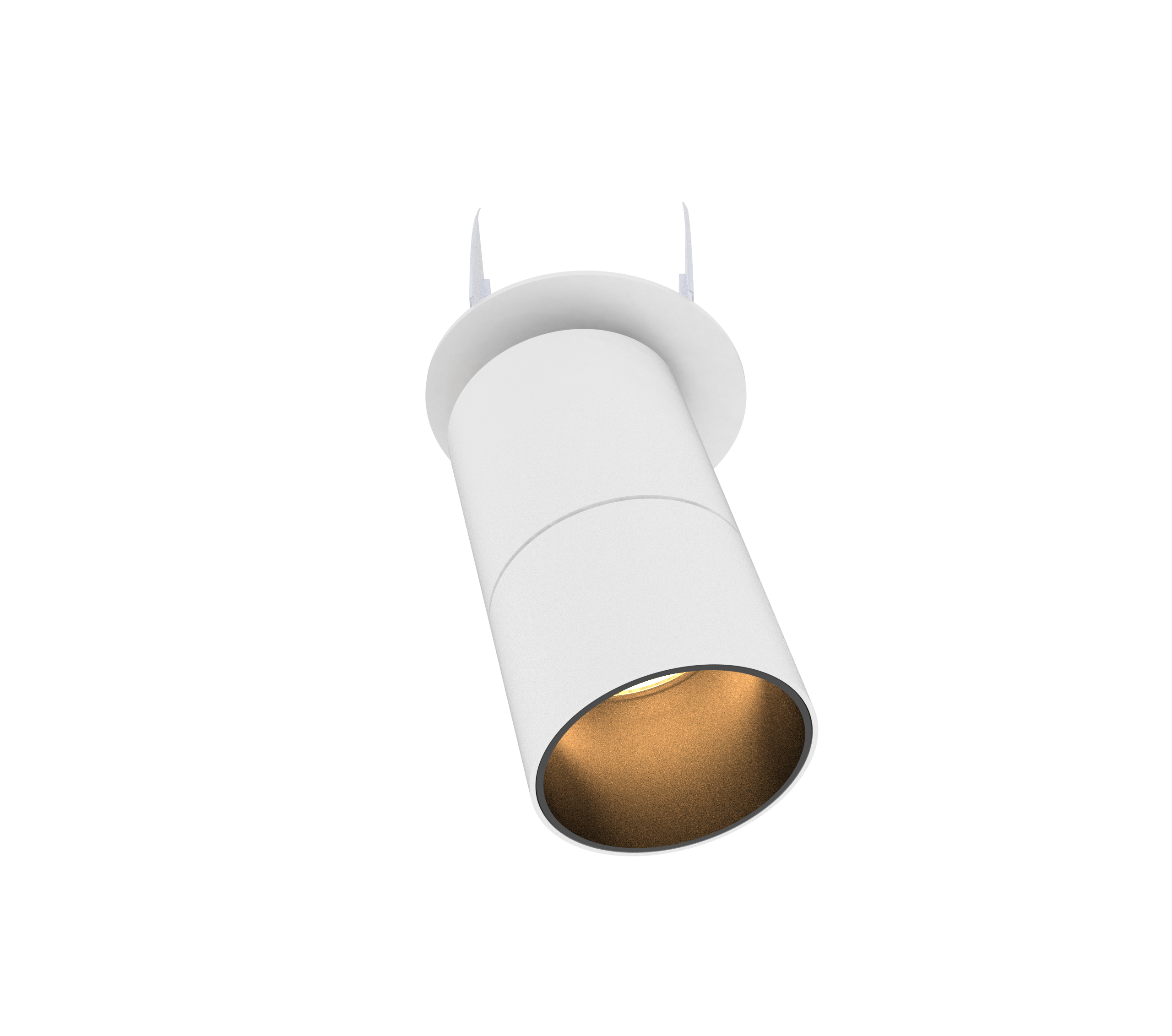

Aurore D52 Fixed canon

Dimensions

Length : 95mm or 140mm
Diameter : 52mm

Net weight

0.40kg

Luminous flux

600 to 1500 lm according to version

Power supply

350mA to 1400mA constant current driver according to version
Dimmable driver upon request

LED power

6W to 25W

Aurore D52 Ring

Dimensions

Length : 95mm or 140mm
Diameter : 52mm

Net weight

0.450 kg

Luminous flux

600 to 2000 lm according to version

Power supply

350mA to1400mA constant current driver according to version
Dimmable driver upon request

LED power

6W to 20W

Aurore D52 Trimless

Dimensions

Length : 95mm or 140mm
Diameter : 52 mm

Net weight

0.450kg

Luminous flux

600 to 2000 lm according to version

Power supply

350mA to 1.400mA constant current driver according to version
Dimmable driver upon request

LED power

6W to 25W

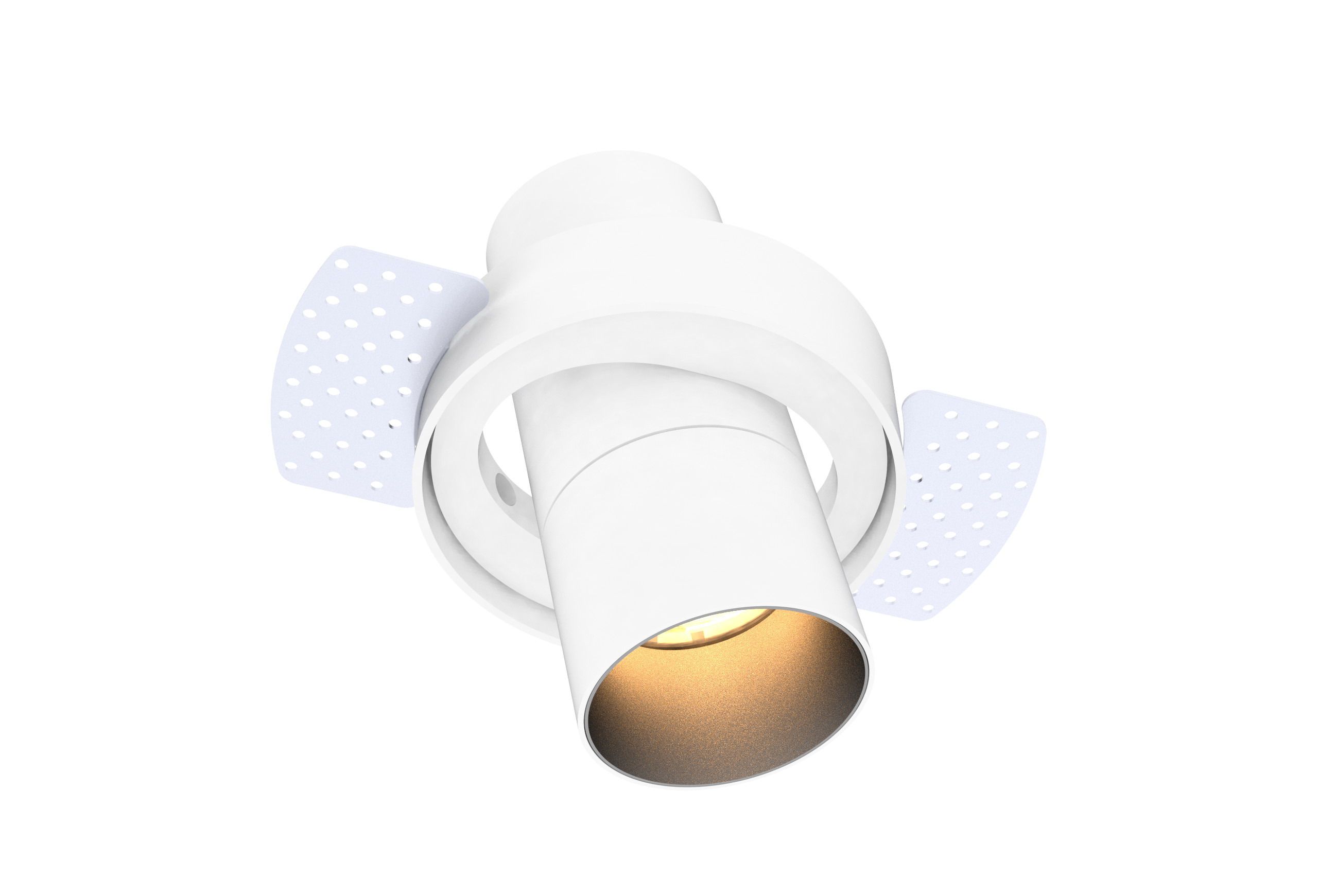

Aurore D60 Trimless

Dimensions

Length : 145mm
Diameter : 61mm

Net weight

0.45 kg

Luminous flux

600 to 2000 lm according to version

Power supply

350mA to 1.400mA constant current driver according to version
Dimmable driver upon request

LED power

6W to 25W

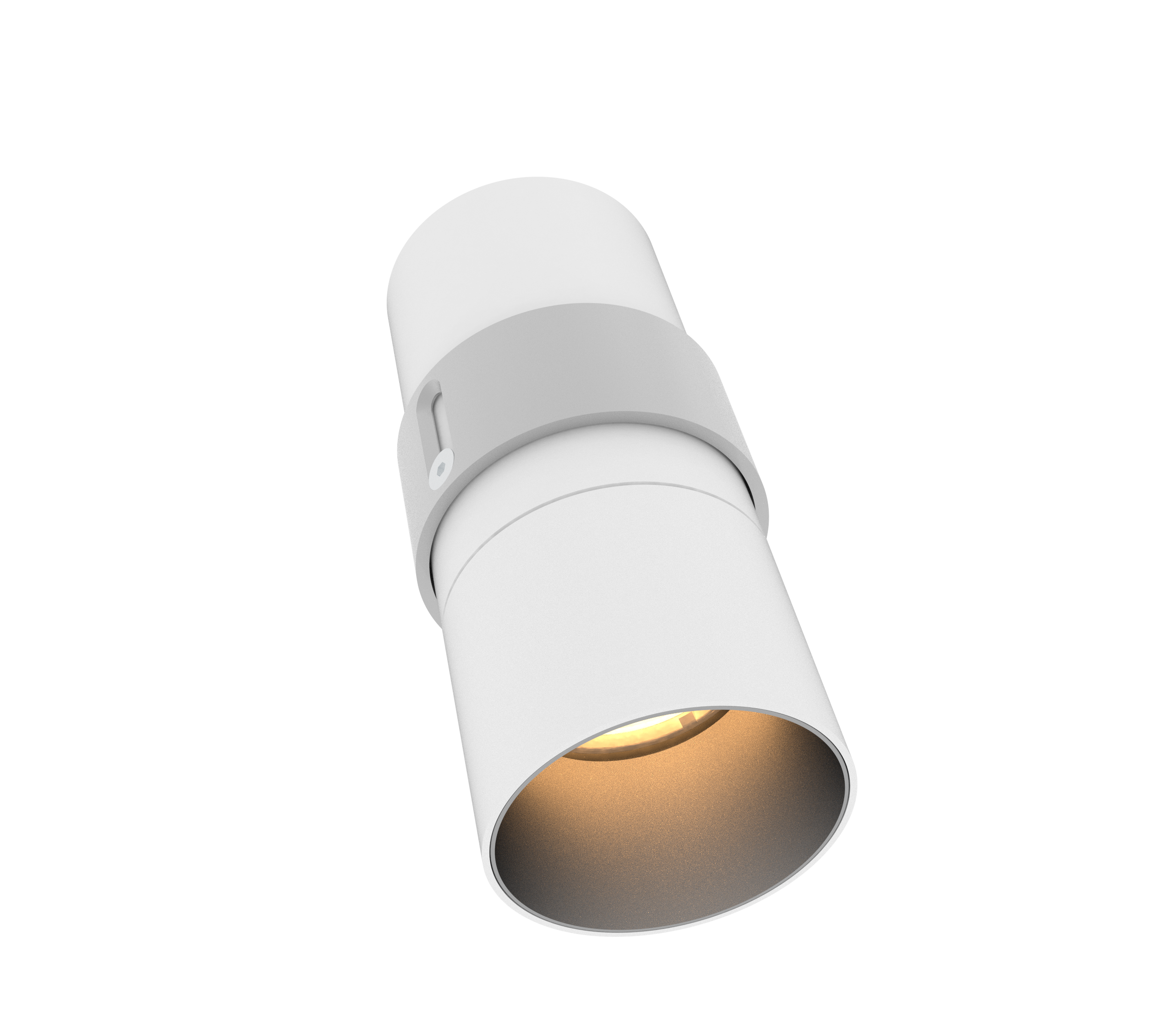

Aurore D60 Fixed canon

Dimensions

Length : 145mm
Diameter : 61mm

Net weight

0.40 kg

Luminous flux

600 to 1500 lm according to version

Power supply

350mA to 1400mA constant current driver according to selected version
Dimmable driver as an option

LED power

6W to 25W driver included

Aurore D60 Ring

Dimensions

Length : 145mm
Diameter : 61mm

Net weight

0.45 kg

Luminous flux

600 to 2000 lm according to version

Power supply

350mA to 1,400mA constant current driver according to version
Dimmable driver upon request

LED power

6W to 25W

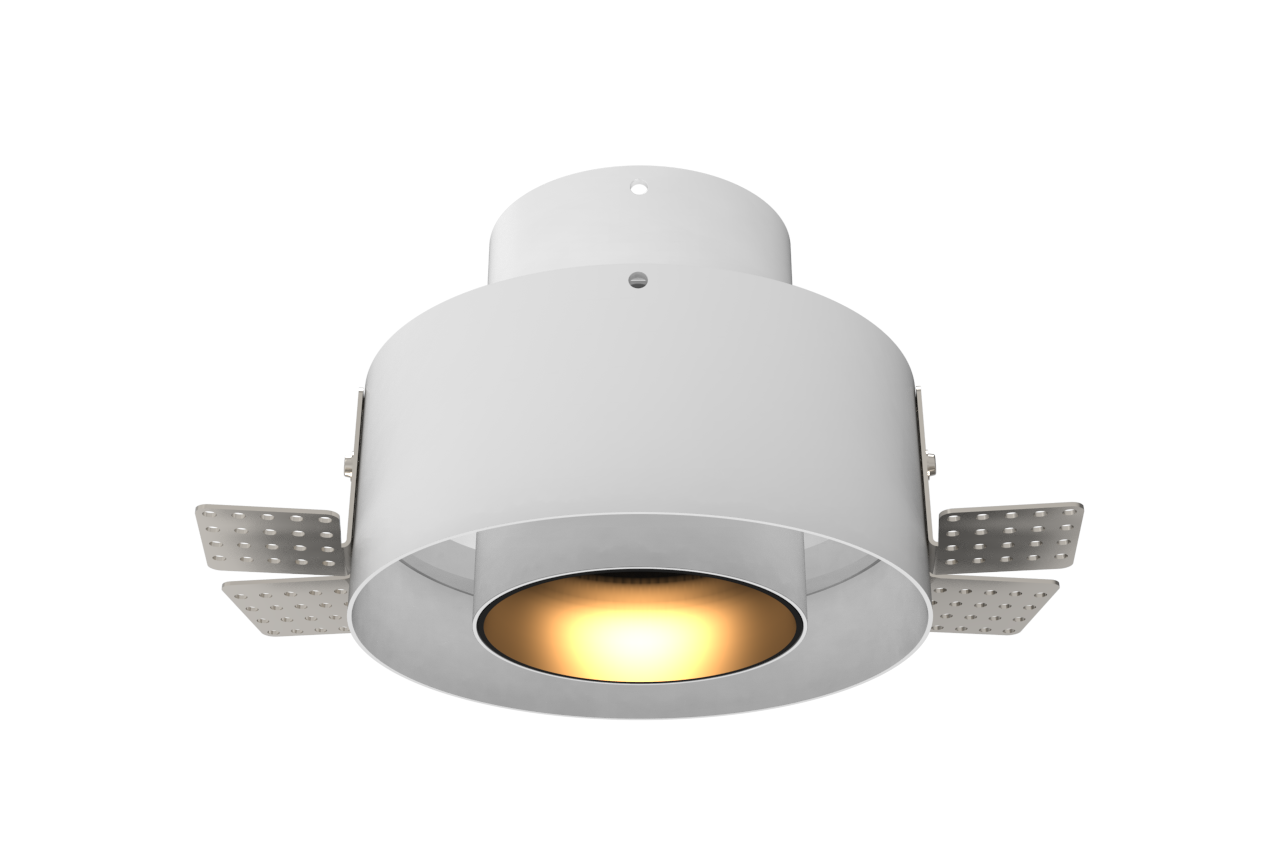

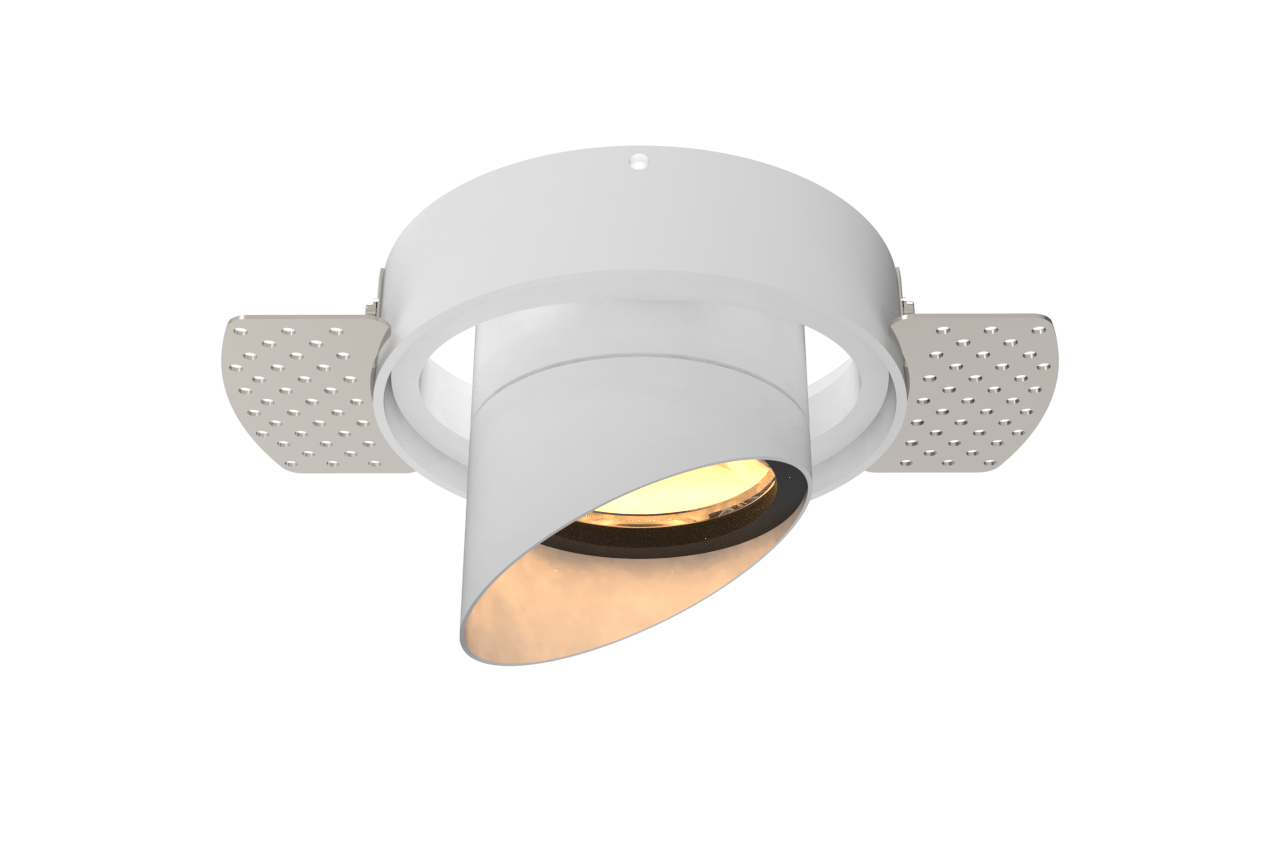

Aurore D75 Trimless

Dimensions

Length : 100mm
Diameter : 75mm

Net weight

0.50 kg

Luminous flux

600 to 2000 lm according to version

Power supply

350mA to 1.400mA constant current driver according to selected version
Dimmable driver upon request

LED power

6W to 25W

Aurore D82 Trimless

Dimensions

Length : 146mm
Diameter : 81mm

Net weight

0.90 kg

Luminous flux

1500 to 2500 lm

Power supply

350mA to 1.400mA constant current driver according to version
Dimmable driver upon request

LED power

15W to 25W

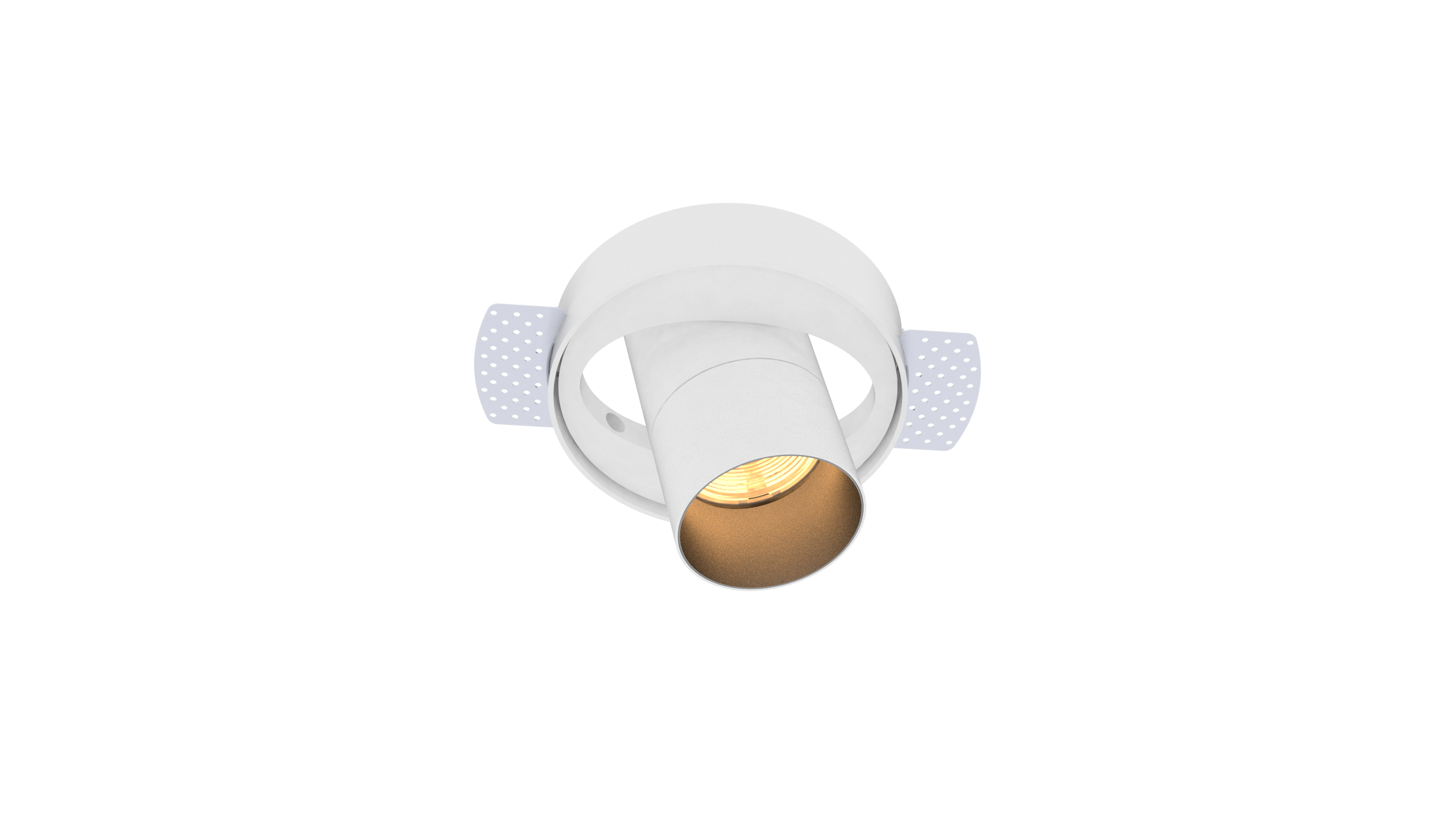

Aurore D82 Trimless Tunable White

Dimensions

Length : 146mm
Diameter : 81mm

Net weight

0.90 kg

Colour temperature

3 LED 2700K – 4000K – 6500K

Optics/Diffusers

8°- 20°- 30º

Luminous flux

2300 to 2600 lm according to version

Power supply

Remote constant current DMX driver 350mA to 700mA
(1A possible with driver flanged at 30W max)

LED power

30W max
