Brike
3 or 6 LED low luminance luminaire for general and accent lighting
Indoor & outdoor range
Ceiling & Wall
Colour temperature
2700K – 3000K – 3500K - 4000K (other upon request)
CRI & UGR
CRI 90
CRI > 95 upon request
UGR < 19
Optics/Diffusers
10°- 25°- 40°- 60°
Finishing
Aluminum heatsink Painted aluminum body RAL upon request
Option(s)
Special filters upon request
IP
IP40
Electric class
III
Power supply & LED Power
900mA max. external constant current driver Dimmable driver upon request 3 LEDs : 9W 6 LEDs : 18W
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Brike
Brike 3 LED Recessed
Dimensions
Length: 165mm (with brackets)
Width: 45.5mm
Height : 84.8mm (IP40)
78.6mm (IP54)
Net weight
0.37 kg (without driver)
Power
9W max.
Brike 3 LED Recessed Magnetic (without box)
Description
Supplied with magnets only
Dimensions
Length : 135.5mm
Width : 45.5mm
Height : 91.5mm
Net weight
0.4 kg (without driver)
Power
9W max.

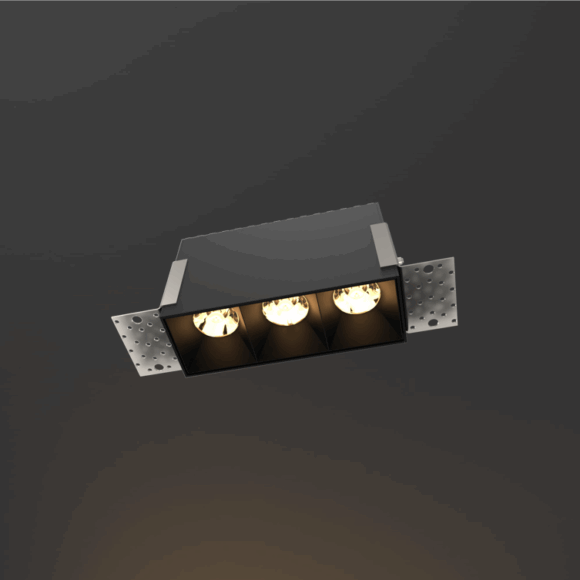

Brike 3 LED Recessed Magnetic (with box)
Description
Supplied with magnets and a recess box with fixing brackets
Dimensions
Lenght : 204mm (with brackets)
Width : 50mm
Height : 91.5mm
Net weight
0.69 kg (without driver)
Power
9W max.

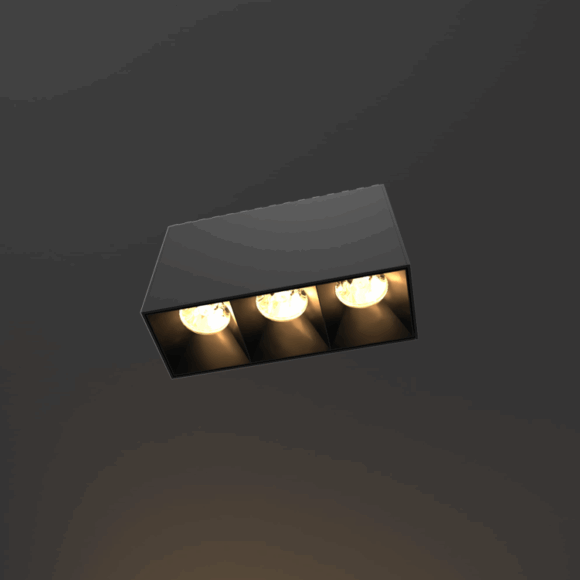

Brike 3 LED Surface-Mounted
Description
Supplied with magnets and a recess box
Dimensions
Length : 140mm
Width : 50mm
Height : 91.5mm
Net weight
0.670 kg (without driver)
Power
9W max.

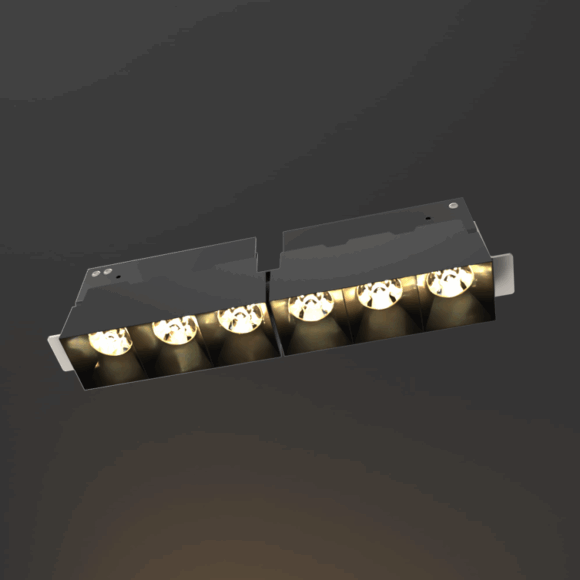

Brike 6 LED Recessed
Dimensions
Length : 302.5mm (with brackets)
Width : 45.5mm
Height : 84.8mm (IP40)
78.6mm (IP54)
Net weight
0.85 kg (without driver)
Power
18W max.

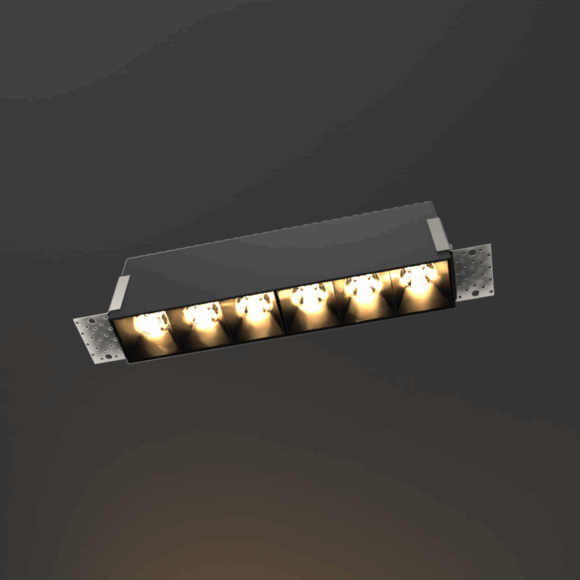

Brike 6 LED Recessed Magnetic (without box)
Description
Supplied with magnets only
Dimensions
Length : 273mm
Width : 45.5mm
Height : 91.5mm
Net weight
0.9 kg (without driver)
Power
18W max.
Brike 6 LED Recessed Magnetic (with box)
Description
Supplied with magnets and a recessed box with fixing brackets
Dimensions
Lenght : 342mm
Width : 50mm (box included)
Height : 91.50mm
Net weight
1.42 kg (without driver)
Power
18W max.

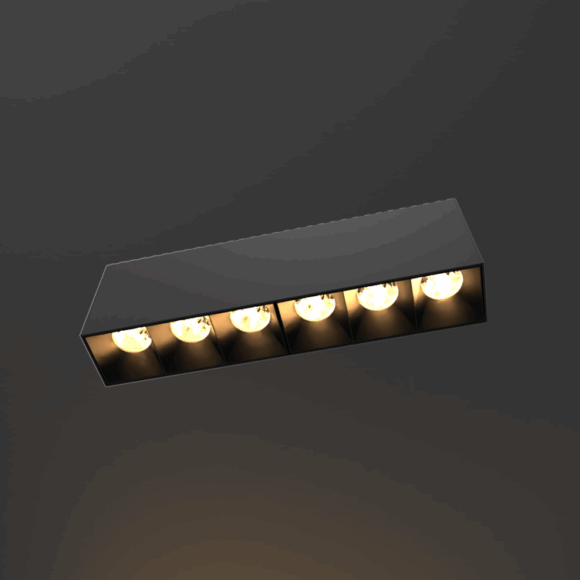

Brike 6 LED Surface-Mounted
Description
Supplied with magnets and a recess box
Dimensions
Length : 278mm
Width : 50mm
Height : 91.5mm
Net weight
1.4 kg (without driver)
Power
18W max.
