NanoStaff

Two or five very small low luminance spotlights with fixed orientation, inserted in a gypsum board and fixed with spring plungers. 2 brackets
Download the documentation

Discover the whole range NanoStaff

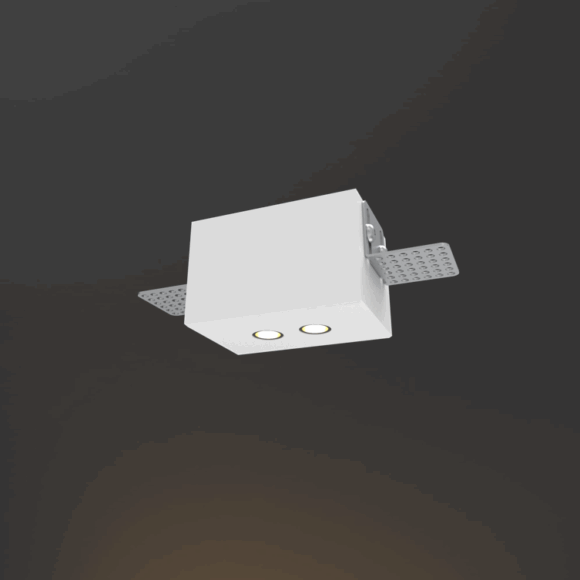

NanoStaff Duo

Dimensions

Length : 130mm (with brackets)
Width : 45mm
Height : 51mm

Net weight

0.867 kg

Fixed orientation LED spots

Angle : 10° - 15° - 25°

Optics/Diffuser

16°- 20° - 40° - 65° - 17°x49°
(elliptical possible without inclination)

Power supply

External constant current driver 700mA max.

LED power

2W at 350mA
3W at 500mA
4W at 700mA

NanoStaff 5 Spotlights

Dimensions

Length : 190mm (brackets included)
Width : 45mm
Heigth : 51mm

Net weight

1.314 kg

Fixed orientation LED spots

Angle : 10° - 15° - 25°

Optical beams

15° - 20° - 37° - 40° - 65° - 16°x40°
(elliptical possible without inclination)

Power supply

External constant current driver 700mA max

LED power

5W at 350mA
8W at 500mA
10W at 700mA
