Mysta Recessed
Adjustable low luminance recessed spotlight on track for general & accent lighting
Indoor range
Ceilling & Walls
Easy Swap (optional)
Easily changeable LED, optics and accessories on site, without any tool, with integrated Easy Swap system
Finish
White RAL 9003 matt finish Black RAL 9005 matt finish (other upon request)
Color temperatures
2700K - 3000K - 3500K - 4000K - 5000K (other upon request)
CRI
CRI 90 (standard version) CRI 95, R9>80 (premium version)
UGR
UGR < 15
Options
Filters, honeycomb grid upon request
Power supply
700mA max. external constant current driver Dimmable driver upon request
Power
9W max.
Electrical rating
III
IP
IP40 or IP54
Life span
L80B10 at 50 000 heures (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Mysta Recessed

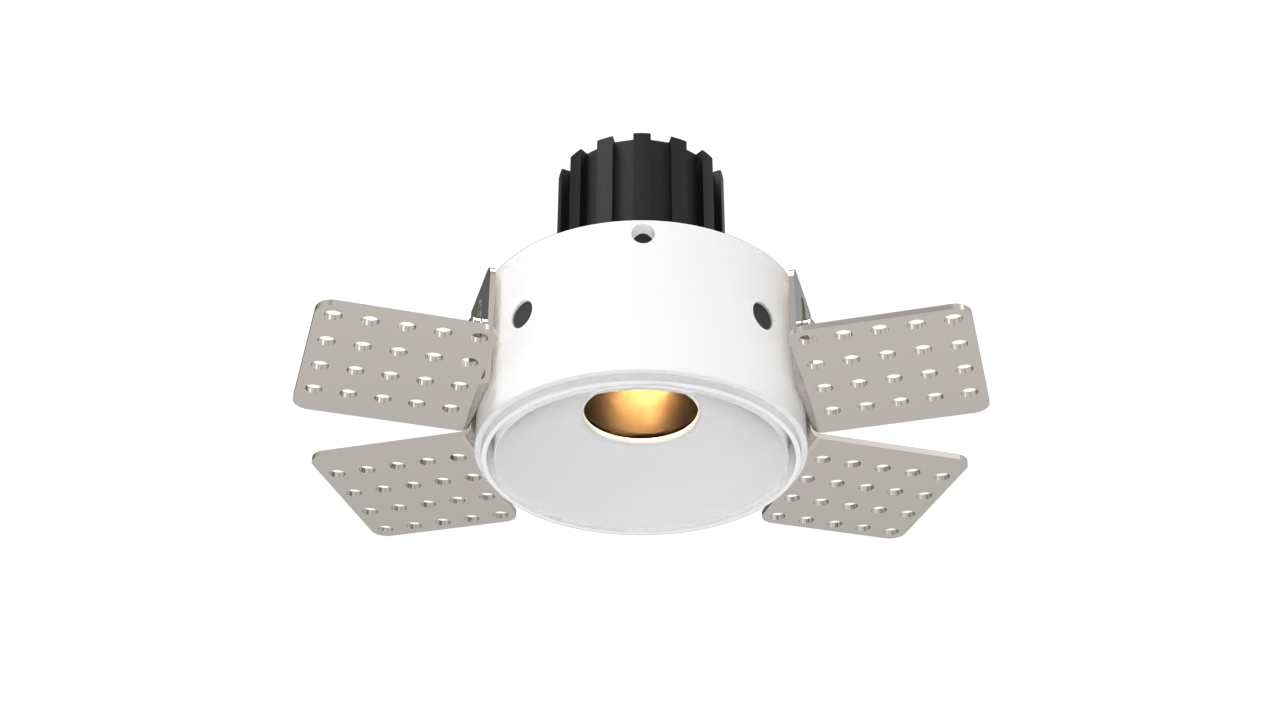

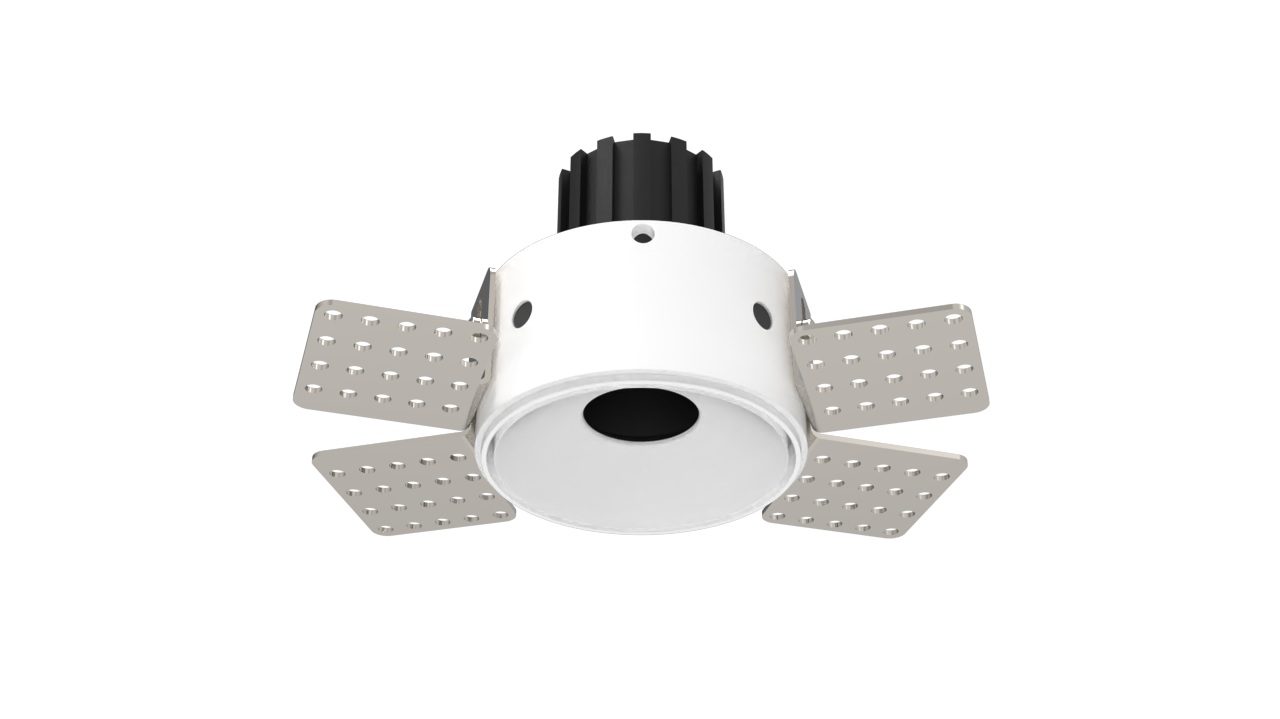

Mysta Trimless-S
Description
Rotation 360°
Adjustable tilt 30°
Without Easy Swap system
Dimensions
Spotlight diameter : 35mm
Installation diameter : 60mm
Installation depth : 64mm
Beams & Performances
12° - 17° - 20° - 25° - 28° - 30°
140 to 263lm
635 to 2,100lm

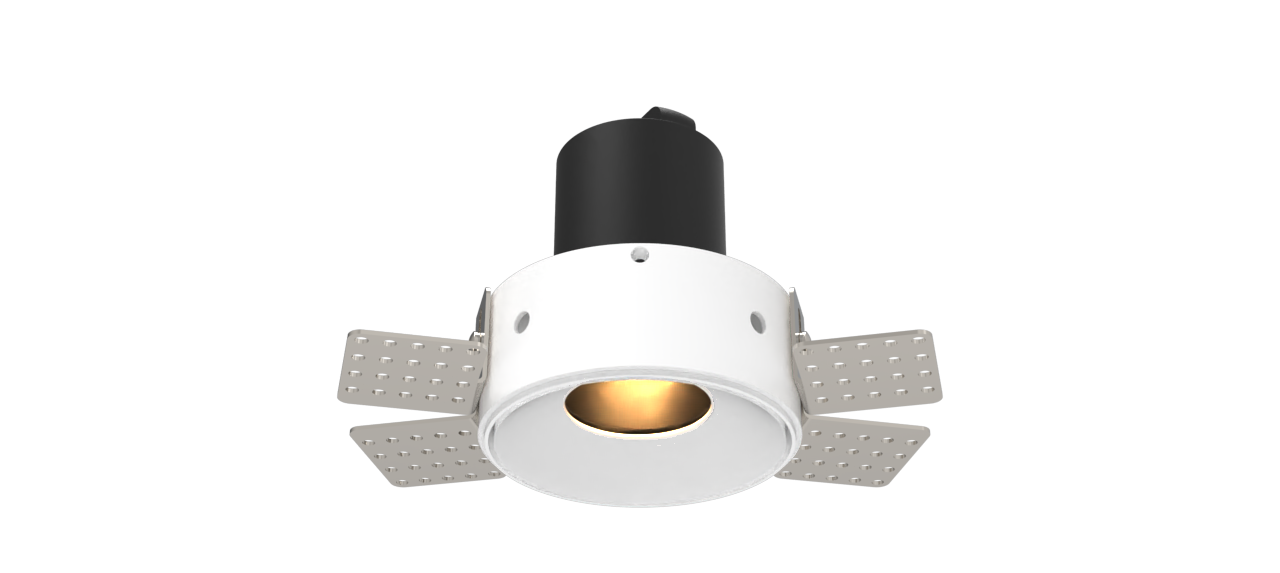

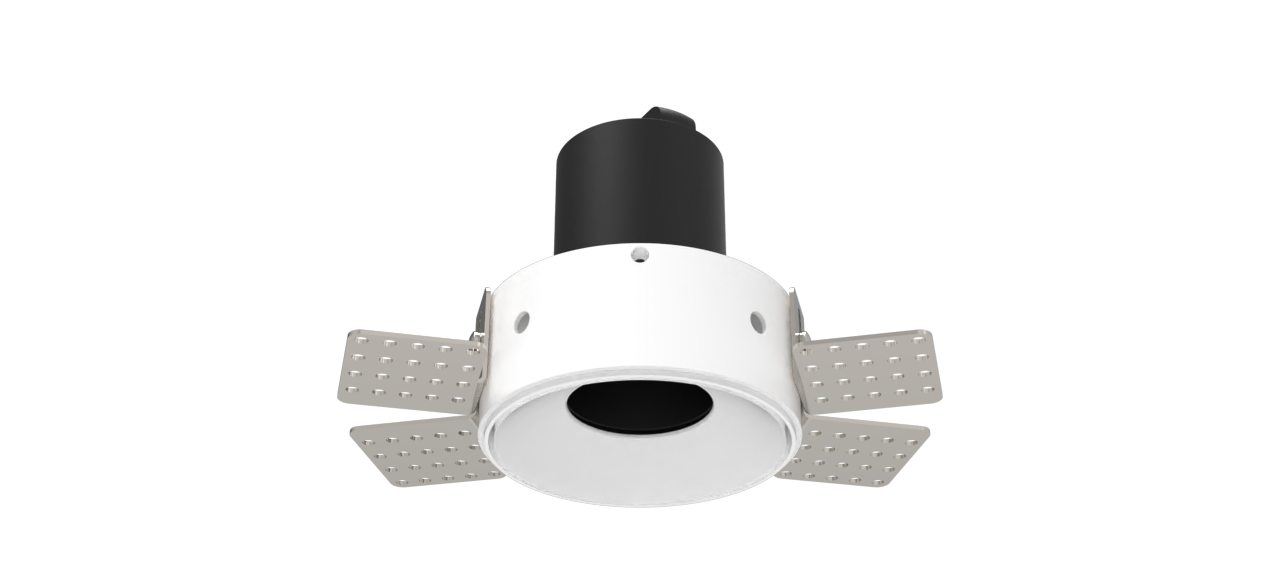

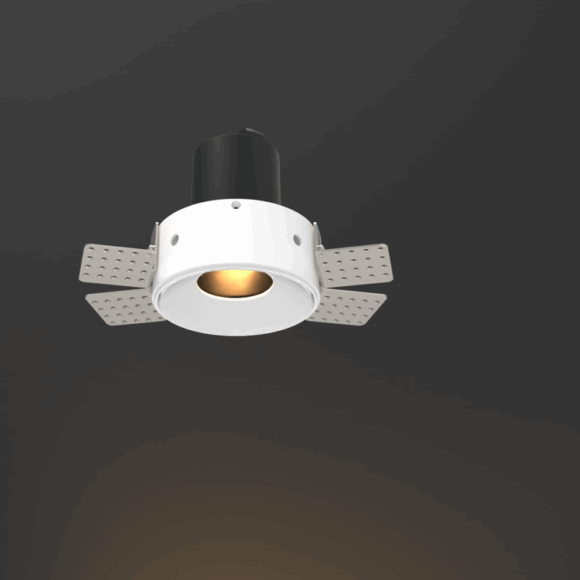

Mysta Trimless
Description
Rotation 360°
Adjustable tilt 30°
Optional : Easy Swap system
Dimensions
Spotlight diameter : 42mm
Installation diameter : 74.5mm
Installation depth : 85mm
Beams & Performances
11° - 16° - 20° - 23° - 34° - 43°
300 to 800lm
1050 to 10 900cd

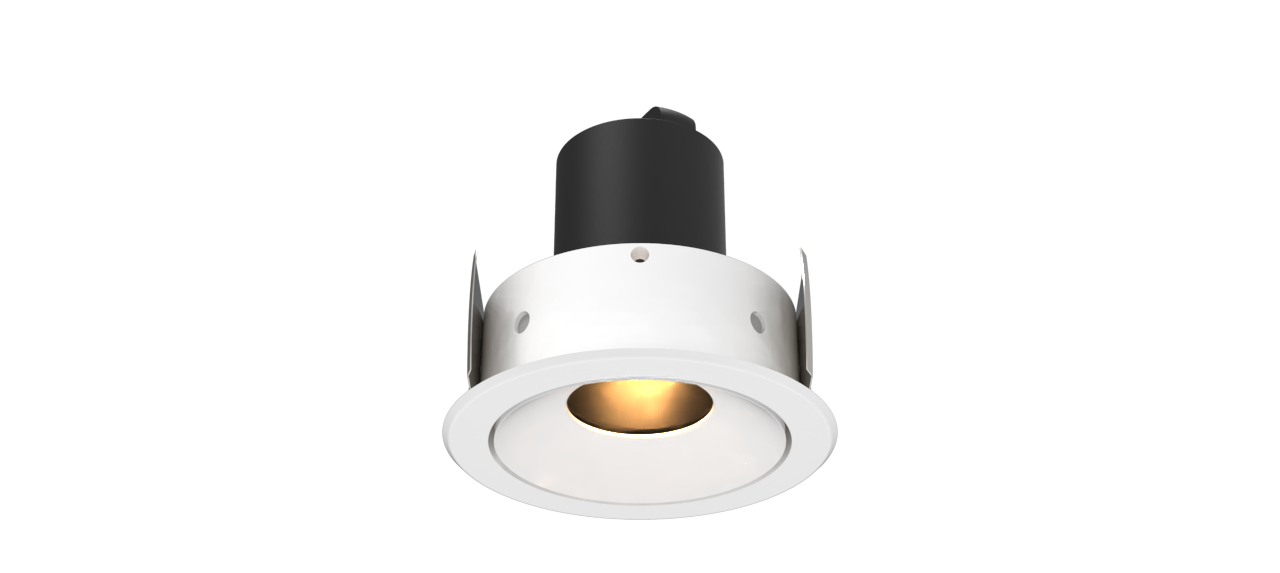

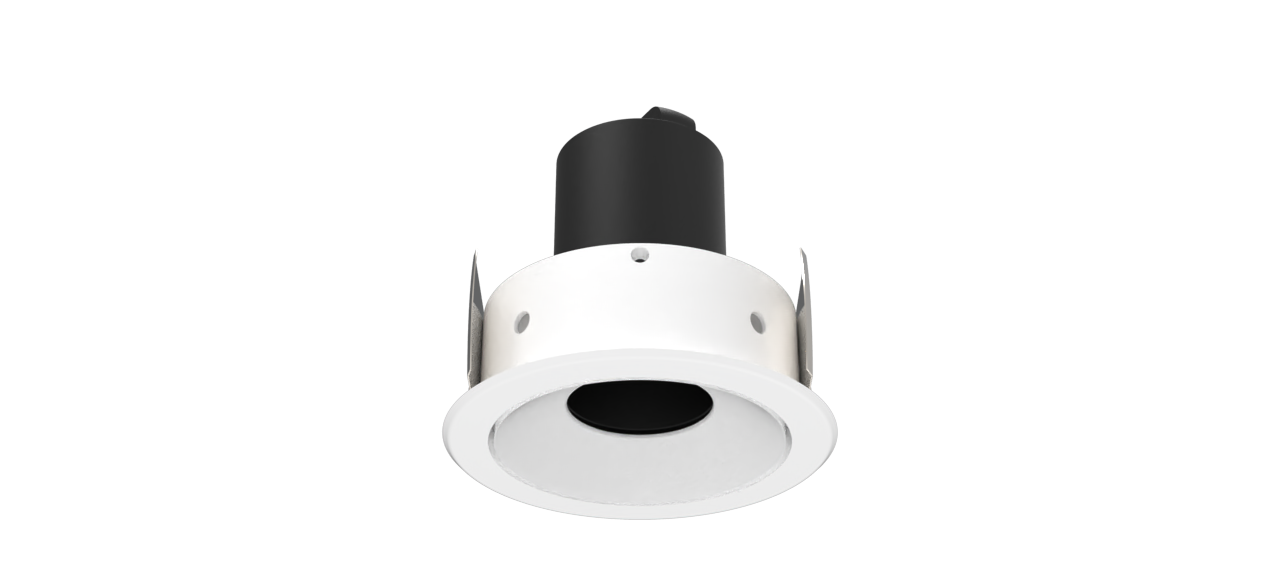

Mysta Trim
Description
Rotation 360°
Adjustable tilt 30°
Optional : Easy Swap system
Dimensions
Spotlight diameter : 42mm
External diameter : 90.5mm
Installation diameter : 74.5mm
Installation depth : 83.5mm
Beams & Performances
11° - 16° - 20° - 23° - 34° - 43°
300 to 800lm
1050 to 10 900cd
The other luminaires for Ceiling & Wall
Albedio
Aurore Wall-Mounted
Aurore Recessed
Aurore Staff
Brike
Comédia
Elis
Levana
Minifiled Recessed
MiniStaff

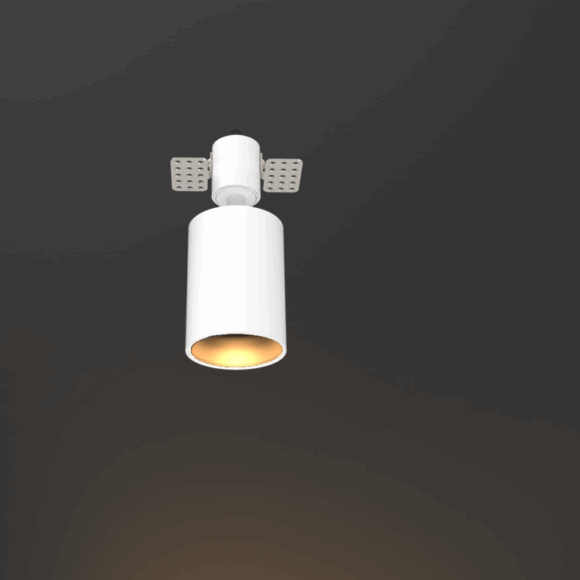

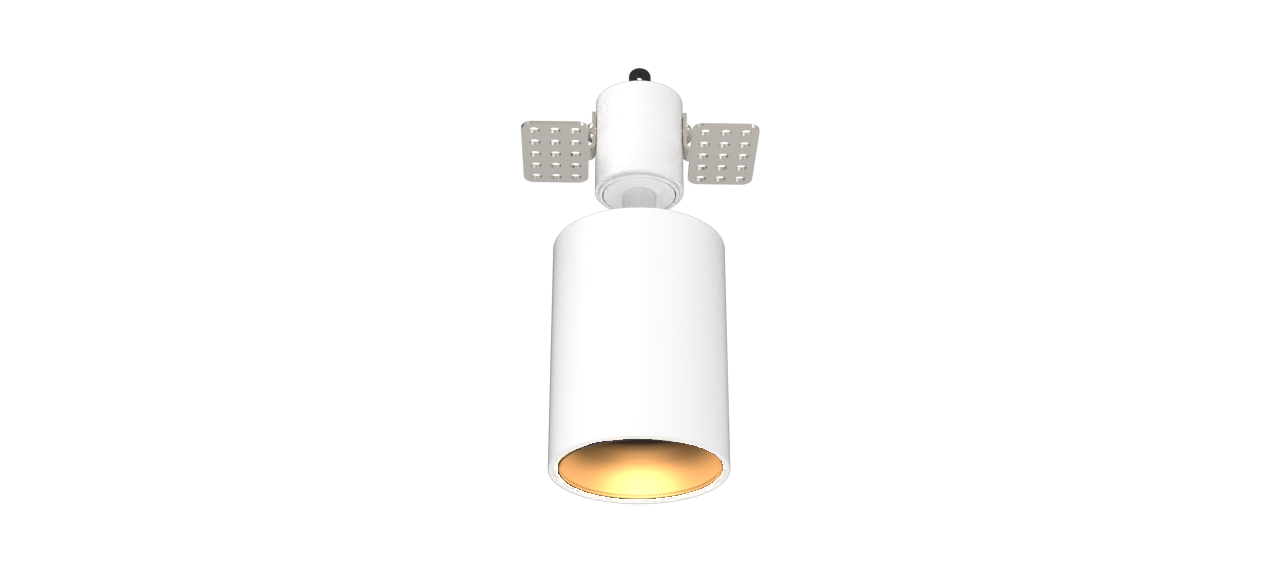

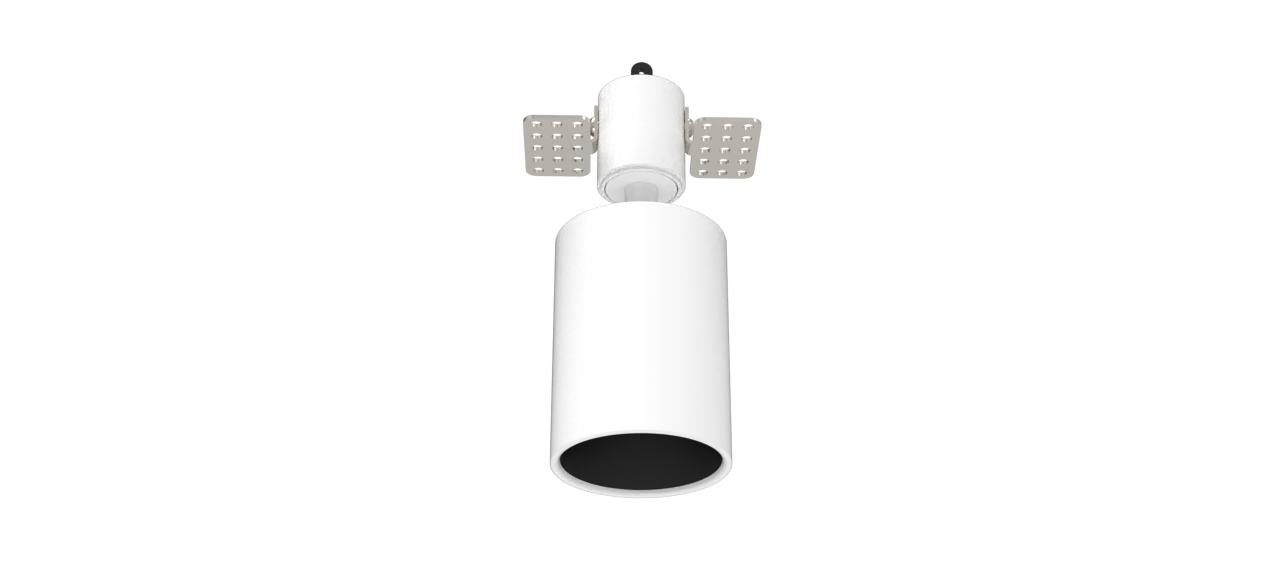

Mysta Plug
