MiniStaff
Two recessed low luminance spotlights in a staff block with brackets for fixing BA13
Indoor range
Ceiling & Wall
Colour temperature
2 LED 2700K - 3000K - 3500K - 4000K (Other upon request)
CRI & UGR
CRI 90 UGR < 15
Finishing
Raw finish gypsum board
IP
IP40
Electric class
III
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range MiniStaff
MiniStaff Duo Straight
Dimensions
Spotlights diameter : 27mm
Length : 130mm
Width : 80mm
Height : 45.5mm
Tilt
No tilt
Optical beams
10° - 20° - 40°
Luminous flux
110 lumen
Power supply
External constant current driver 700mA max
LED power
4W max.
MiniStaff Duo Tilted
Dimensions
Spots diameter : 27mm
Length : 130mm
Width : 80mm
Height : 52mm
Tilt
10° or 20° fixed tilt
Optical beams
10° - 20° - 40°
Luminous flux
110 lumen
Power supply
External constant current driver 700mA max
LED power
4W max.

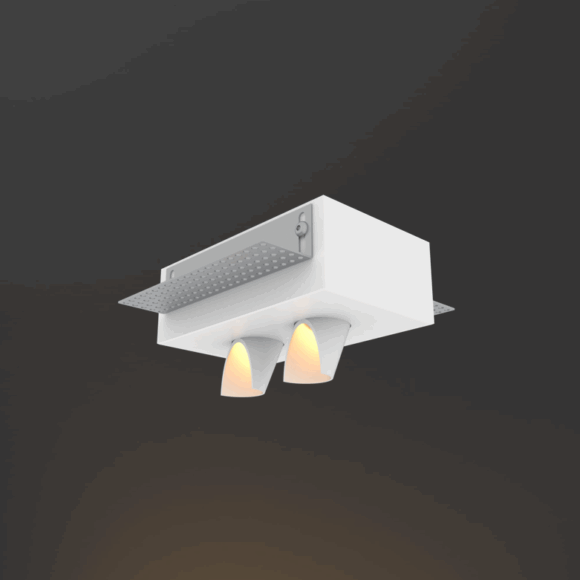

MiniStaff Duo Wall Washer
Dimensions
Spotlights diameter : 27mm
Length : 130mm
Width : 80mm
Height : 45mm
Tilt
25° fixed tilt
Optical beams
40°
Luminous flux
110 lumen
Power supply
External constant current driver 700mA max
LED power
4W max.
