MiniTrack
Luminaires on track for ambient & accent lighting MICRO, AURORE D22, V25 or UNDO spotlights
Indoor Range
Furniture & Showcase
Finish
Black anodized matt finish Natural anodized (other upon request)
Colour temperatures
2200K - 2700K – 3000K – 3500K - 4000K (other upon request)
CRI
CRI 90 - 95
Optical beam(s)
(see datasheet)
Power supply & LED Power
5A max. 24V 120W max. + 2 PWM channels
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
IP
20
Electric class
III
Download the documentation
Discover the whole range MiniTrack
MiniTrack Micro Simple / Low Luminance
Versions
Simple or Low Luminance
Dimensions
Diameter : 17mm
Length : 18mm (Simple)
Length : 24.5mm (L.L.)
Optical beams
16°- 20° - 40° - 65° - 17°x49°
LED power
1.7W max.

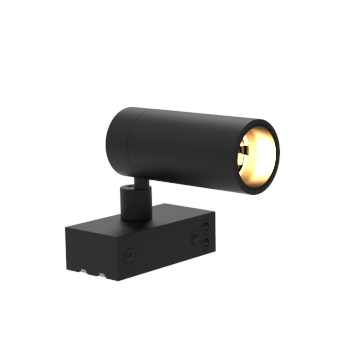

MiniTrack Aurore D22
Dimensions
Diameter : 22mm
Length : 50mm
Optical beams
10º - 15º - 20º - 25º - 40º - Elliptical
LED power
1.7W max.
MiniTrack V25
Dimensions
Diameter : 25mm
Length : 37mm
Optical beams
IRC 92 : 10° - 12° - 18° - 24° - 36° - 40° - 54º - 60° - Elliptical
IRC 95 : 15° - 17° - 25° - 31° - 36° - 40° - 57º - Elliptical
LED power
2.7W max.
MiniTrack UNDO Simple / Low Luminance
Versions
Simple or Low Luminance
Dimensions
Diameter : 39.5mm
Length :
37.1mm (Simple)
40.4mm (Simple + accessories)
52.1mm (Low Luminance)
55.4mm (Low Luminance + accessories)
Optical beams
11º - 17º - 20º - 25º - 30º - 40º - 60º - Asymetrical
LED power
8W max.
