Minifiled
Small recessed spotlight for accent lighting
Indoor range
Furniture & Showcase
CRI
CRI 90
Optics/Diffusers
25º - 30° - 35º - 40°
IP
IP20
Colour temperature
2700K - 3000K - 3500K - 4000K (other upon request)
Finishing
Matt finish black anodized aluminium
Electric class
III
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation Discover the whole range Minifiled

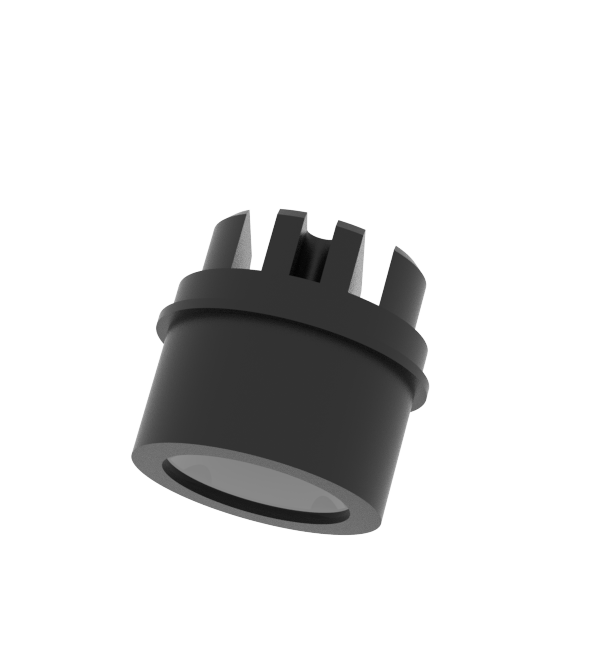

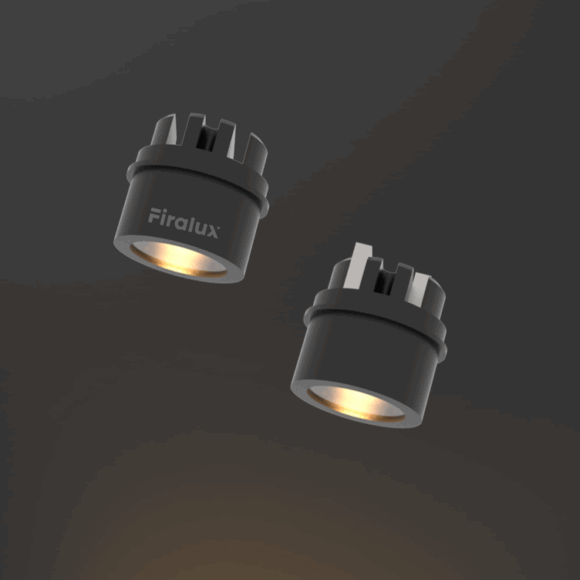

Minifiled simple version
Dimensions
Length : 25mm
Diameter : 24.6mm
Net weight
0.025 kg
Luminous flux
1 LED : 80 lm
2 LED : 160 lm
Power supply
700mA max constant current driver
LED power
1W (1 LED) - 2W (2 LED)

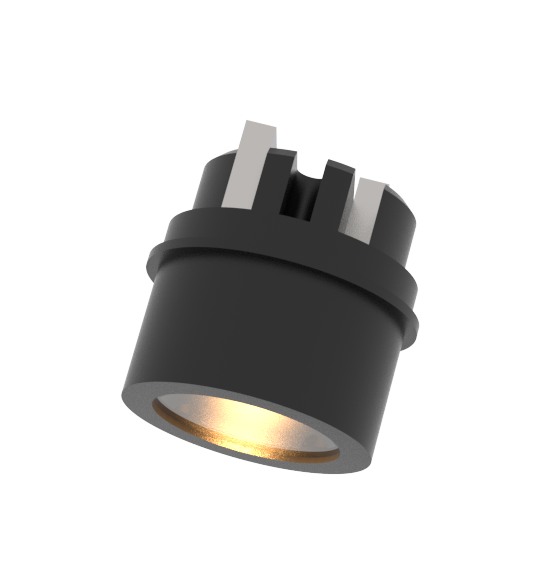

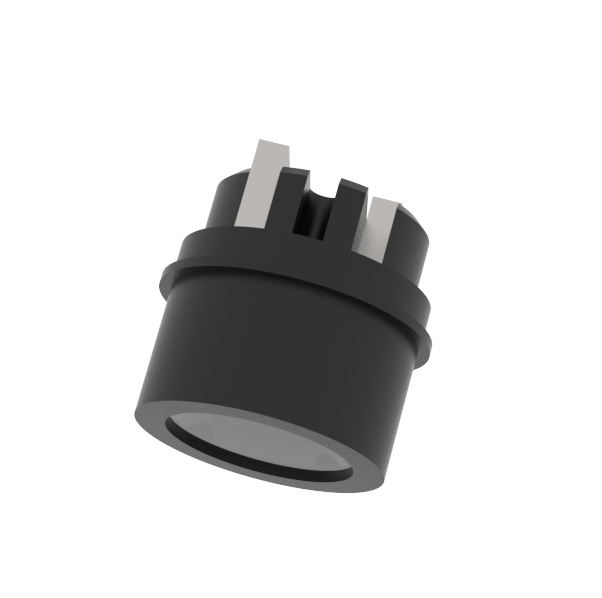

Minifiled simple magnetic version
Dimensions
Length : 27.5mm
Diameter : 25mm
Net weight
0.25 kg
Luminous flux
1 LED : 80 lm
2 LED : 160 lm
Power supply
350mA – 700mA max constant current driver
LED power
1W (1 LED) – 2W (2 LED)

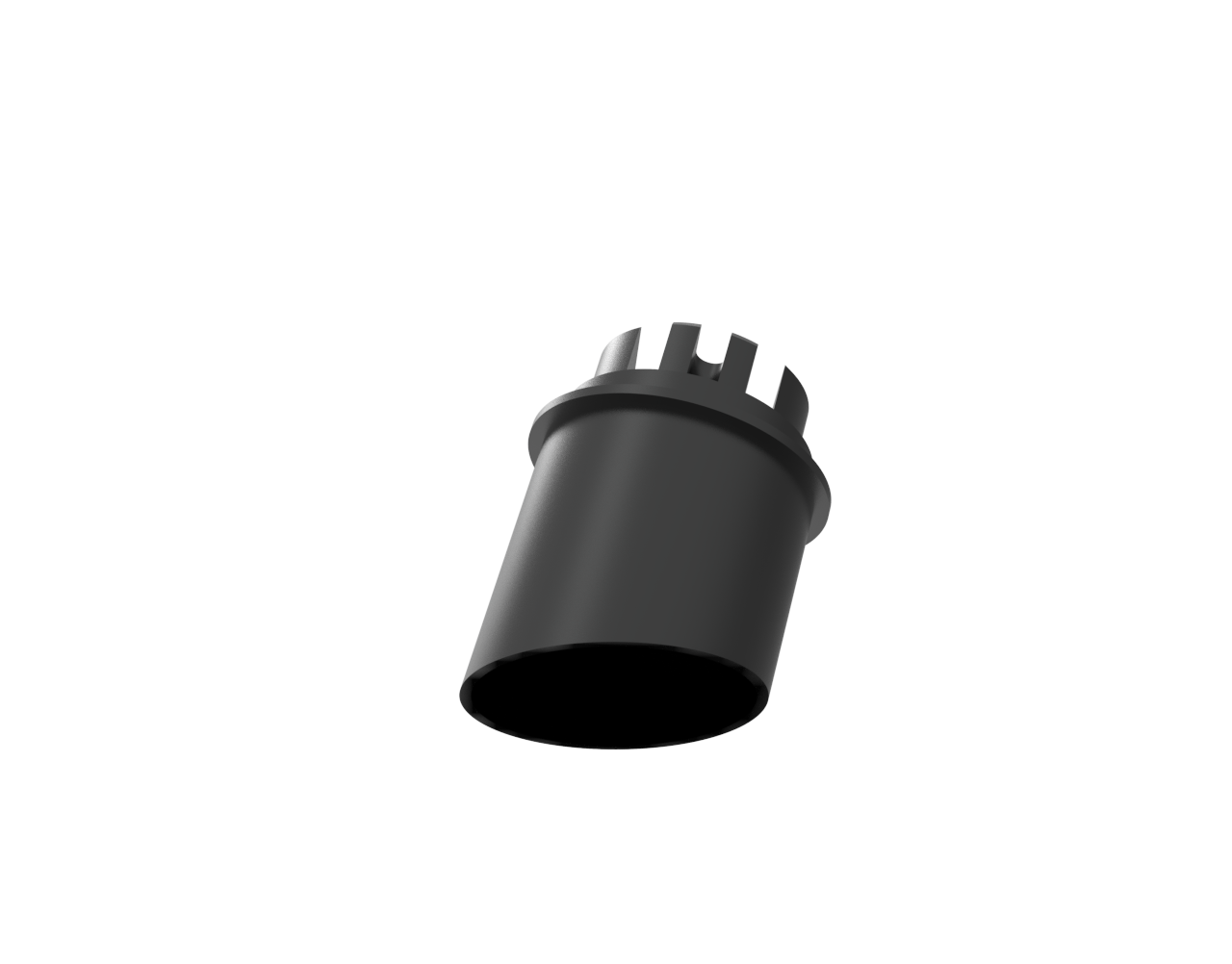

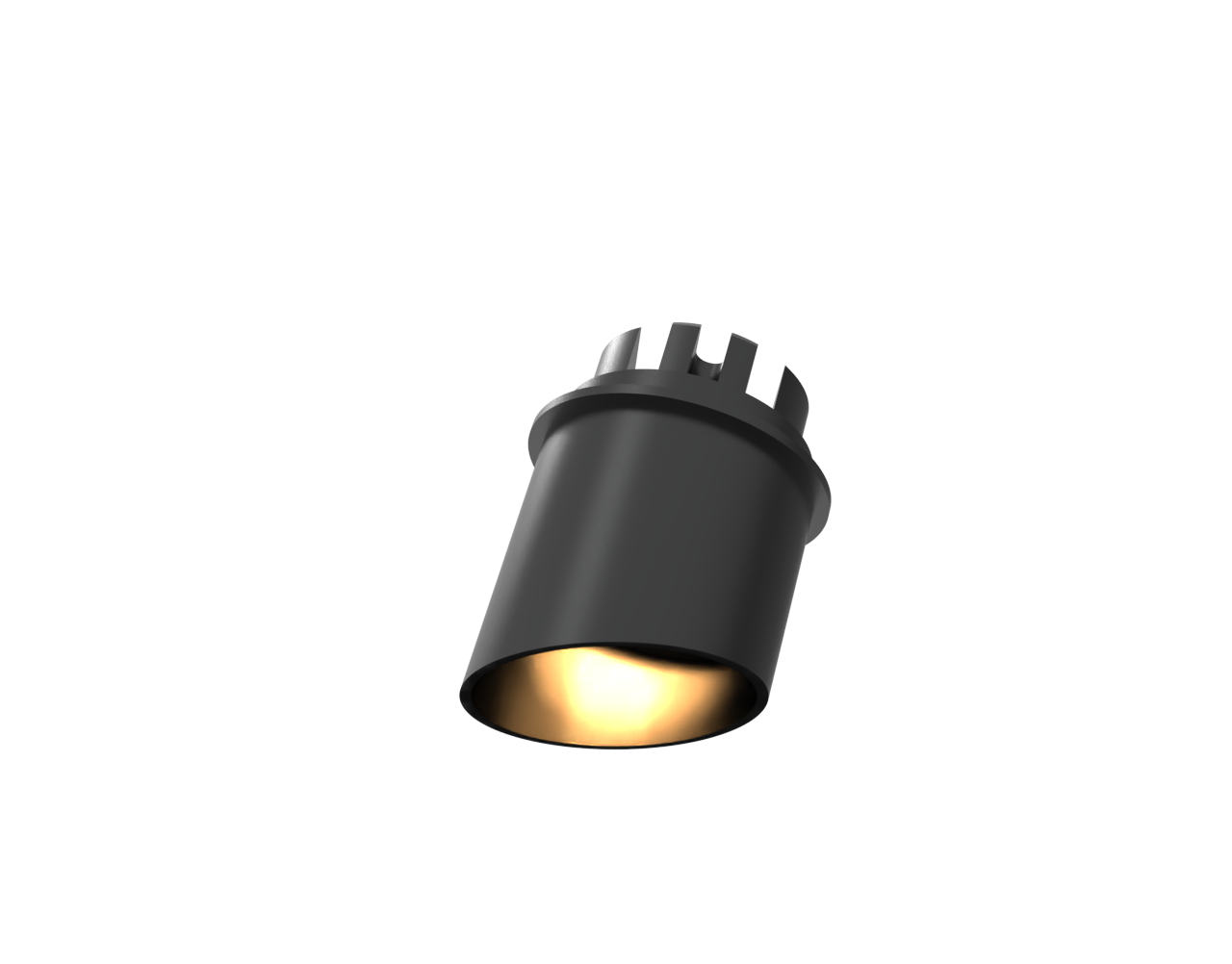

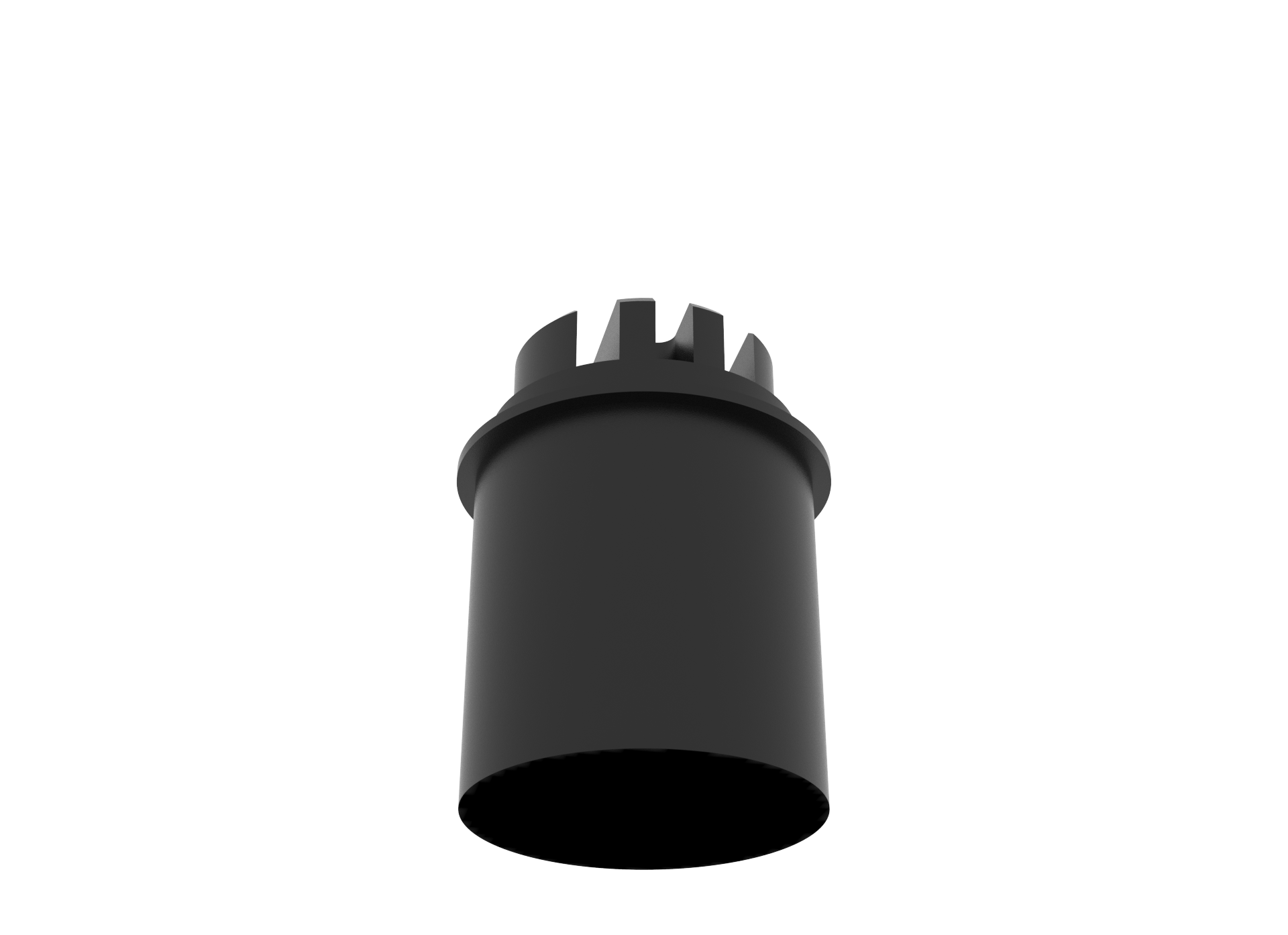

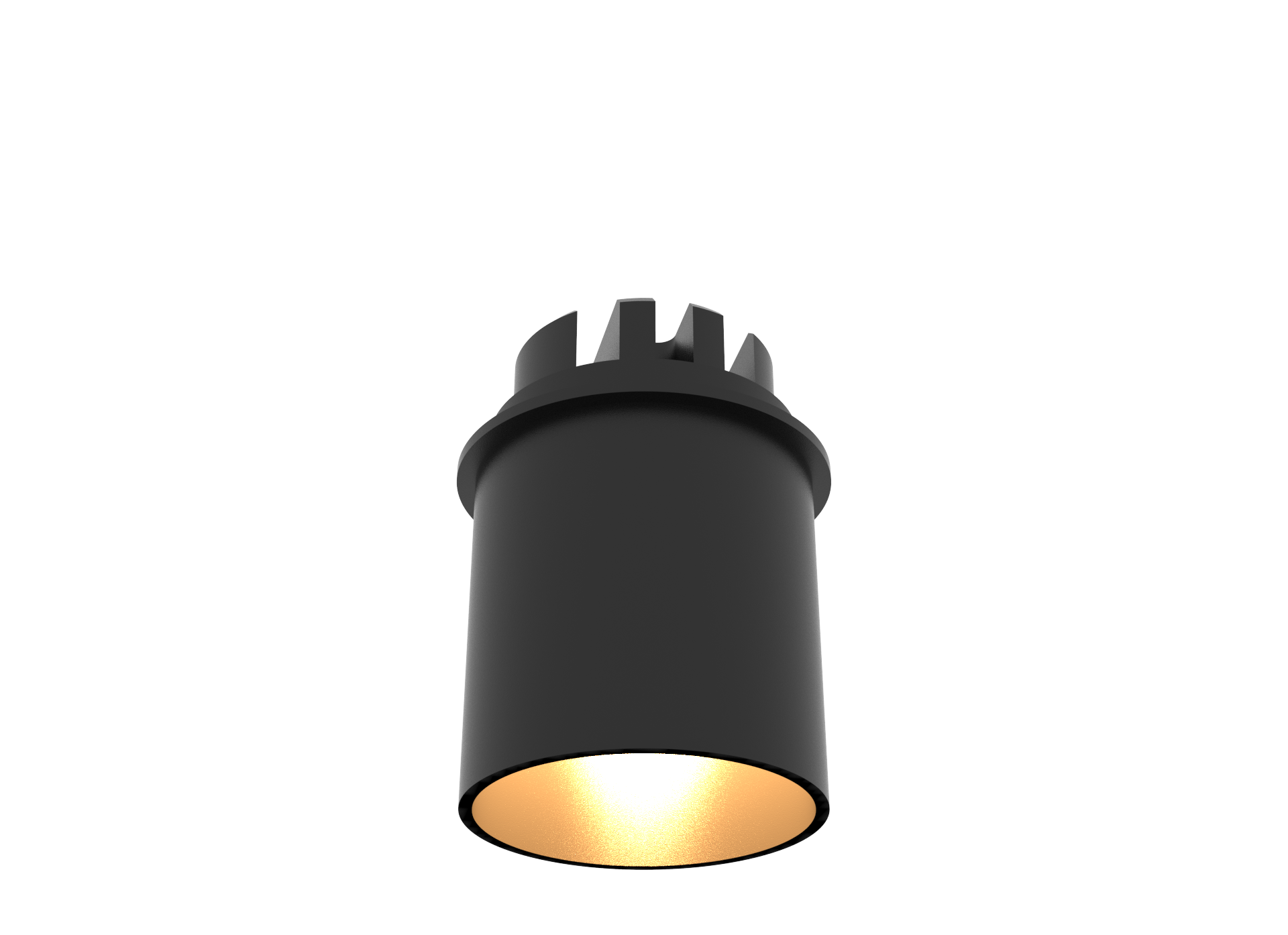

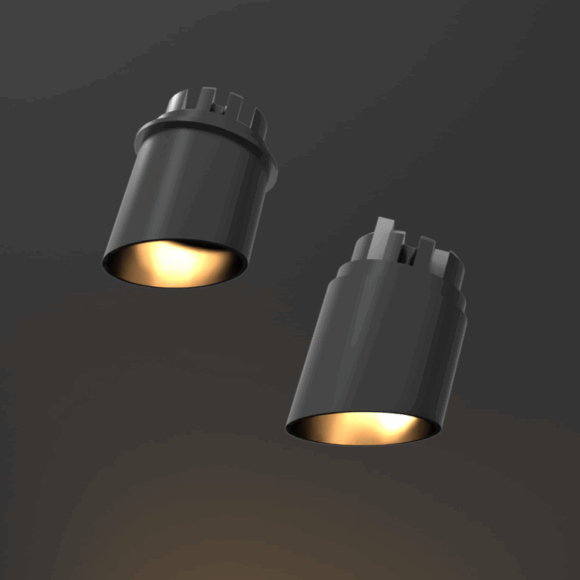

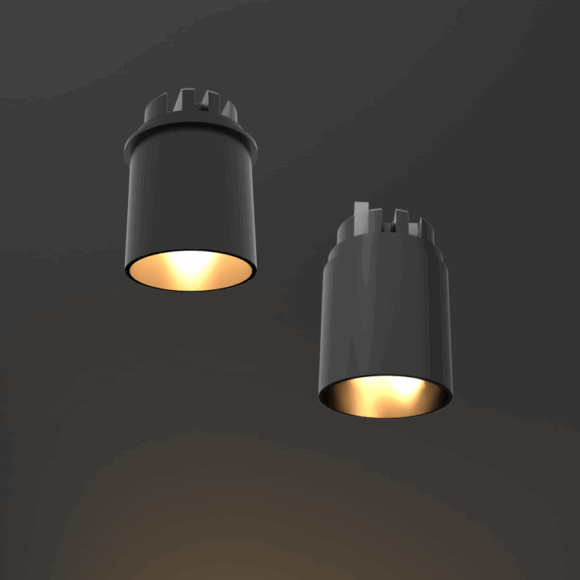

Minifiled low luminance version
Description
Low luminance straight version or inclined (3°, 5°, 7°, 10°, 15° ou 20°)
Dimensions
Length : 34mm to 39mm with low luminance version
Diameter : 27mm
Net weight
0.025 kg
Luminous flux
1 LED : 80 lm
2 LED : 160 lm
Power supply
350mA – 700mA max constant current driver
LED power
1W (1 LED) – 2W (2 LED)

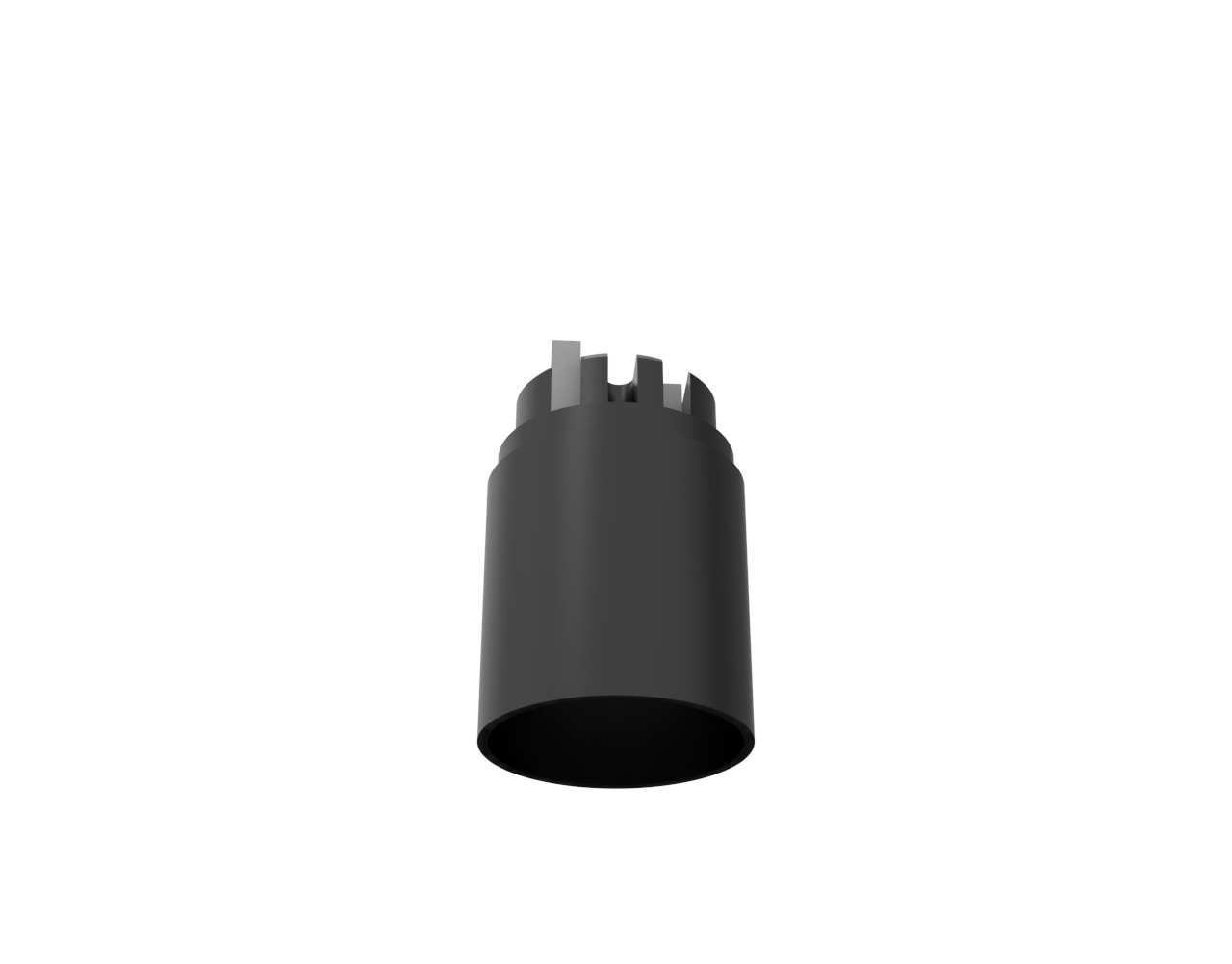

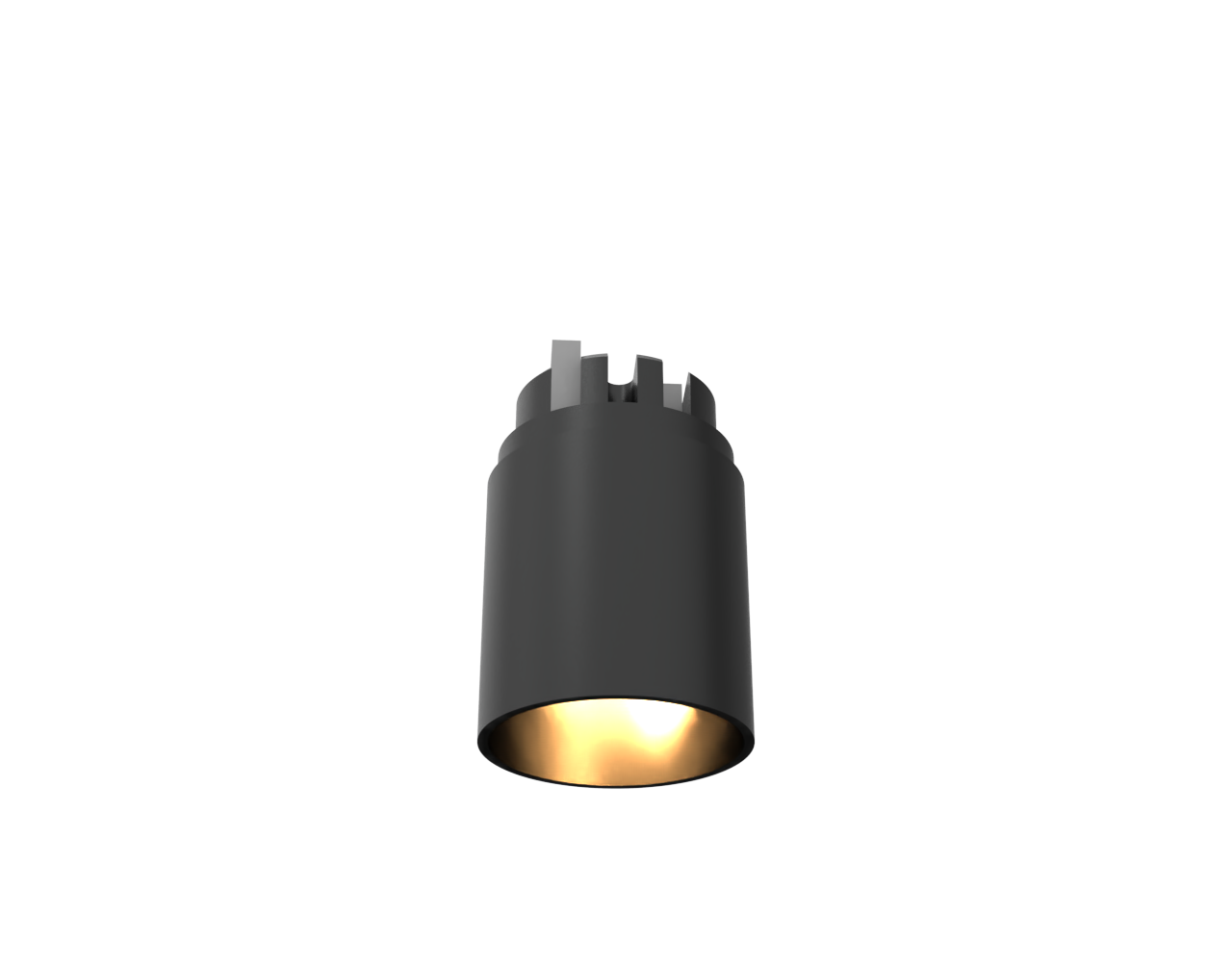

Minifiled low luminance magnetic version
Description
Low luminance straight version or inclined (3°, 5°, 7°, 10°, 15° ou 20°)
Dimensions
Length : 37mm to 42mm with low luminance magnetic version
Diameter : 27mm
Net weigth
0.025 kg
Luminous flux
1 LED : 80 lm
2 LED : 160 lm
Power supply
700mA max constant current driver
LED power
1W (1 LED) – 2W (2 LED)
