Microfiled
Miniature recessed spotlight for accent lighting
Indoor range
Furniture & Showcase
CRI
CRI 92
R9>80
Optics/Diffusers
16°- 20° - 40° - 65° - 17°x49°
IP
IP40
Colour temperature
1 LED : 2700K - 3000K - 3500K - 4000K – 5000K
Finishing
Matt finish black anodized aluminium
Electric class
III
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation Discover the whole range Microfiled

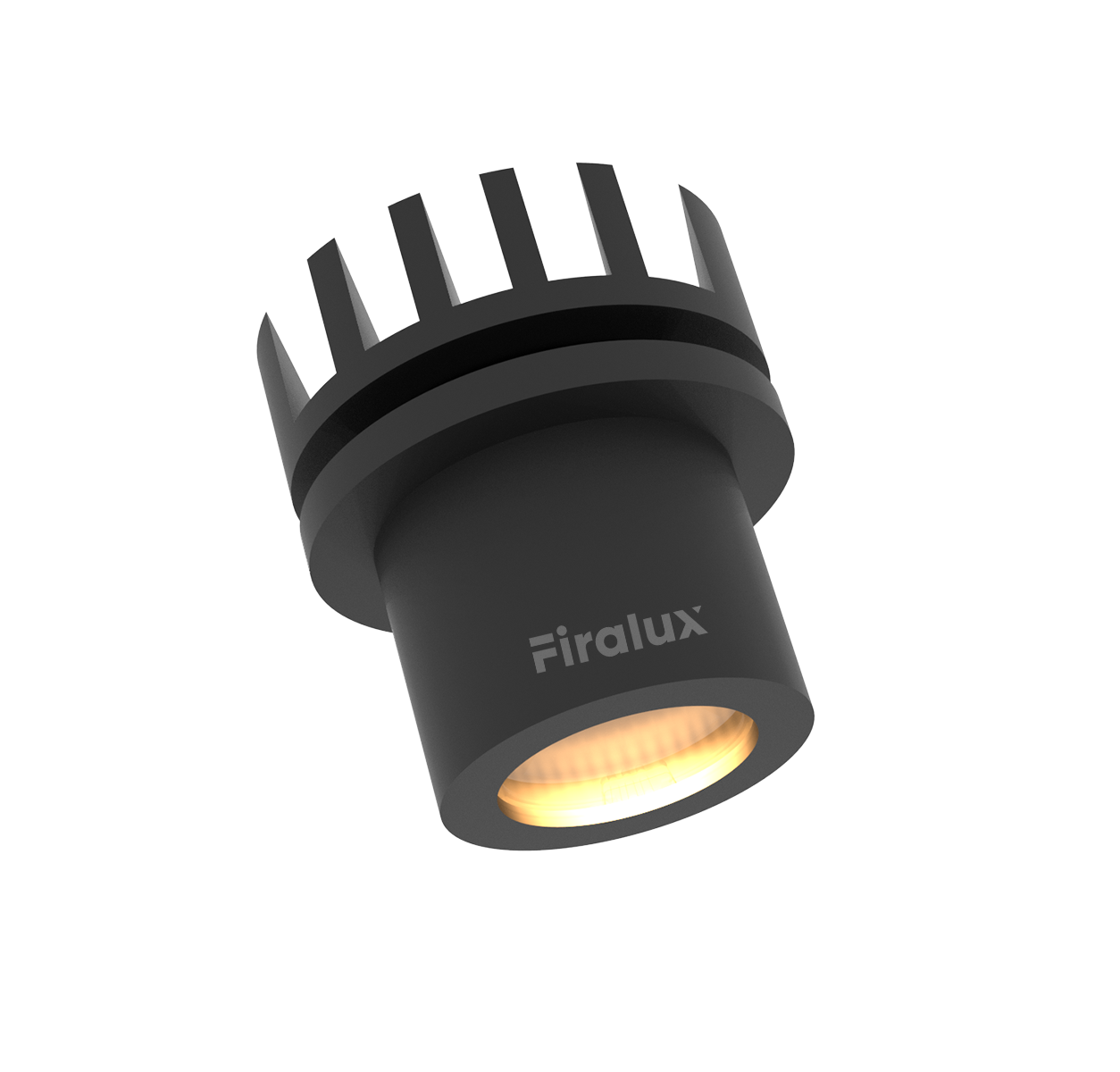

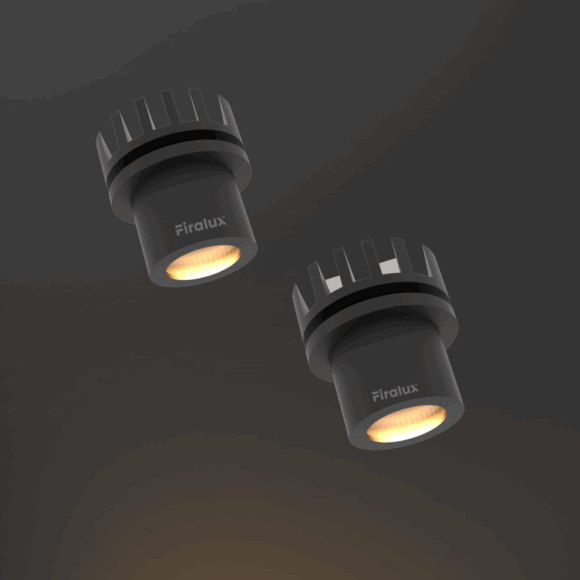

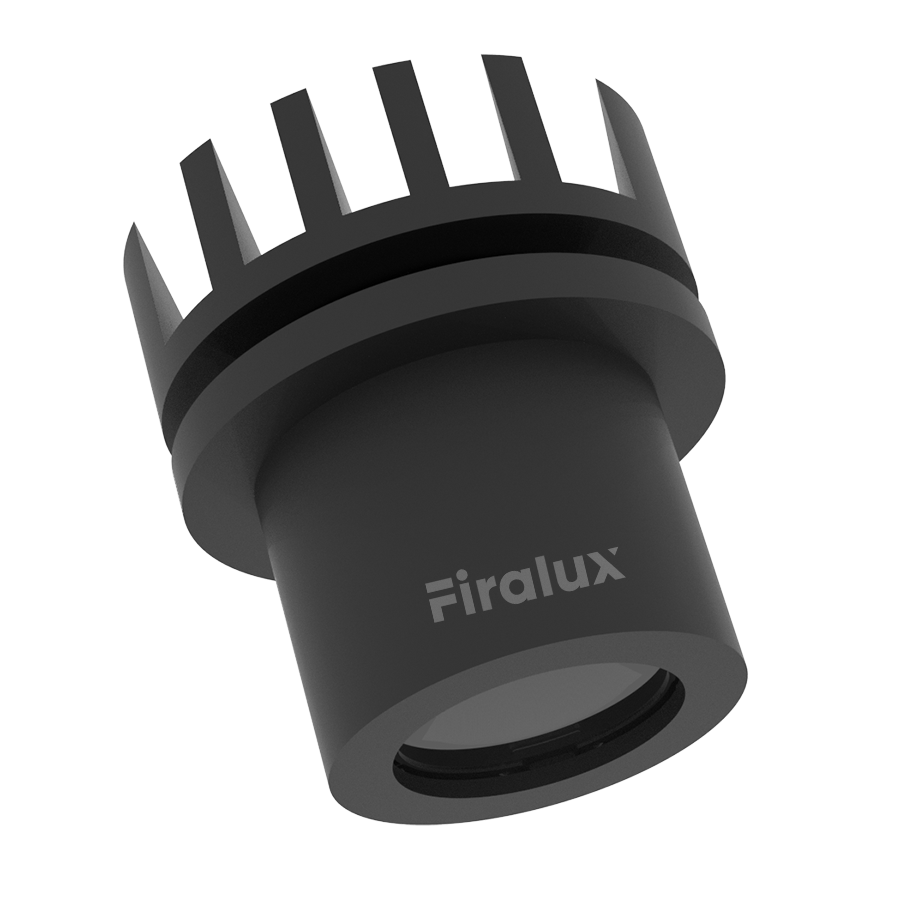

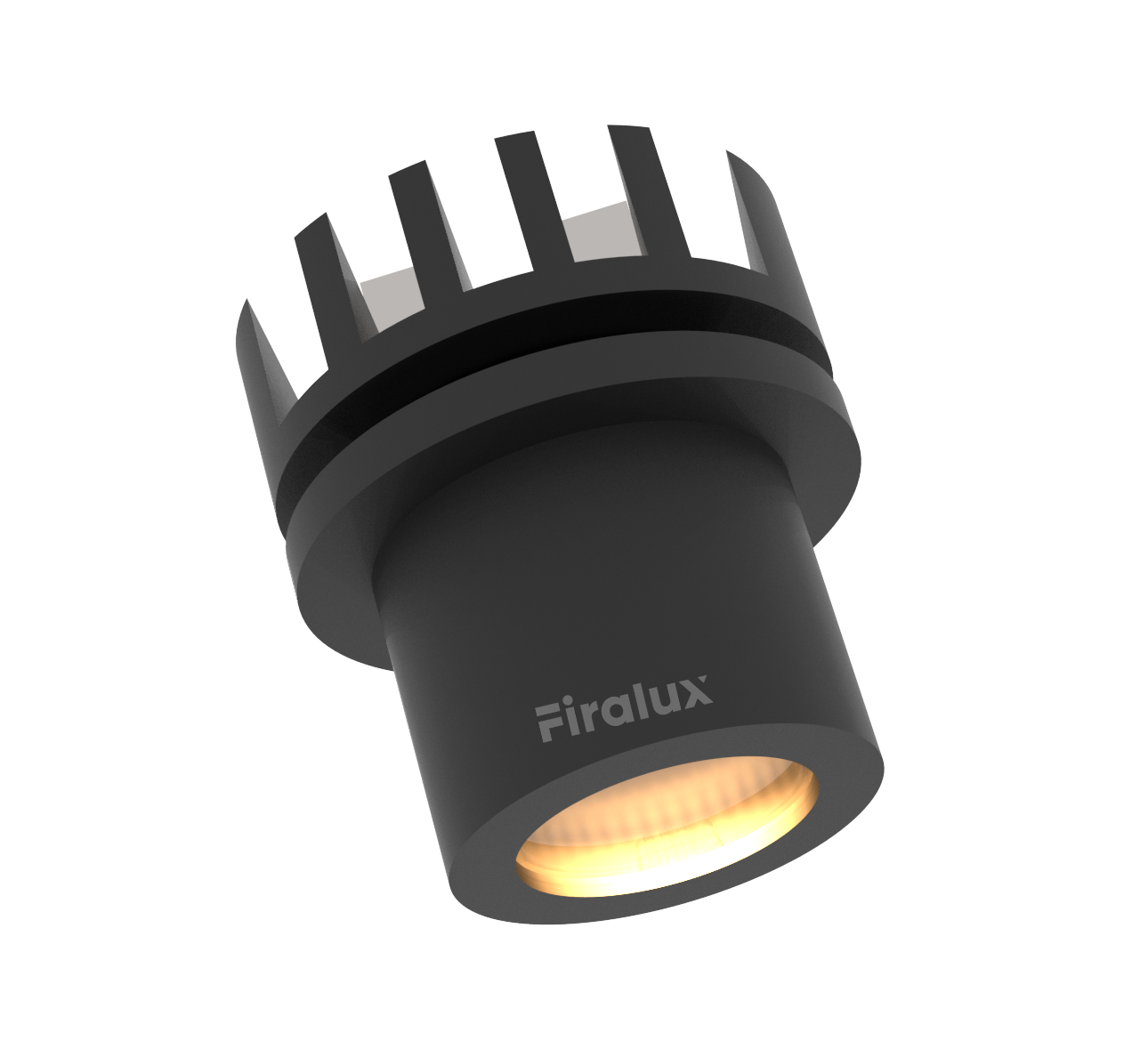

Microfiled standard version
Dimensions
Length : 18mm
Diameter : 13mm
Net weight
0.020kg
Power supply
≤ 500mA constant current driver
LED power
1.7W to 500mA max

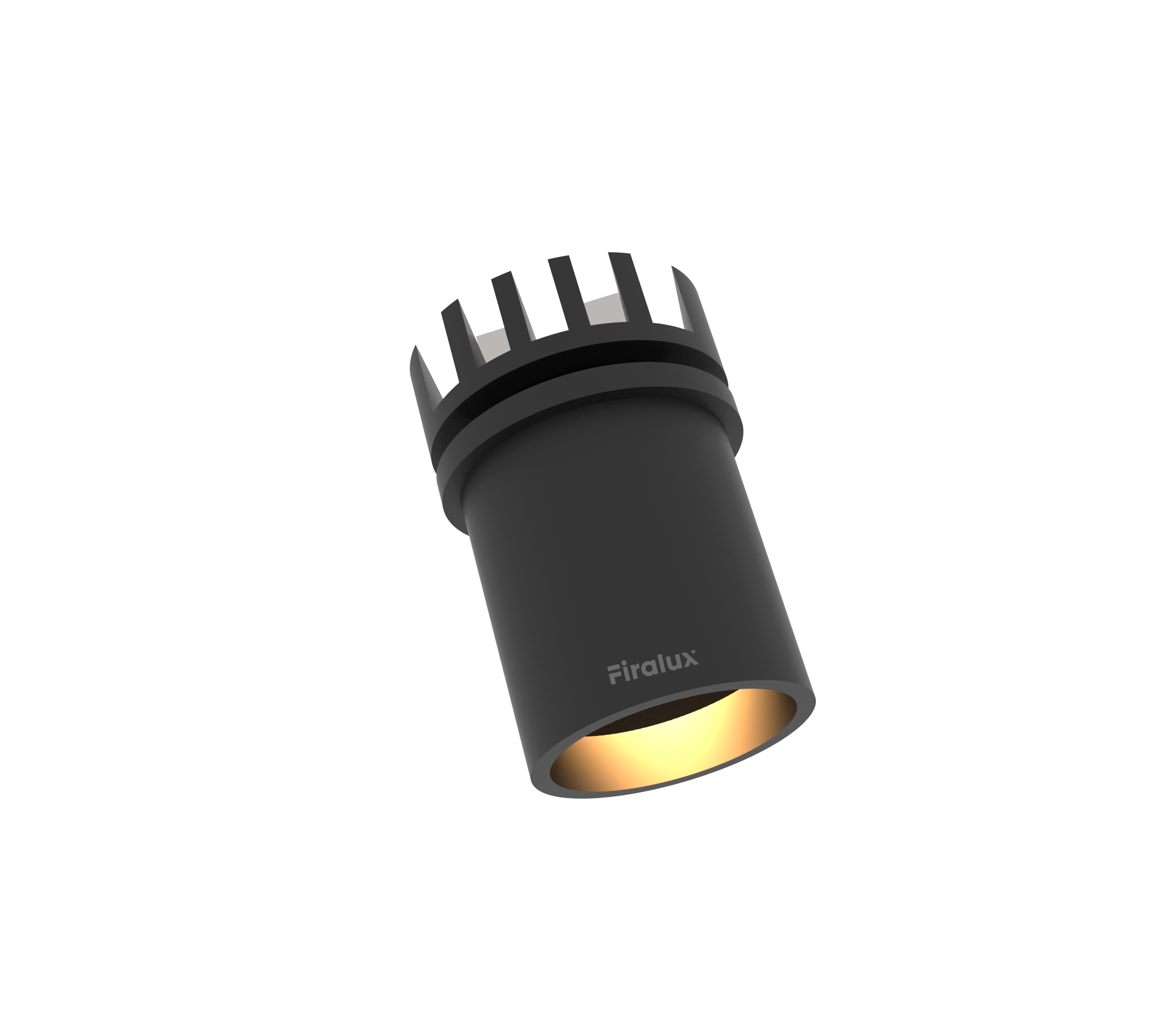

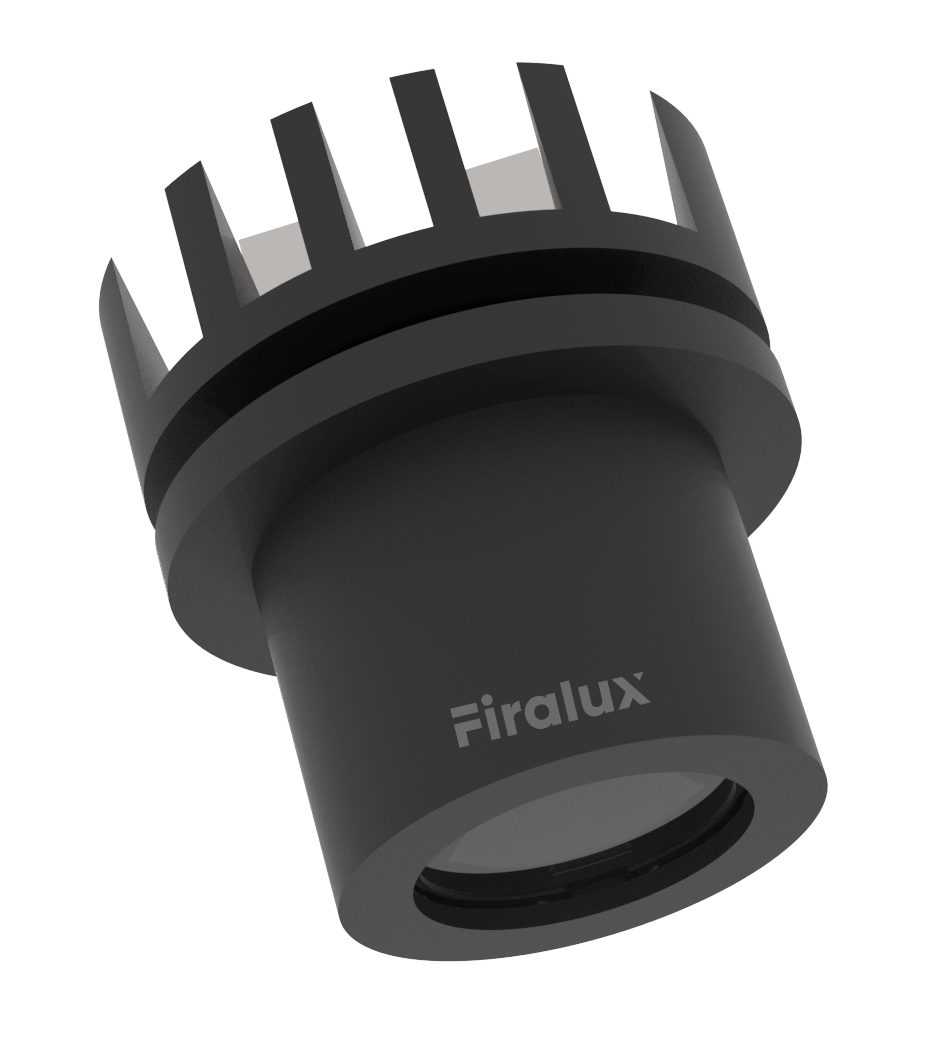

Microfiled standard magnetic version
Dimensions
Length : 19mm
Diameter : 13mm
Net weight
0.20 kg
Power supply
≤ 500mA constant current driver
LED power
1.7W to 500mA max

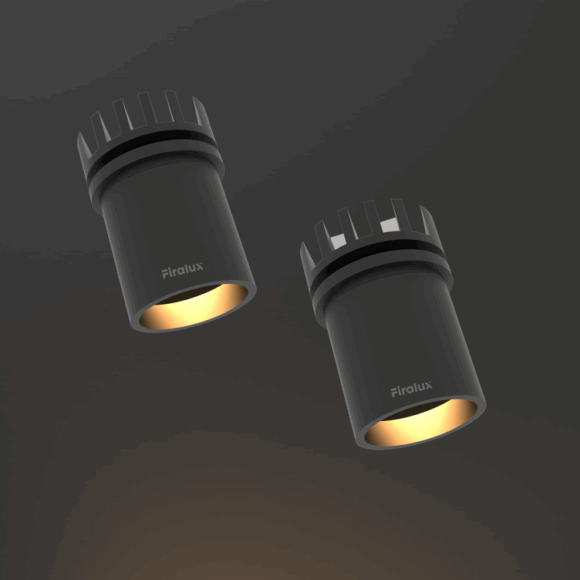

Microfiled low luminance version
Dimensions
Length : 25mm
Diameter : 15mm
Net weight
0.020 kg
Power supply
≤ 500mA constant current driver
LED power
1.7 W to 500mA max
Microfiled low luminance magnetic version
Dimensions
Length : 25mm
Diameter : 15mm
Net weight
0.20 kg
Power supply
≤ 500mA constant current driver
LED power
1.7W to 500mA max
Microfiled Patella standard
Dimensions
Length : 28mm
Diameter : 12.6mm
Net weight
0.030 kg
Connection
≤ 700mA driver courant constant
LED power
2W to 700mA max
Microfiled Patella low luminance version
Dimensions
Length : 34.5mm
Diameter : 12.6mm
Net weight
0.030kg
Connection
≤ 700mA constant current driver
LED power
2W to 700mA max
