Nano
LED spotlight for accent lighting
Indoor range
Furniture & Showcase
Description
Supplied in simple version or with a low luminance tube
Finishing
Blacck matt finish anodized aluminium
Colour temperature
CRI 92 / R9>80 2700K - 3000K - 3500K - 4000K – 5000K CRI 80 : 2200K
Optics/Diffusers
16° - 23° - 25° - 33° - 37° - 58° - 69° - 78° 17°x49° (Simple) 16°x40° (Low Luminance)
Power supply
350mA or 500mA max. external constant current driver
Electric class
III
IP
IP20
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Nano

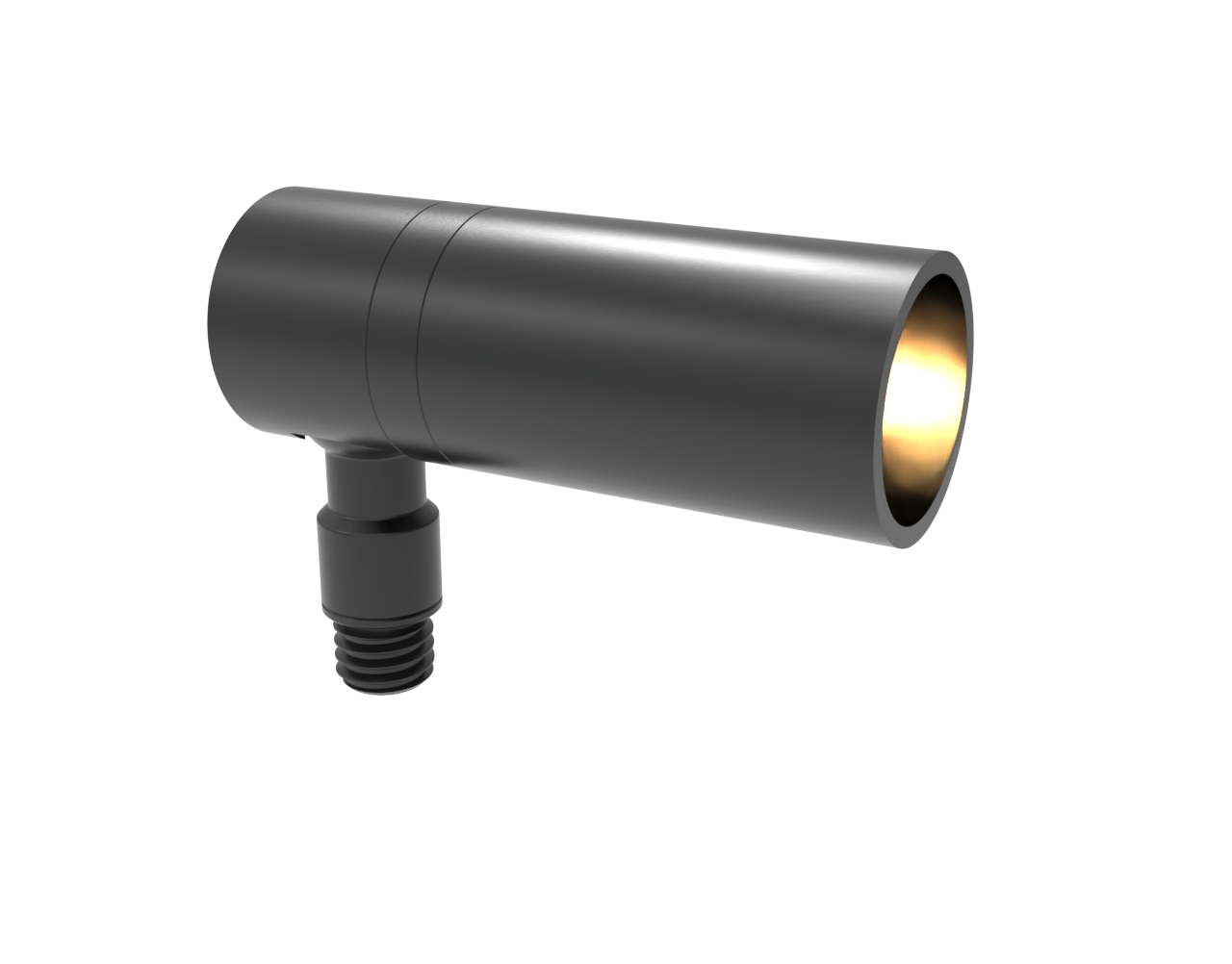

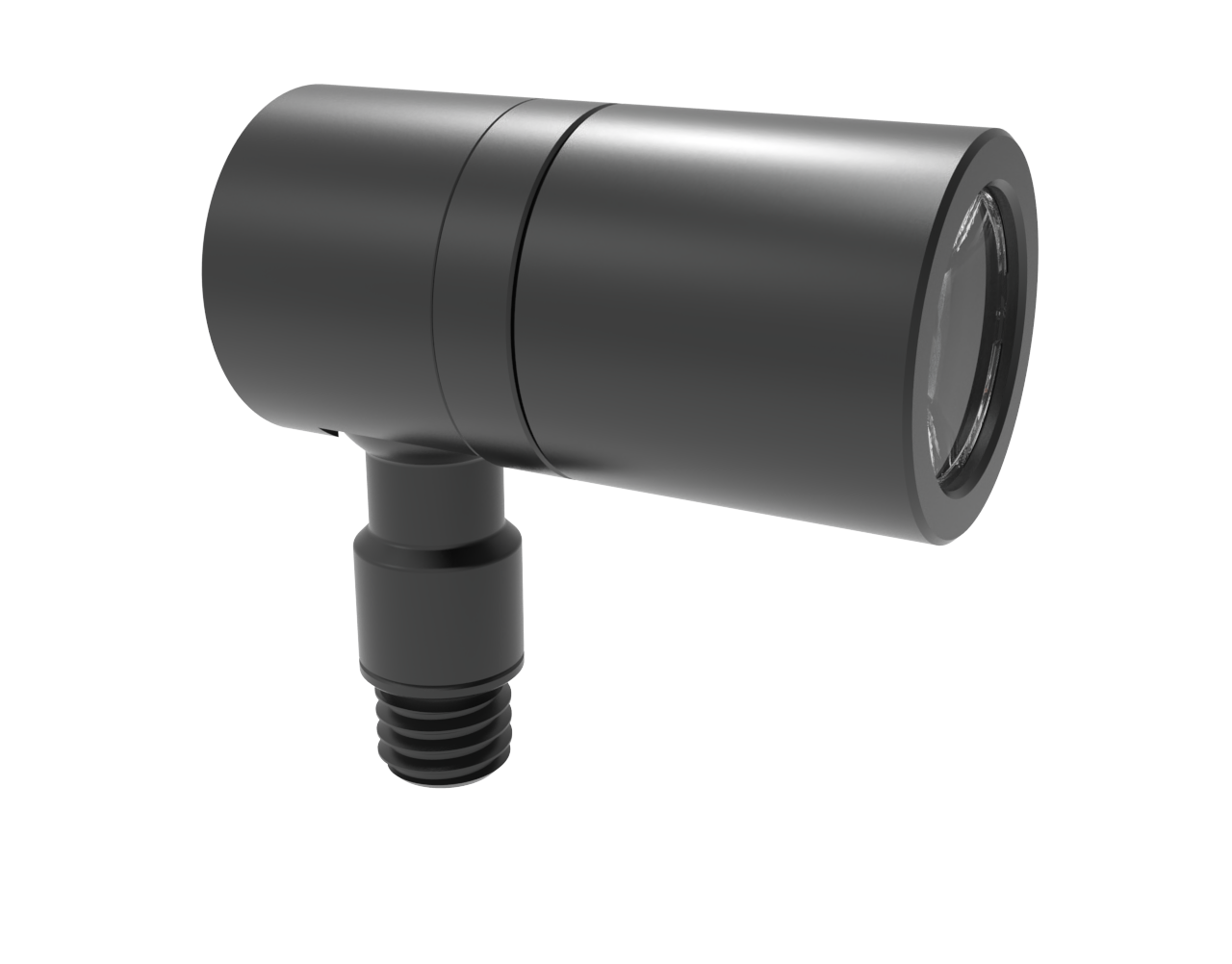

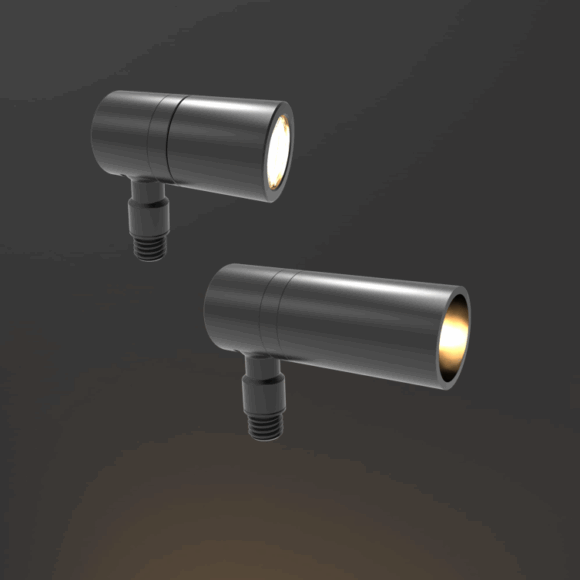

NANO12 Threaded Rod
Description
Orientation 350°
Adjustable tilt 109°
Dimensions
Spotlight diameter : 12mm
Spotlight length :
24mm (Simple)
32mm (Low Luminance)
Max. height - fixing device included :
31mm (Simple)
39mm (Low Luminance)
Fixing device height : 4mm

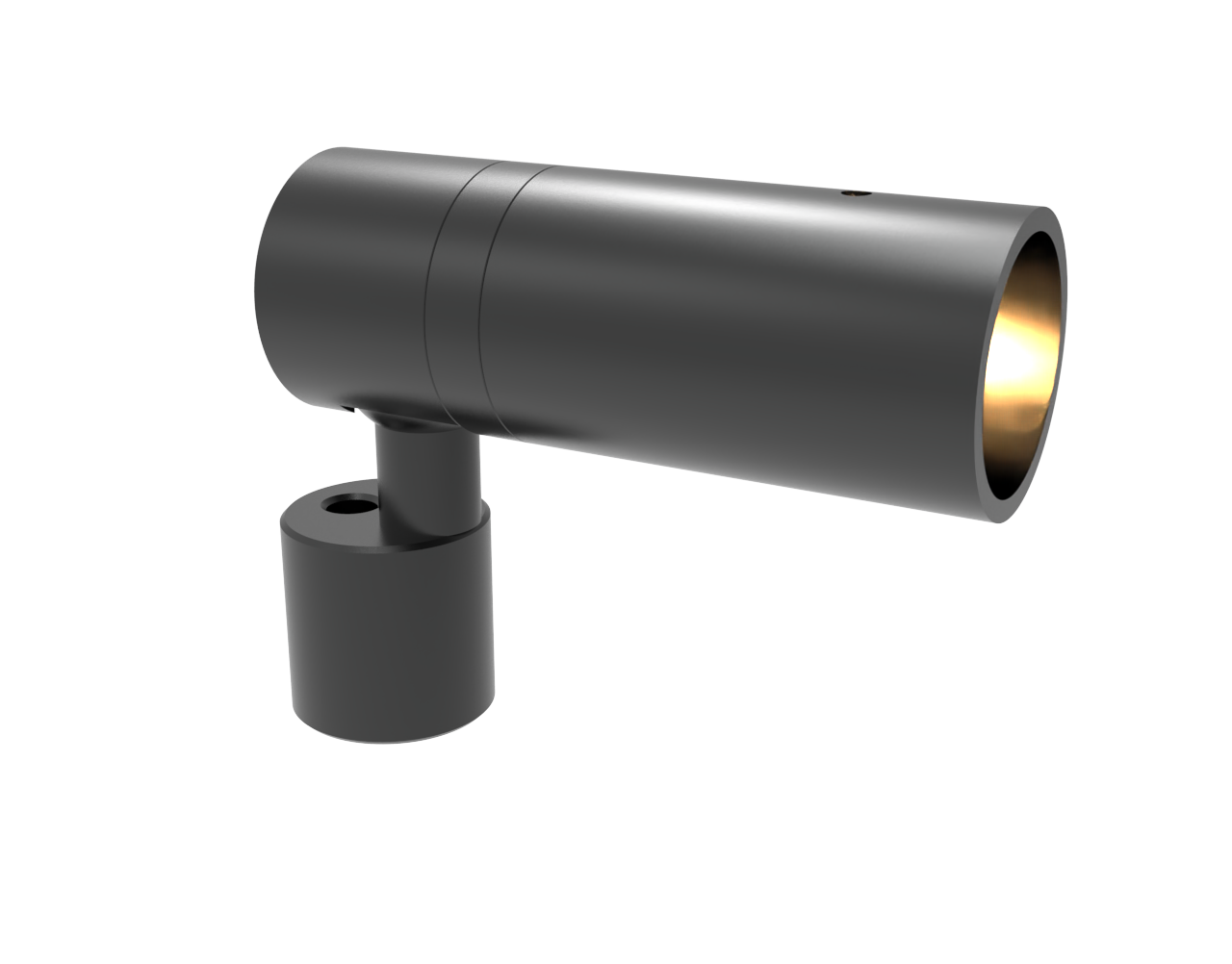

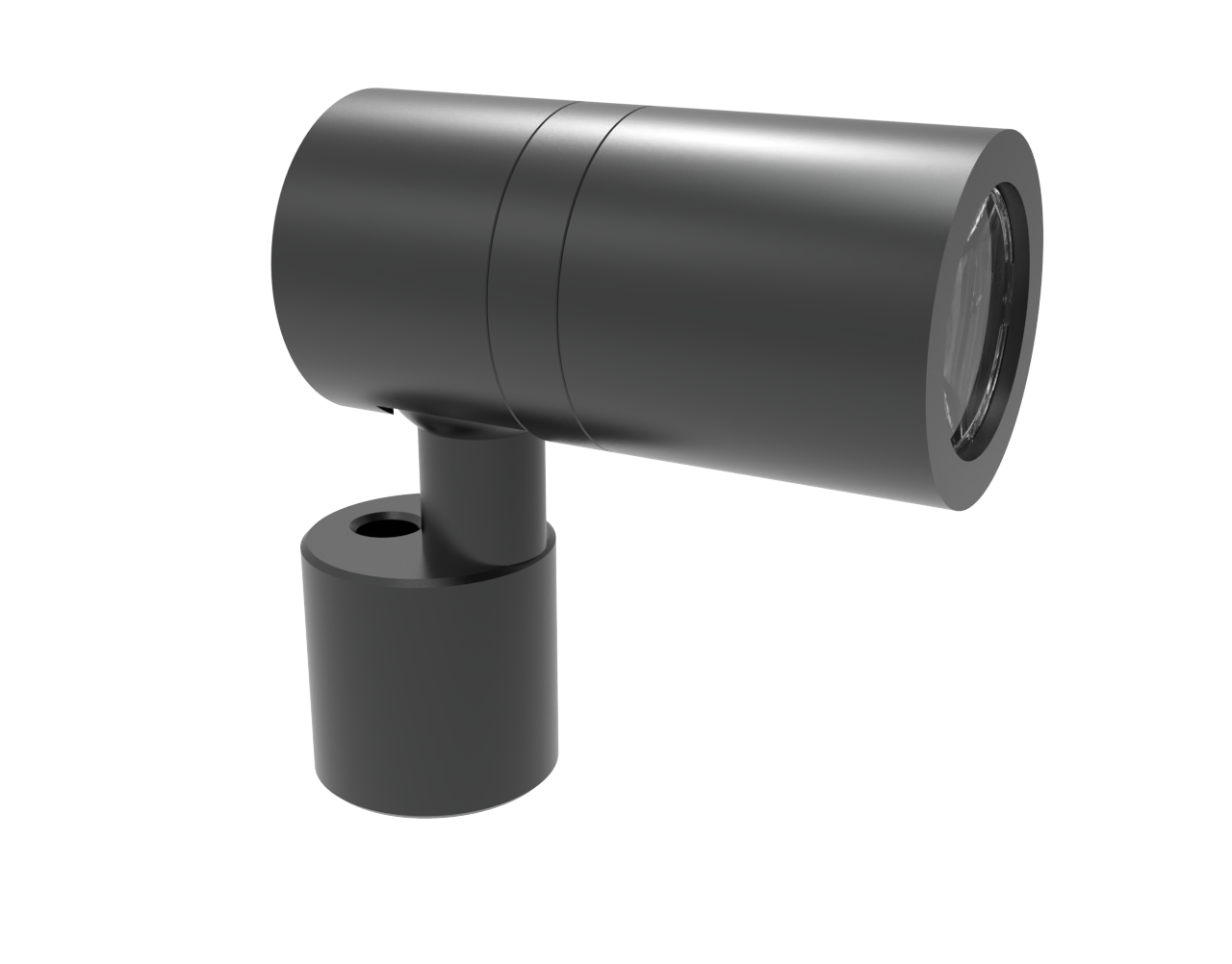

NANO12 Holder
Description
Orientation 350°
Adjustable tilt 109°
Dimensions
Spotlight diameter : 12mm
Total length - holder included :
27mm (Simple)
35mm (Low Luminance)
Max. height - holder included :
37mm (Simple)
46mm (Low Luminance)
Holder diameter : 10mm

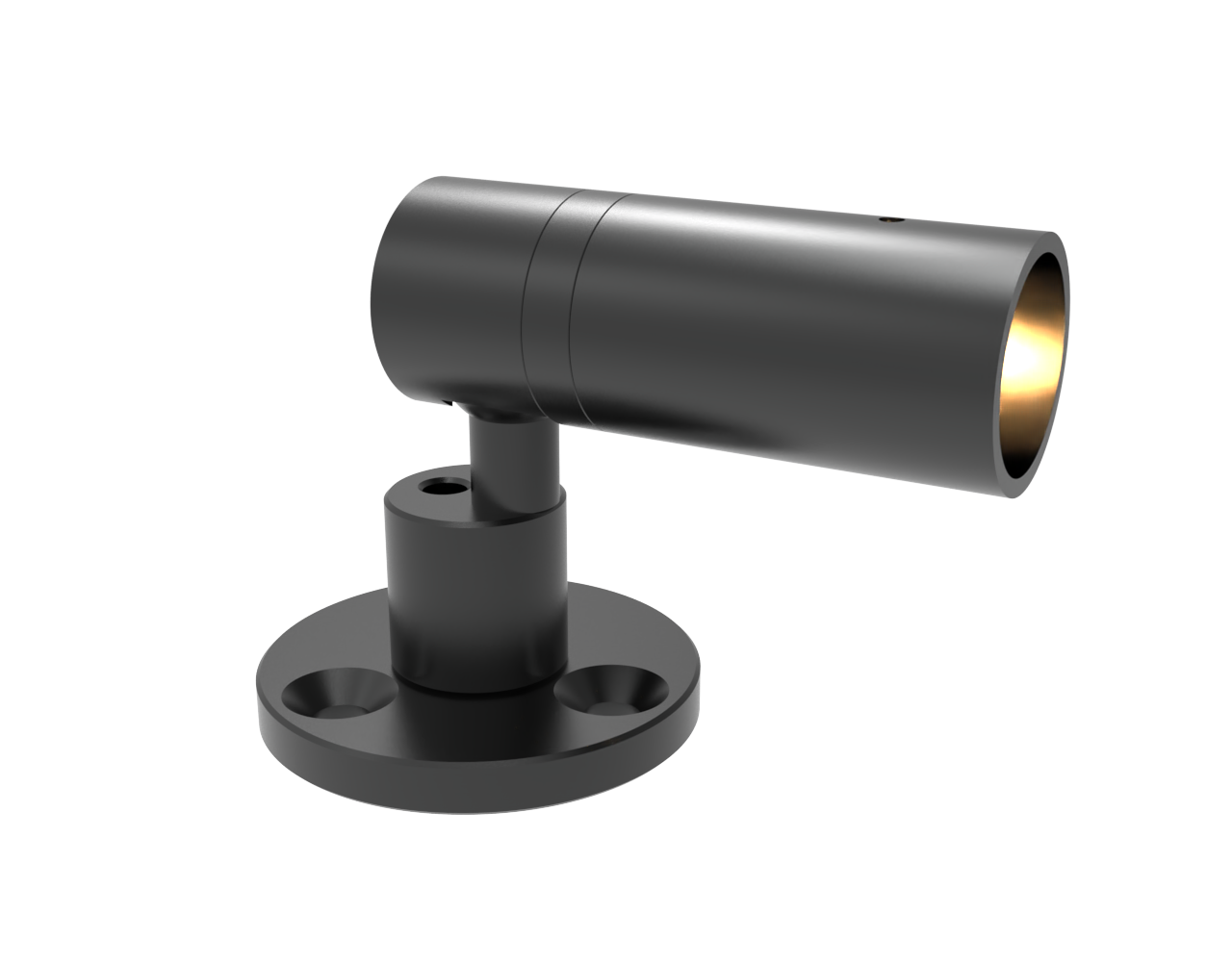

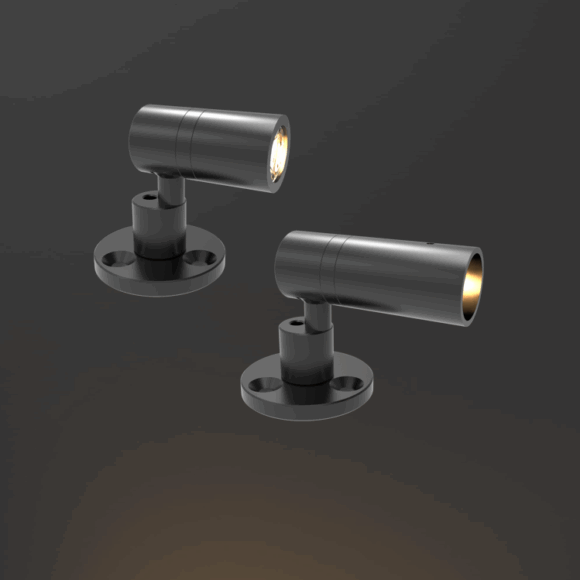

NANO12 On-Plate
Description
Orientation 350°
Inclinaison 109°
Dimensions
Spotlight diameter : 12mm
Total length - plate included :
34mm (Simple)
43mm (Low Luminance)
Max. height - plate included :
40mm (Simple)
49mm (Low Luminance)
Plate diameter : 25mm

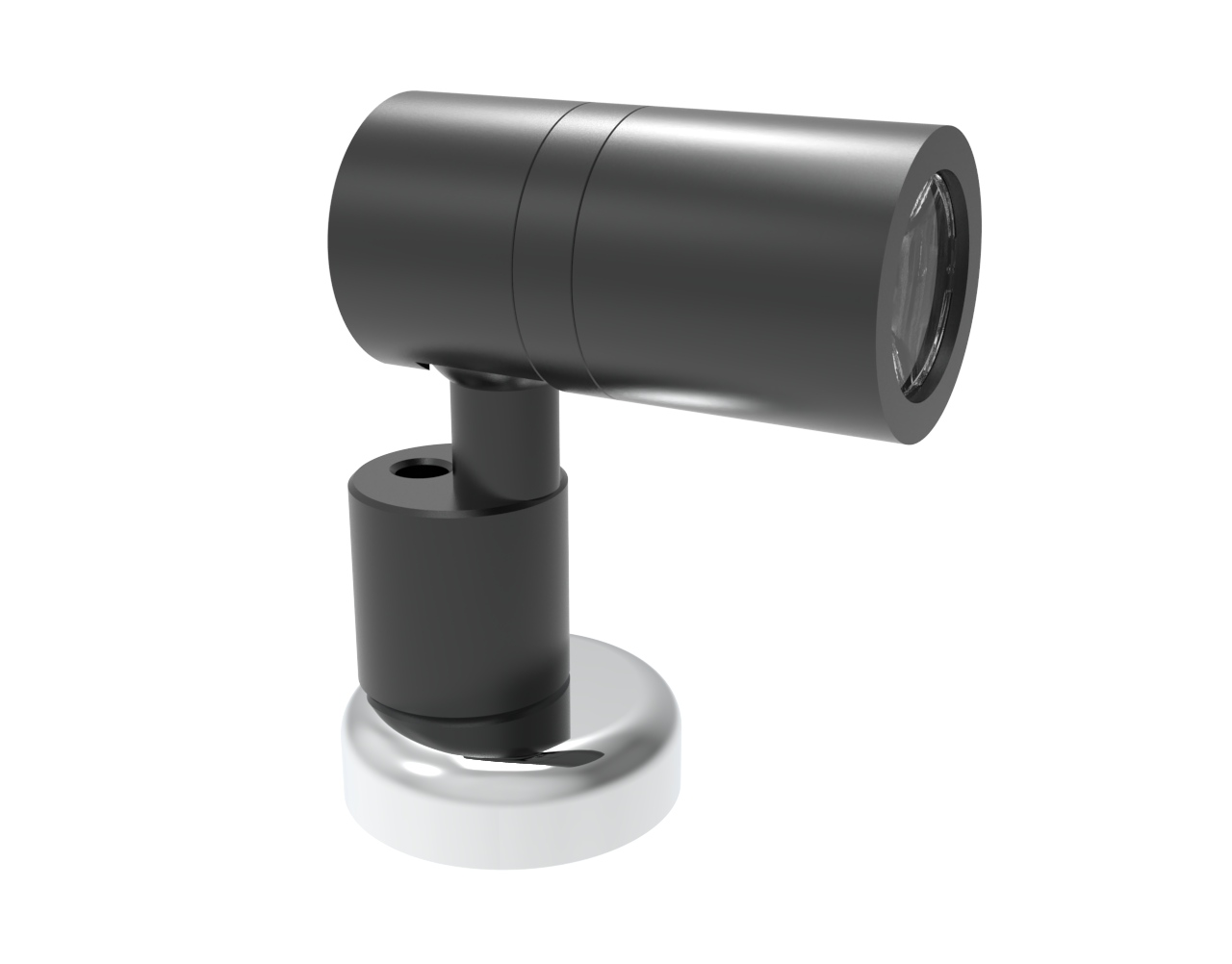

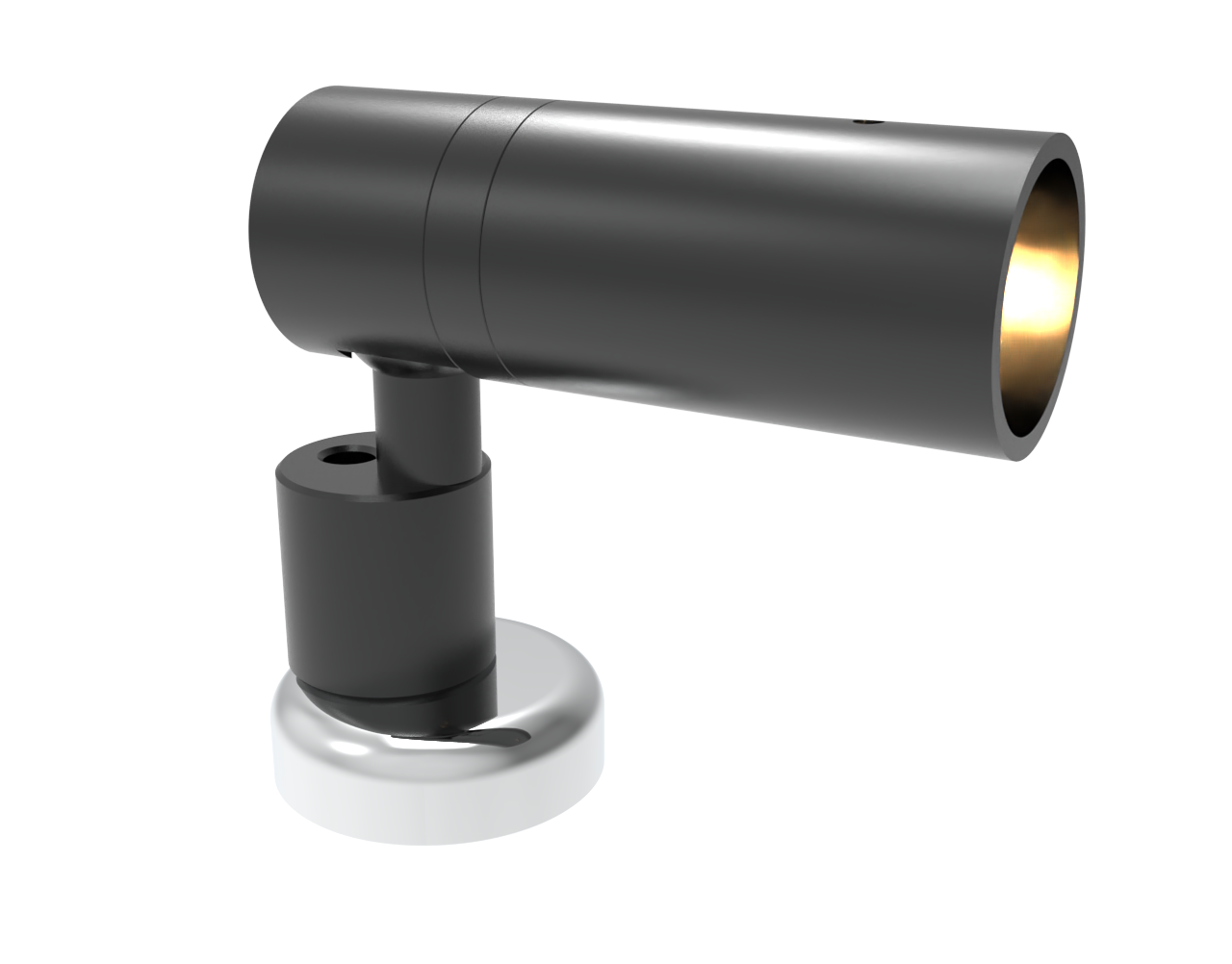

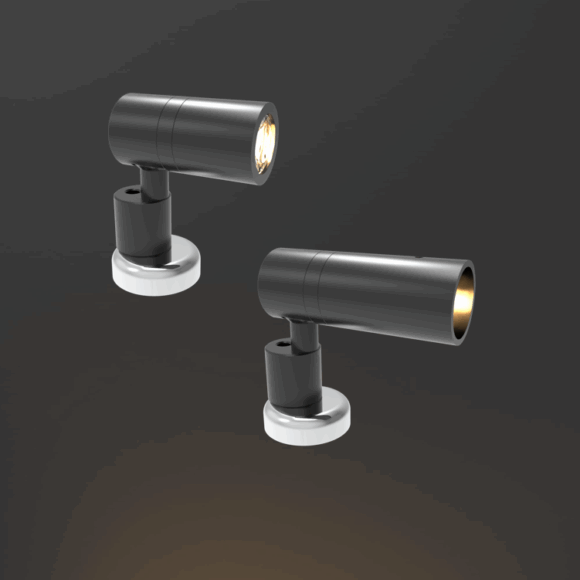

NANO12 Magnetic
Description
Orientation 350°
Adjustable tilt 109°
Dimensions
Spotlight diameter : 12mm
Total length - magnet included :
27mm (Simple)
35mm (Low Luminance)
Max. height - magnet included :
42mm (Simple)
51mm (Low Luminance)

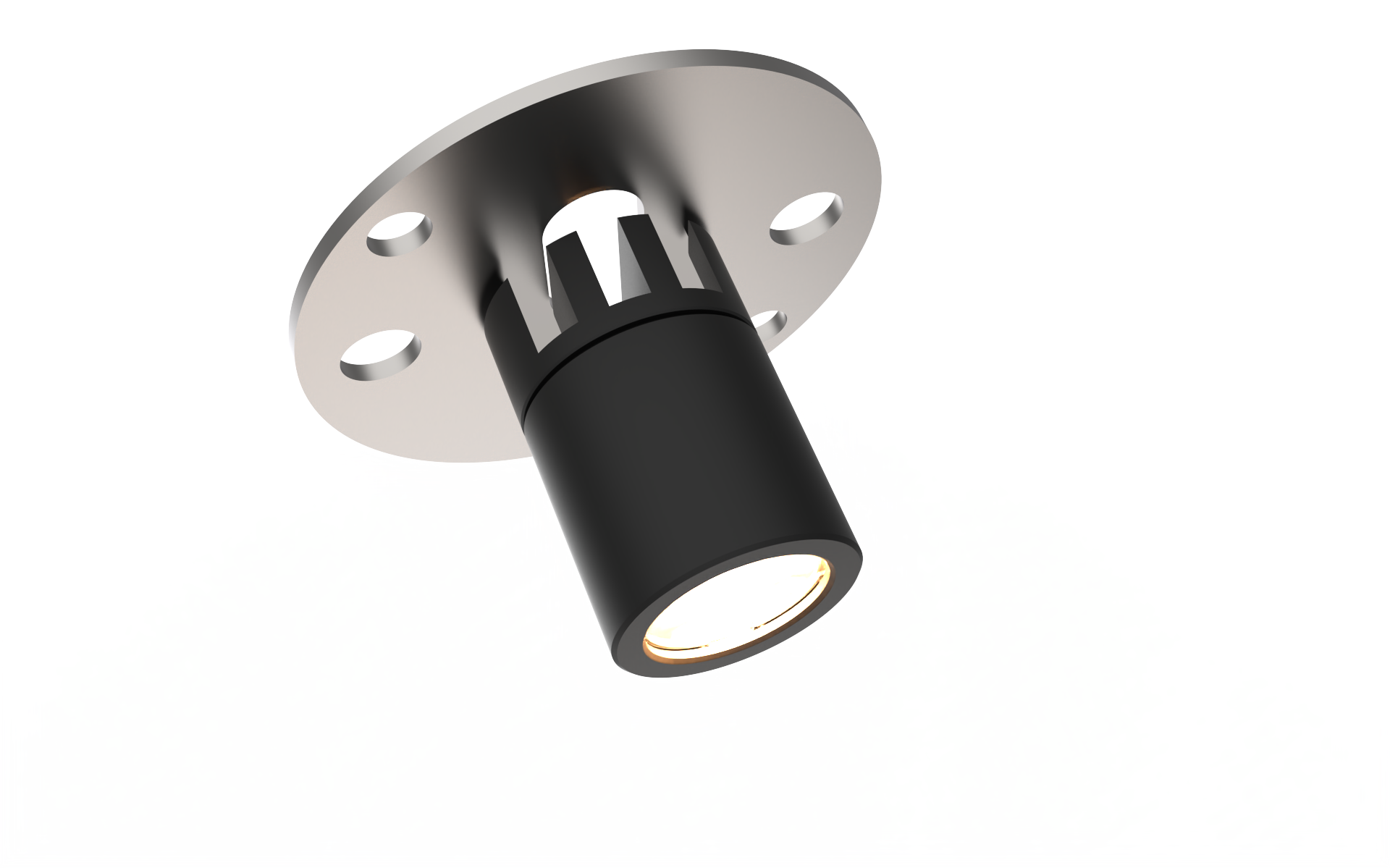

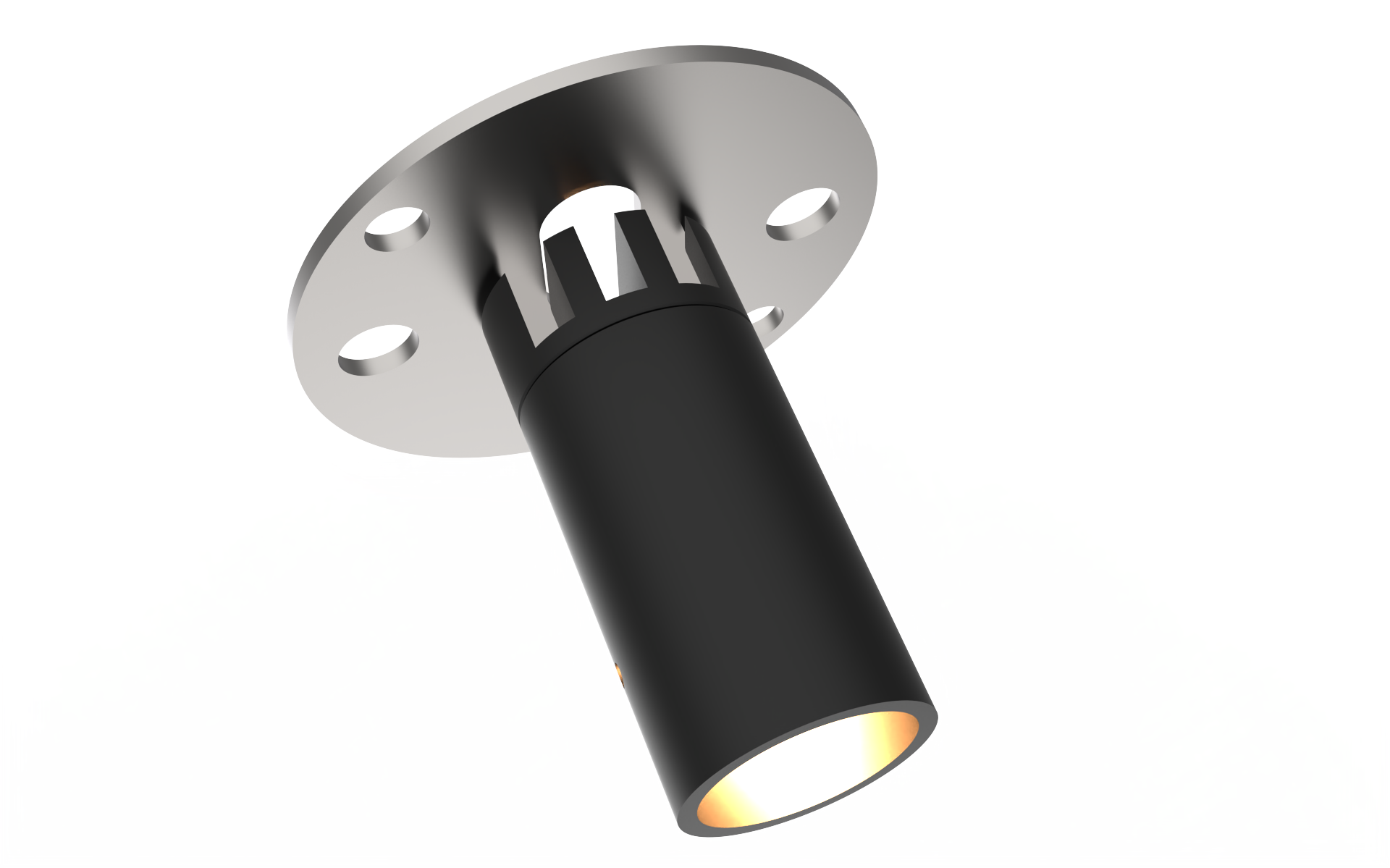

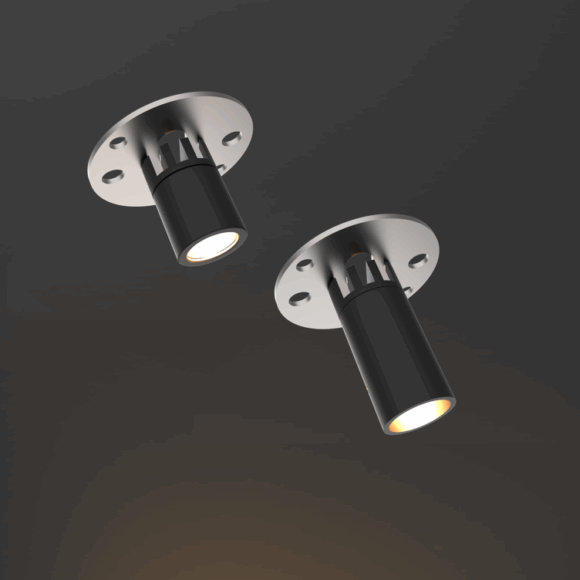

NANO12 Magnetic Recessed
Description
Straight version
or
Beveled version (10°, 15°, 25°, 30°)
Dimensions
Spotlight diameter : 12mm
Spotlight length :
18.50mm (Simple)
26.80mm (Low Luminance)
26.80mm (10° bevel)
27.40mm (15° bevel)
28.51mm (25° bevel)
29.20mm (30° bevel)
Stop washer diameter : 30mm
