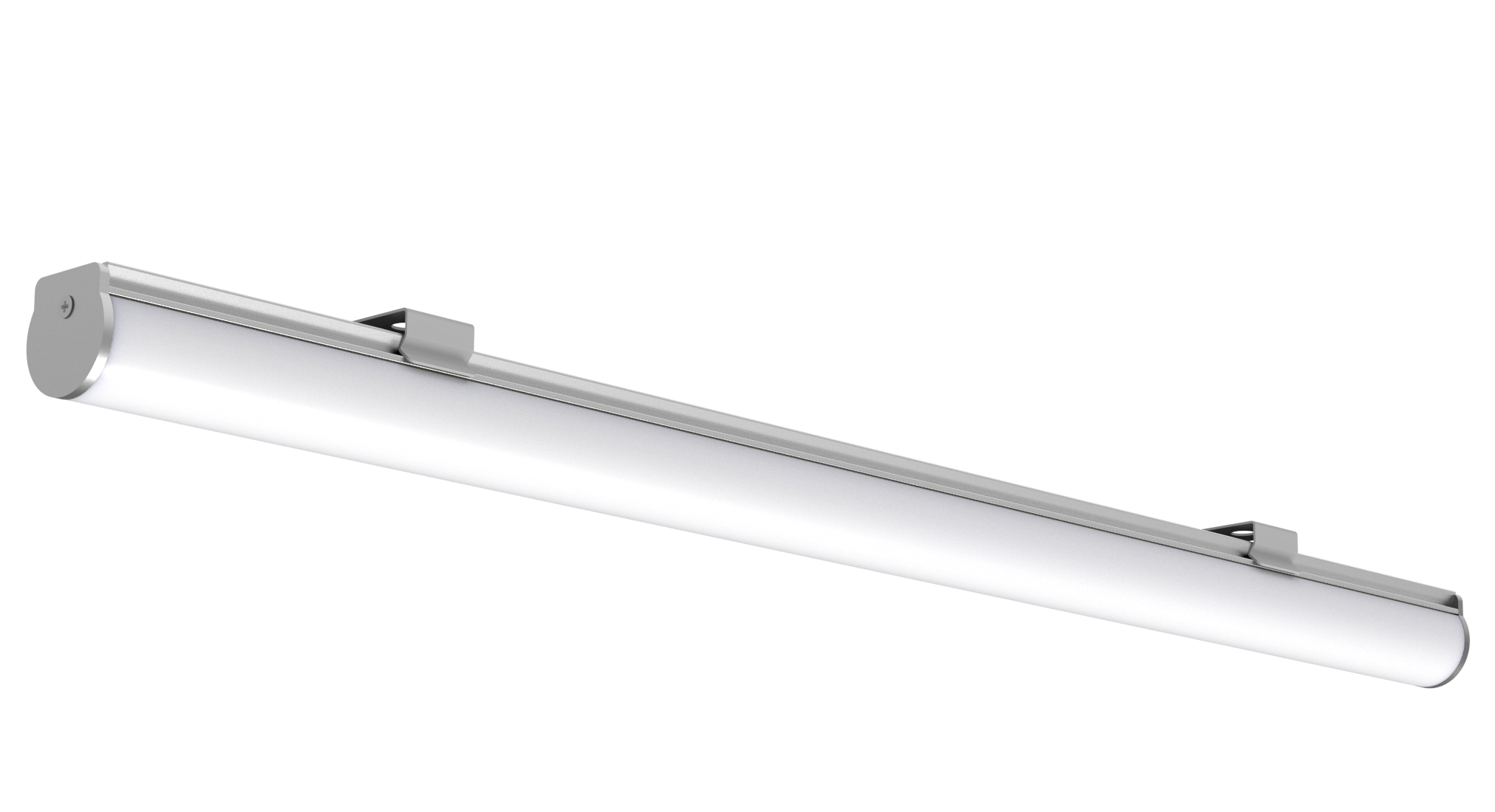

MINI7 UP
Natural anodized aluminium profile + LED strip + opal diffuser + 2 natural aluminium end caps (thickness 1.5mm) + fixing clips
Indoor range
Linear lightings
Dimensions
Width : 17mm – Height : 20mm, with fixing clips Length upon request to 2500mm
Separate power supply
24V
Connection
5m maximum in series
Download the documentation Discover the whole range MINI7 UP
MINI7 UP – CRGB
Colour temperature
RGB
LED W/m
14.40
Cut-out size (mm)
100
LED/m
60
MINI7 UP – Firaled 160
Colour temperatures
2700K - 3000K - 3500K - 4000K
LED power W/m
10.40 - 15.50 - 18
CRI
90
Cut-out size (mm)
50
LED/m
160
MINI7 UP – Firaslim 60
Colour temperatures
2700K - 3000K - 4000K
LED power W/m
13.45
CRI
90
Cut-out size (mm)
100
LED/m
60
MINI7 UP – Firaslim 120CC
Colour temperatures
2700K - 3000K - 3000K+3500K - 3500K - 4000K
LED W/m
9.60 - 14.40 - 19.20
CRI
90
Cut-out size (mm)
50
LED/m
120
MINI7 UP – Firastrip 72
Colour temperatures
2700K – 3000K - 4000K
LED power W/m
15.80
CRI
80 - 90
Cut-out size (mm)
83.30
LED/m
72
MINI7 UP – Firastrip 96
Colour temperatures
2700K – 3000K - 3500K – 4000K
LED power W/m
21.10
CRI
80
Cut-out size (mm)
62.50
LED/m
96
MINI7 UP – Simple M
Colour temperatures
2700K – 3000K - 4000K
LED power W/m
9.60 - 14.40
CRI
80 - 90
Cut-out size (mm)
50
LED/m
120
MINI7 UP – Trichip
Colour temperatures
2700K – 3000K - 4000K
LED power W/m
7.20 - 14.40
CRI
80
Cut-out size (mm)
100
LED/m
80
