Anelo
Surface mounted architectural floodlighting
Outdoor range
Projectors
Diameters
30 - 45 - 50 - 60 - 85 - 130 - 200 - 250
Colour temperature(s)
2200K – 2700K - 3000K – 4000K – 5000K – 6500K (other upon request) or Twin White / RGBW according to version
CRI
CRI 80 CRI 90 (R9>50) CRI 95 (R9>80)
Option(s)
Filters, honeycomb grids upon request
Electric class
III
IP
IP65
IK
IK 10
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Anelo

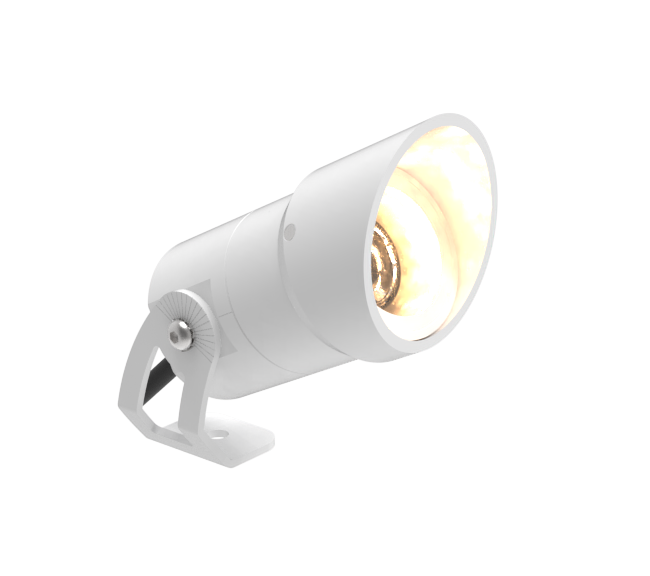

Anelo 30
Versions
Adjustable
Adjustable Remote
Fixed
Description
Supplied in Standard or Low Luminance version (straight or beveled)
Anti-UV transparent polycarbonate protector
Finish
Thermo-lacquered paint
RAL 9003 or RAL 9005
(other upon request)
Dimensions
See datasheet
Weight
± 0.180kg according to version
LED characteristics
1 LED monochrome
Optical beams
10° - 12° - 15° - 35° - 55° - Elliptical
Power supply
900mA max. external constant current driver according to LED type
LED power
3W max
Anelo 45
Description
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Finish
Thermo-lacquered paint
RAL 9003 or RAL 9005
(other upon request)
Dimensions
Diameter : 45mm
Length : 73.5mm
Weight
0.20kg
LED cahracteristics
1 or 4 LEDs monochrome
Optical beams
6° - 15° - 35° - 55° - Elliptical
Power supply
700mA max. external constant current driver
LED power
1 LED : 2.1W max.
4 LEDs : 8.4W max.
Anelo 50
Description
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Dimensions
Diameter : 50mm
Length : 61mm
Weight
0.22 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
1 LED monochrome
4in1 LED
Optical beams
3° - 6º - 15º - 35º - 40°
Power supply
External constant current driver :
1 LED : 700mA max.
4in1 LED : 350mA max.
LED power
1 LED : 2.4W at 700mA max.
4in1 LED : 4W at 350mA max.
Anelo 60
Description
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Dimensions
Diameter : 60mm
Length : 70.25mm
Weight
0.30 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
1 LED monochrome
4in1 LED Tunable White or RGBW
Optical beams
Monochrome / Tunable White :
4° - 6° - 15° - 35°
4in1 LED RGBW :
12° - 24° - 32° - 10°x40°
Power supply
700mA max external constant current driver
LED power
1 LED : 2.4W max
4in1 LED : 8W max
Anelo 85
Description
Anti-UV transparent polycarbonate
Stainless steel fixing bracket
Dimensions
Diameter : 85mm
Length : 76mm
Weight
0.60 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
6 LEDs monochrome
8 LEDs Tunable White or RGBW
Optical beams
15º - 20º - 35º - 40º - 60º - 80° - 18°x36°
4in1 LED : 20º - 30º - 55º - 70º
Power supply
700mA max external constant current driver
RGBW version : 500mA max.
LED power
6 LEDs : 12W max.
8 LEDs Tun. White/RGBW : 15W max
Anelo 130
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 130mm
Length : 59mm
Weight
1.30 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
6/12 LEDs monochrome
6 LEDs 4in1 RGBW
12 LEDs Tunable White
Optical beams
6º - 15º - 20º - 30º - 40º - 60º
4in1 : 20º - 30º - 55º - 70º
Power supply
700mA max external constant current driver
LED power
6 LEDs : 12W max.
12 LEDs Mono/RGBW : 28.8W max
Anelo 200
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 200mm
Length : 67mm
Weight
3.10 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
18 LEDs monochrome
24 LEDs Tunable White or RGBW
Optical beams
7° - 15° - 30° - 35° - 40° - 60°
Power supply
700mA max external constant current driver
LED power
18 LEDs : 36W max.
24 LEDs : 45W max. full RGBW
Anelo 250
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 250mm
Length : 80mm
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
64 LEDs
Monochrome / RGBW / Tunable White
Optical beams
12° - 15° - 20° - 30° - 35° - 40° - 50° - 55° - 80° - 100° - 120°
Power supply
1A max. / 55V max. external constant current driver
RGBW version : DMX constant current driver
LED power
16 groups of 4 LEDs
Monochrome/Tunable White/RGBW
40W max / group
Total capacity 100W
