Anelo
Surface mounted architectural floodlighting
Outdoor range
Projectors
Diameters
30 - 45 - 50 - 60 - 85 - 130 - 200 - 250
Colour temperature(s)
2200K – 2700K - 3000K – 4000K – 5000K – 6500K (other upon request) or Twin White / RGBW according to version
CRI
CRI 80 CRI 90 (R9>50) CRI 95 (R9>80)
Option(s)
Filters, honeycomb grids upon request
Electric class
III
IP
IP65
IK
IK 10
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Anelo

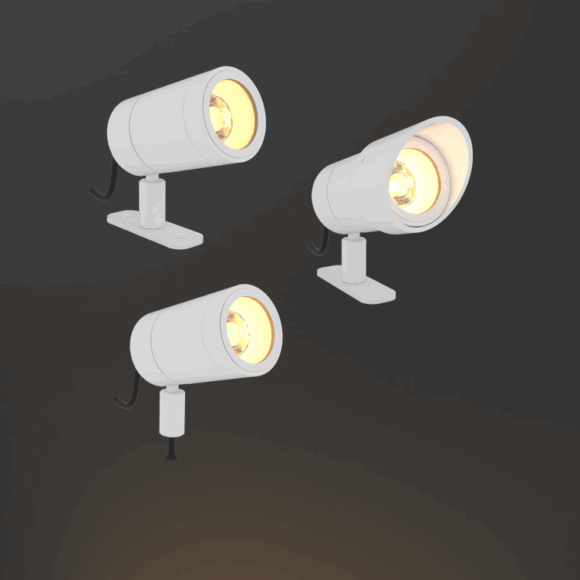

Anelo 30
Description
Supplied in Standard or Low Luminance version
Anti-UV transparent polycarbonate protector
Installation on a plate or with a fixing screw
Orientation 360° - Adjustable tilt 110°
Finish
Thermo-lacquered paint
RAL 9003 or RAL 9005
(other upon request)
Dimensions
Standard version
Diameter : 30mm
Length : 48.25mm
Low Luminance version
Diameter : 34mm
Length : 66.25mm
Weight
± 0.12kg according to version
LED characteristics
1 LED monochrome
Optical beams
12° - 15° - 35° - 55° - Elliptical
Power supply
1,050mA max. external constant current driver according to LED type
LED power
3.5W max
Anelo 45
Description
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Finish
Thermo-lacquered paint
RAL 9003 or RAL 9005
(other upon request)
Dimensions
Diameter : 45mm
Length : 73.5mm
Weight
0.20kg
LED cahracteristics
1 or 4 LEDs monochrome
Optical beams
6° - 15° - 35° - 55° - Elliptical
Power supply
700mA max. external constant current driver
LED power
1 LED : 2.1W max.
4 LEDs : 8.4W max.

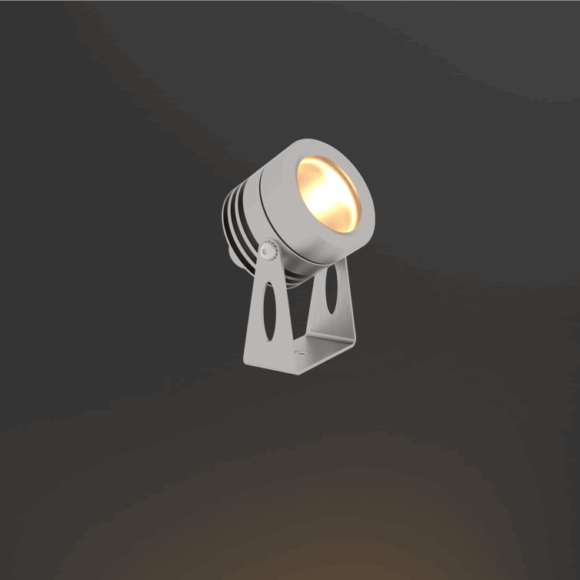

Anelo 50
Descirption
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Dimensions
Diameter : 50mm
Length : 61mm
Weight
0.22 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
1 LED monochrome
Optical beams
6º - 15º - 35º
Power supply
700mA max external constant current driver
LED power
2.4W max.

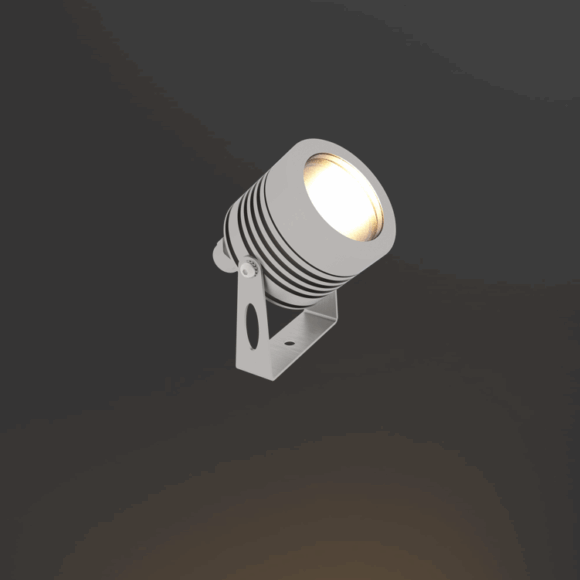

Anelo 60
Description
Anti-UV transparent polycarbonate protector
Stainless steel fixing bracket
Dimensions
Diameter : 60mm
Length : 70.25mm
Weight
0.30 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
1 LED monochrome
4in1 LED Twin White or RGBW
Optical beams
Monochrome / Twin White :
4° - 6° - 15° - 35°
4in1 LED RGBW :
12° - 24° - 32° - 10°x40°
Power supply
700mA max external constant current driver
LED power
1 LED : 2.4W max
4in1 LED : 8W max

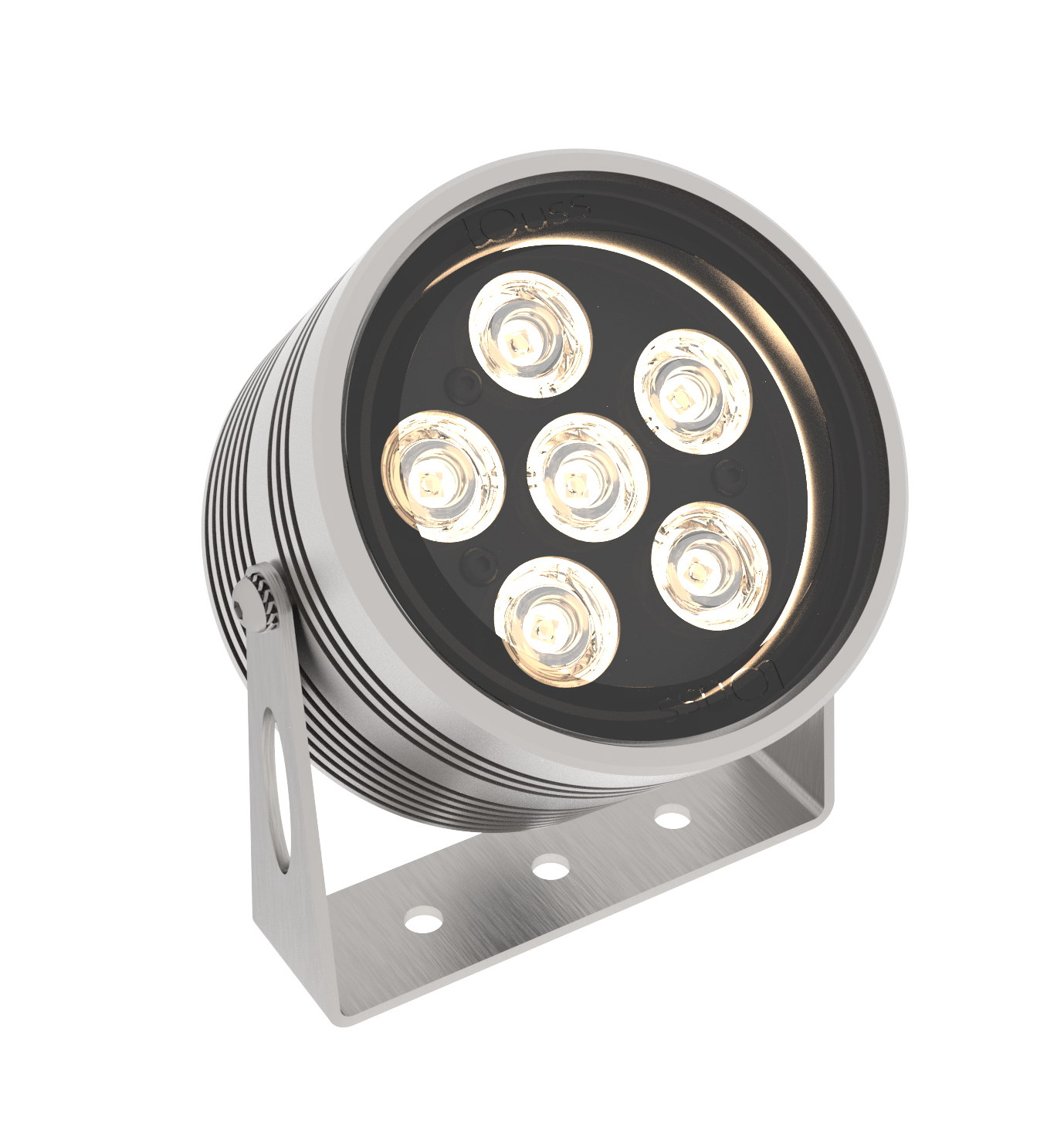

Anelo 85
Description
Anti-UV transparent polycarbonate
Stainless steel fixing bracket
Dimensions
Diameter : 85mm
Length : 76mm
Weight
0.60 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
6 LEDs monochrome
8 LEDs Twin White or RGBW
Optical beams
15º - 20º - 35º - 40º - 60º - 80° - 18°x36°
4in1 LED : 20º - 30º - 55º - 70º
Power supply
700mA max external constant current driver
RGBW version : 500mA max.
LED power
6 LEDs : 12W max.
8 LEDs Twin White/RGBW : 15W max

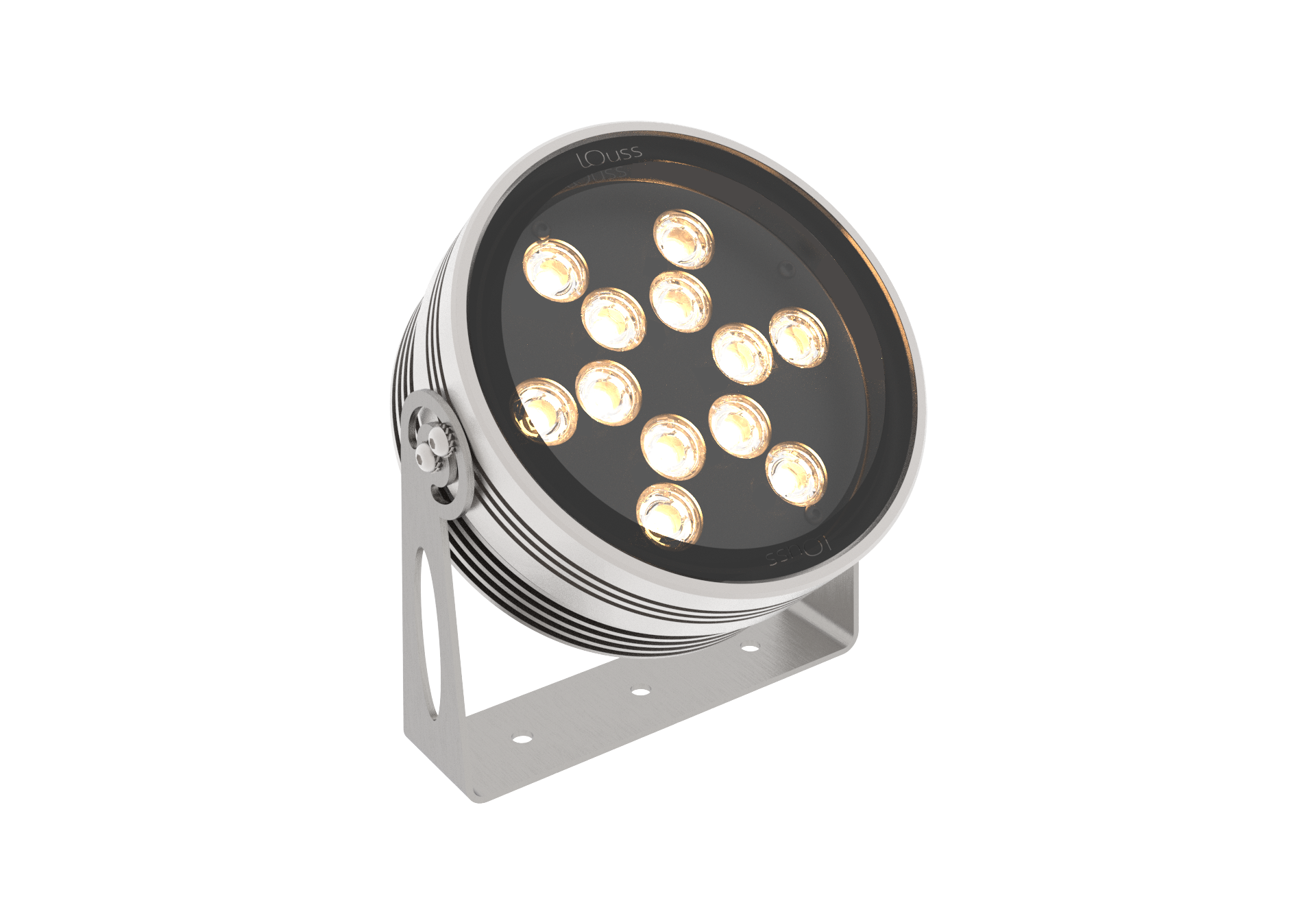

Anelo 130
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 130mm
Length : 59mm
Weight
1.30 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
6/12 LEDs monochrome
6 LEDs 4in1 RGBW
12 LEDs Twin White
Optical beams
6º - 15º - 20º - 30º - 40º - 60º
4in1 : 20º - 30º - 55º - 70º
Power supply
700mA max external constant current driver
LED power
6 LEDs : 12W max.
12 LEDs Mono/RGBW : 28.8W max

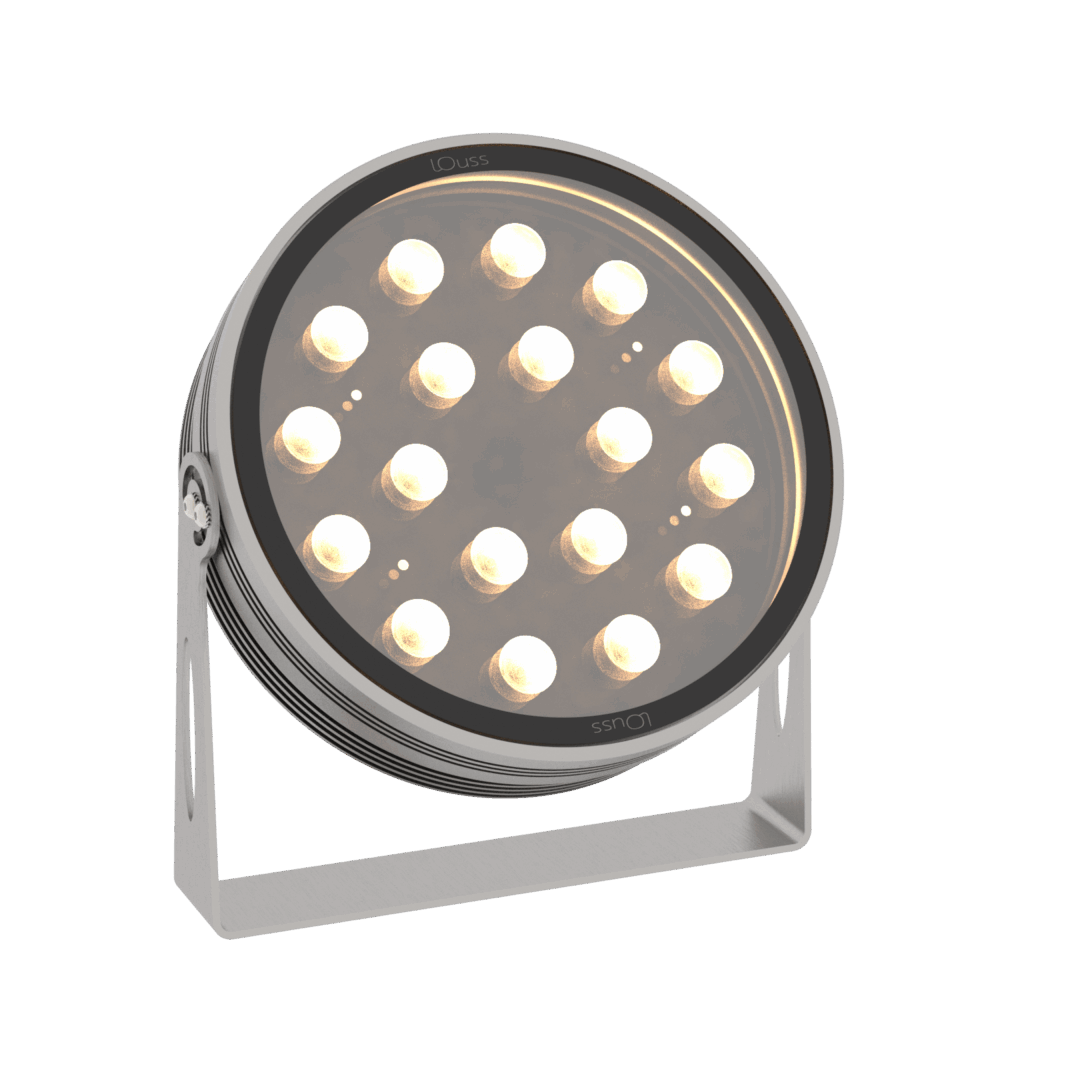

Anelo 200
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 200mm
Length : 67mm
Weight
3.10 kg
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
18 LEDs monochrome
24 LEDs Twin White or RGBW
Optical beams
7° - 15° - 30° - 35° - 40° - 60°
Power supply
700mA max external constant current driver
LED power
18 LEDs : 36W max.
24 LEDs : 45W max. full RGBW
Anelo 250
Description
Extra clear tempered glass
Stainless steel fixing bracket
Dimensions
Diameter : 250mm
Length : 80mm
Finish
Natural anodized aluminum
(other upon request)
LED characteristics
64 LEDs
Monochrome / RGBW / Twin White
Optical beams
12° - 15° - 20° - 30° - 35° - 40° - 50° - 55° - 80° - 100° - 120°
Power supply
1A max. / 55V max. external constant current driver
RGBW version : DMX constant current driver
LED power
16 groups of 4 LEDs
(Monochrome / Twin White / RGBW)
40W max / group
Total capacity 100W
