Undo Recessed
Luminaire for accent lighting, dedicated to precision lighting & highlighting of showcases
Indoor range
Ceiling & Wall
Color temperature(s)
1 LED or 4in1 LED : 2700K - 3000K - 3500K - 4000K or mix of color temperatures
CRI
CRI 80 - 90 - 92 - 95
Optical beams
3.3° - 7° - 11° - 16° - 17° - 21° - 23° - 29° - 31° - 33° - 35° - 42° - 56° - 60° - Asymmetrical
Accessories
Filters, honeycomb grid
Finish
Black matt finish anodized aluminum (other upon request)
Power supply
700mA max. external constant current driver
LED power
9W at 700mA max.
IP
IP 40
Electric class
III
Life span
Life span: L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Undo Recessed
UNDO Magnetic Trim
Description
Screw-in insert + magnetic spotlight
Dimensions
External diameter : 51mm
Spotlight diameter : 43mm
Installation diameter : 45mm
Installation depth : 51mm

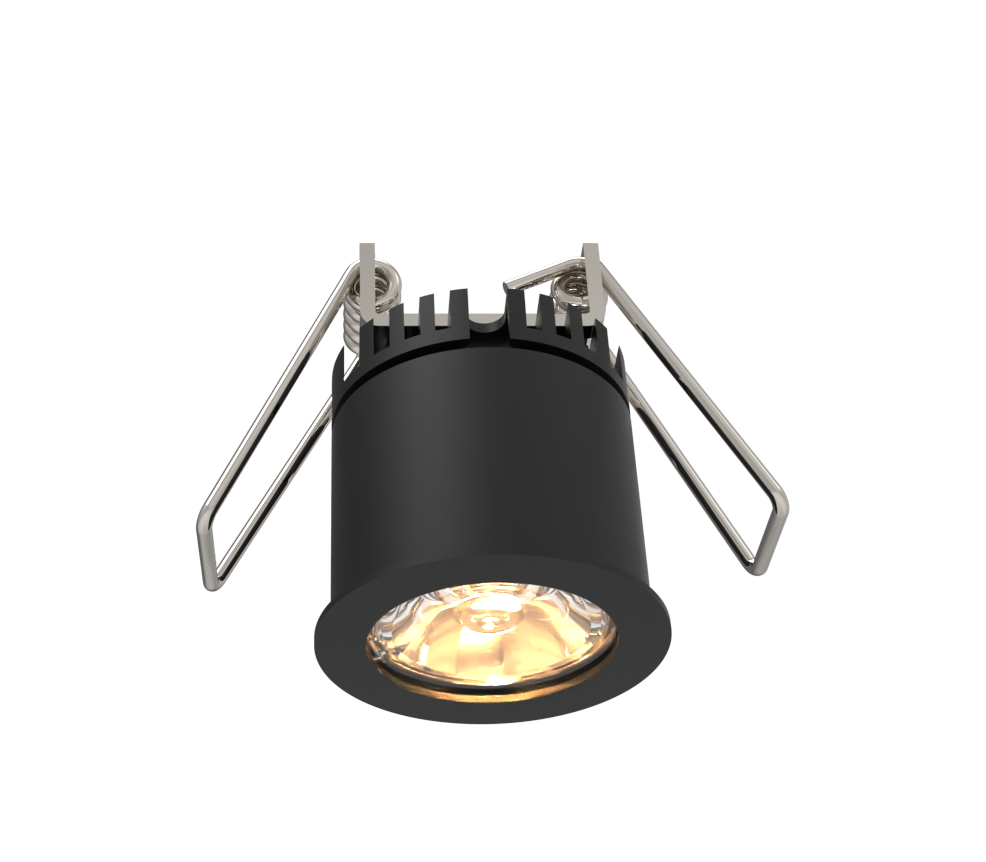

UNDO Trim
Description

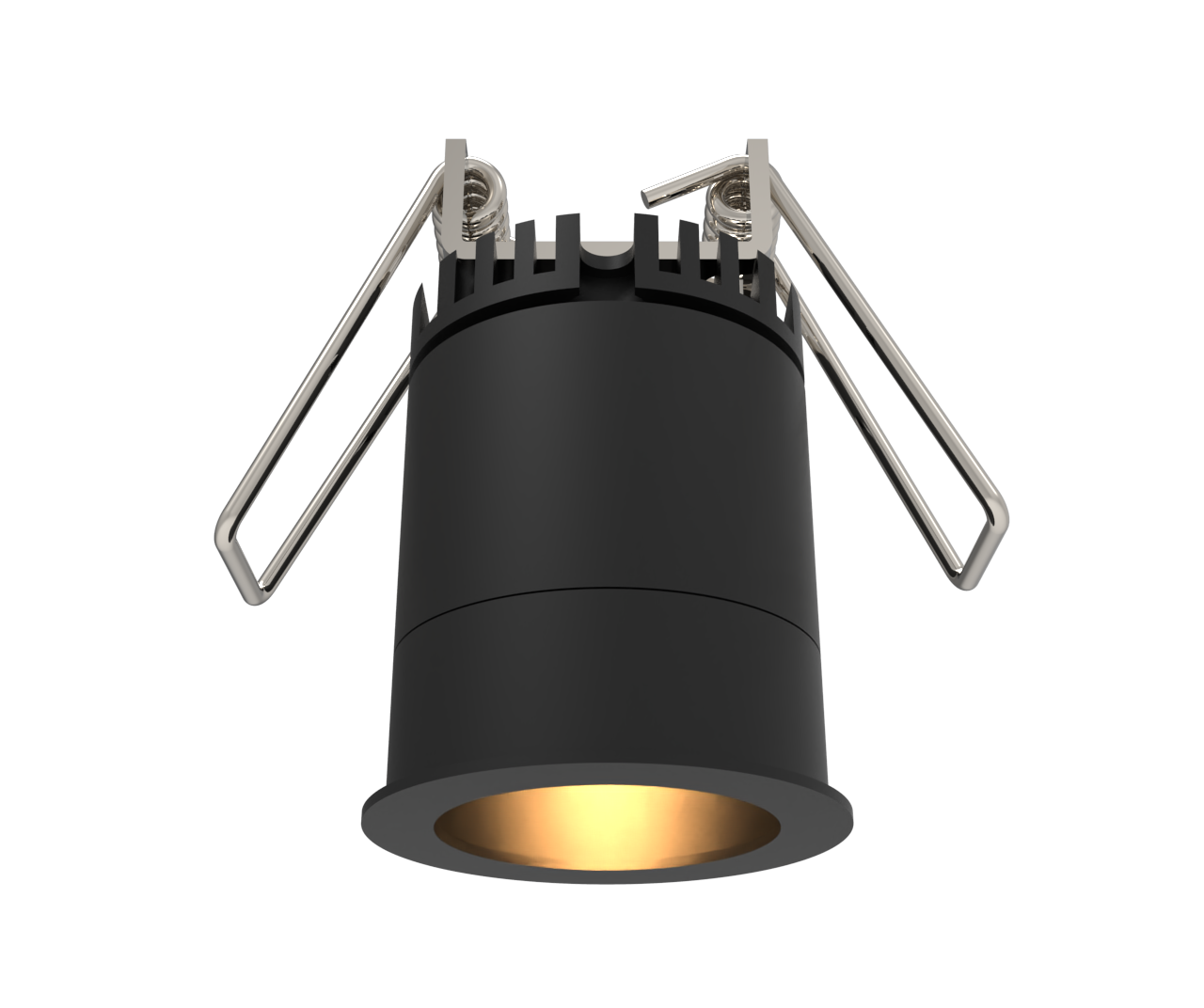

Supplied in Standard version or with a Low Luminance tube
Dimensions
External diameter : 43.5mm
Spotlight diameter : 39.5mm
Installation diameter : 39.5mm
Installation depth :
57mm (Standard)
73mm (Low Luminance)

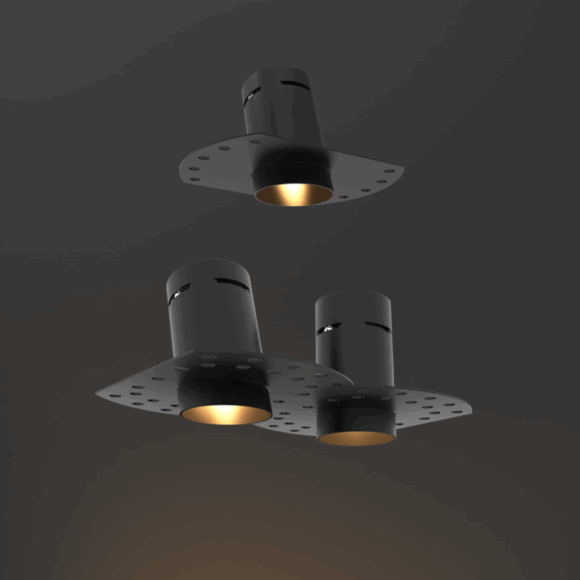

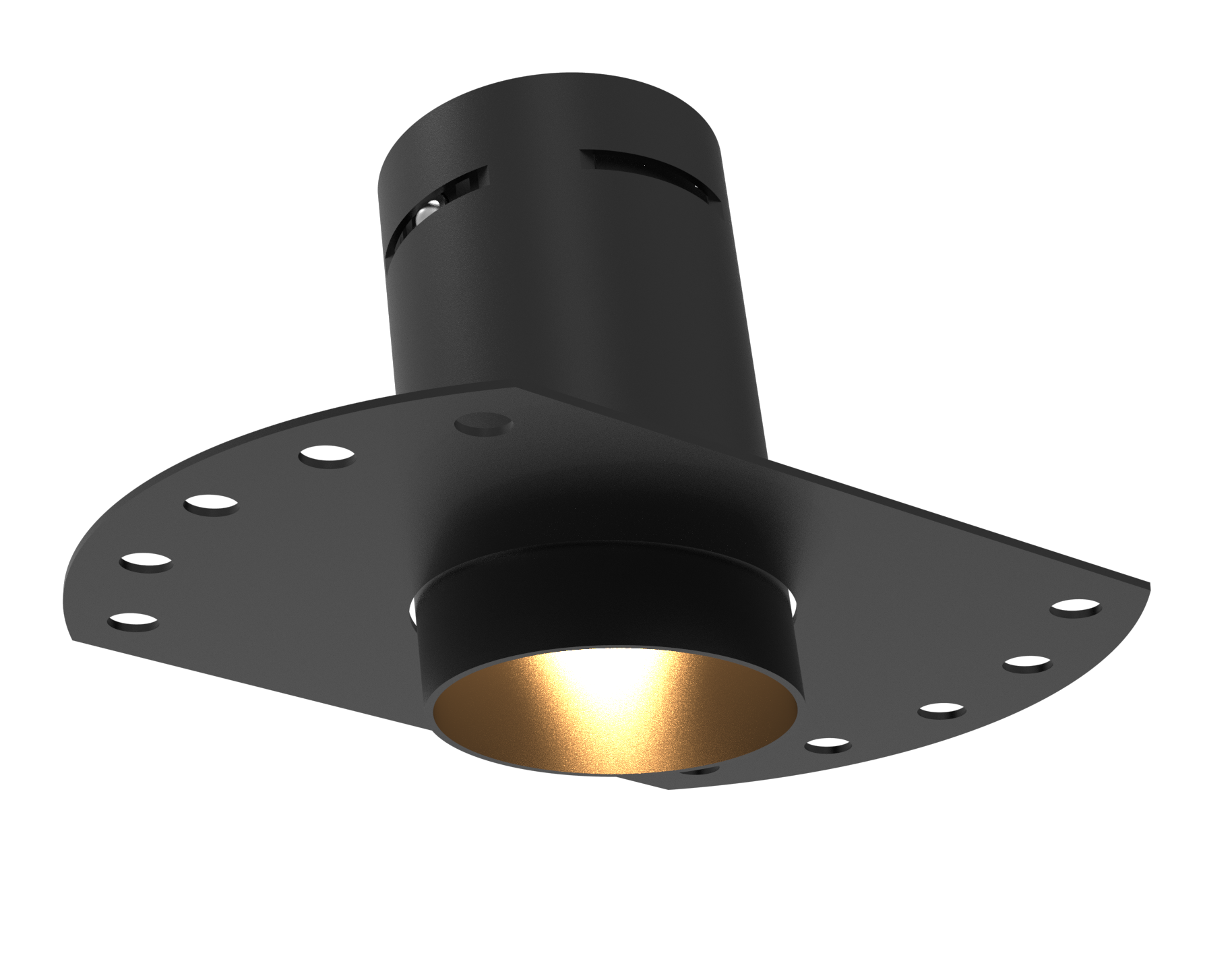

UNDO Fixed Trimless
Versions
Straight or Tilted version (10°-15°-20°)

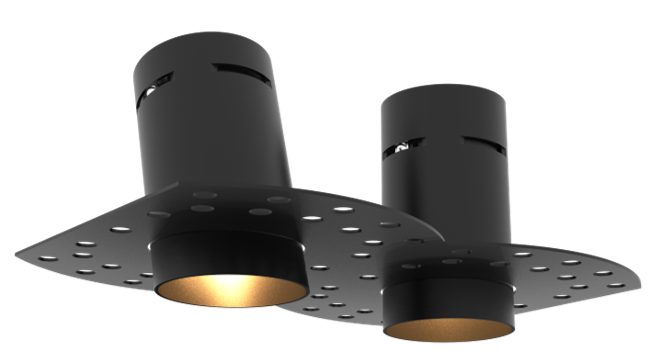

Double version (0°+15°)
Dimensions
Spotlight diameter : 44mm
Fixing plate dimensions :
• 90 x 140mm
• 180 x 140mm (Double version)
Installation depth : 67 to 80mm
The other luminaires for Ceiling & Wall
Albedio
Aurore Wall-Mounted
Aurore Recessed
Aurore Staff
Aurore Track versions
Brike
Comédia
Elis
Levana
Minifiled Recessed
MiniStaff

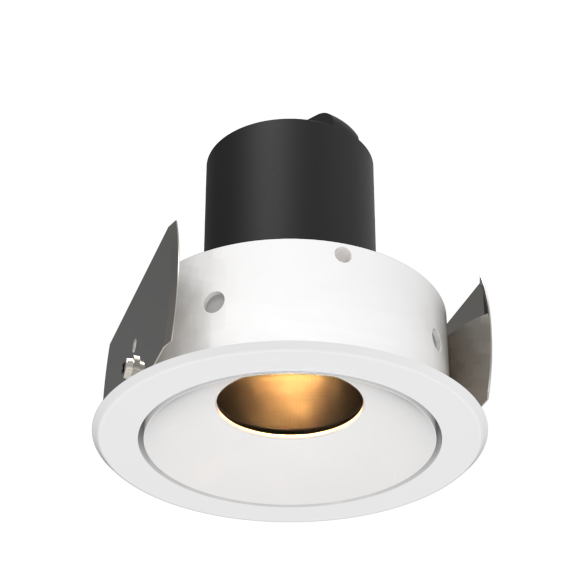

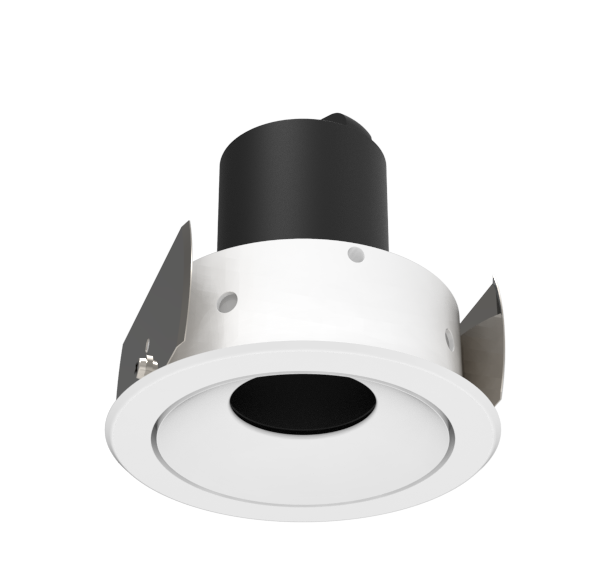

Mysta Track
