Aurore Wall-Mounted
Highly flexible downlights for general & accent lighting
Indoor range
Ceiling & Wall
CRI
CRI > 90 (standard version)
CRI 95, R9 > 90 (premium version)
Optics/Diffusers
6° - 7° - 10° - 12° - 15° - 20° - 25° - 30° - 35° - 40° - 55° - 60° - Elliptical
Options
Special filters, honey comb, dimmable driver
IP
IP40
Colour temperature
2700K - 3000K – 3500K – 4000K – 5000K (other upon request)
UGR
< 15
Finishing
White RAL 9003 matt finish Black RAL 9005 matt finish (other upon request)
Electric class
III (except rectangular wall-mounted version)
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Aurore Wall-Mounted
Aurore D40 Wall-Mounted Range
Versions
Round Wall-Mounted

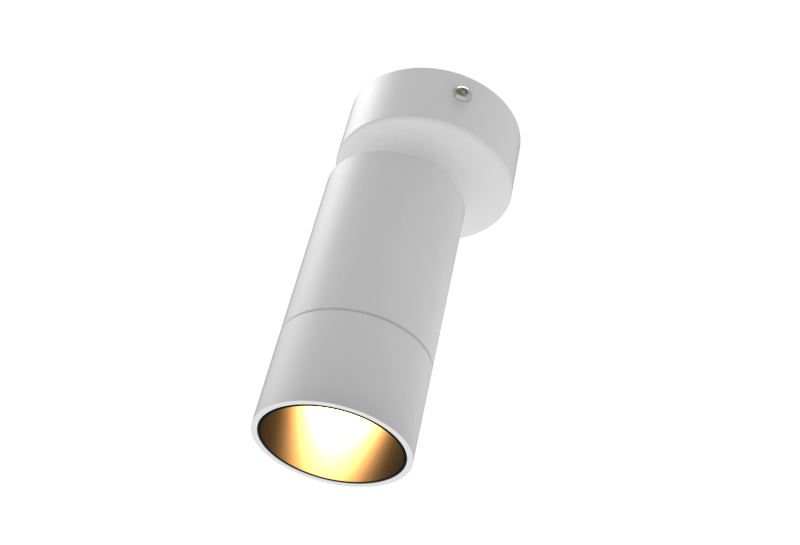

Round Magnetic Wall-Mounted
Dimensions
Spot diameter : 40mm
Spot length : 80mm
Box diameter : 52mm
Luminous flux
300 to 800 lumen according to version
Power supply
External constant current driver
700mA max
Dimmable driver upon request
Power
4W to 10W according to version

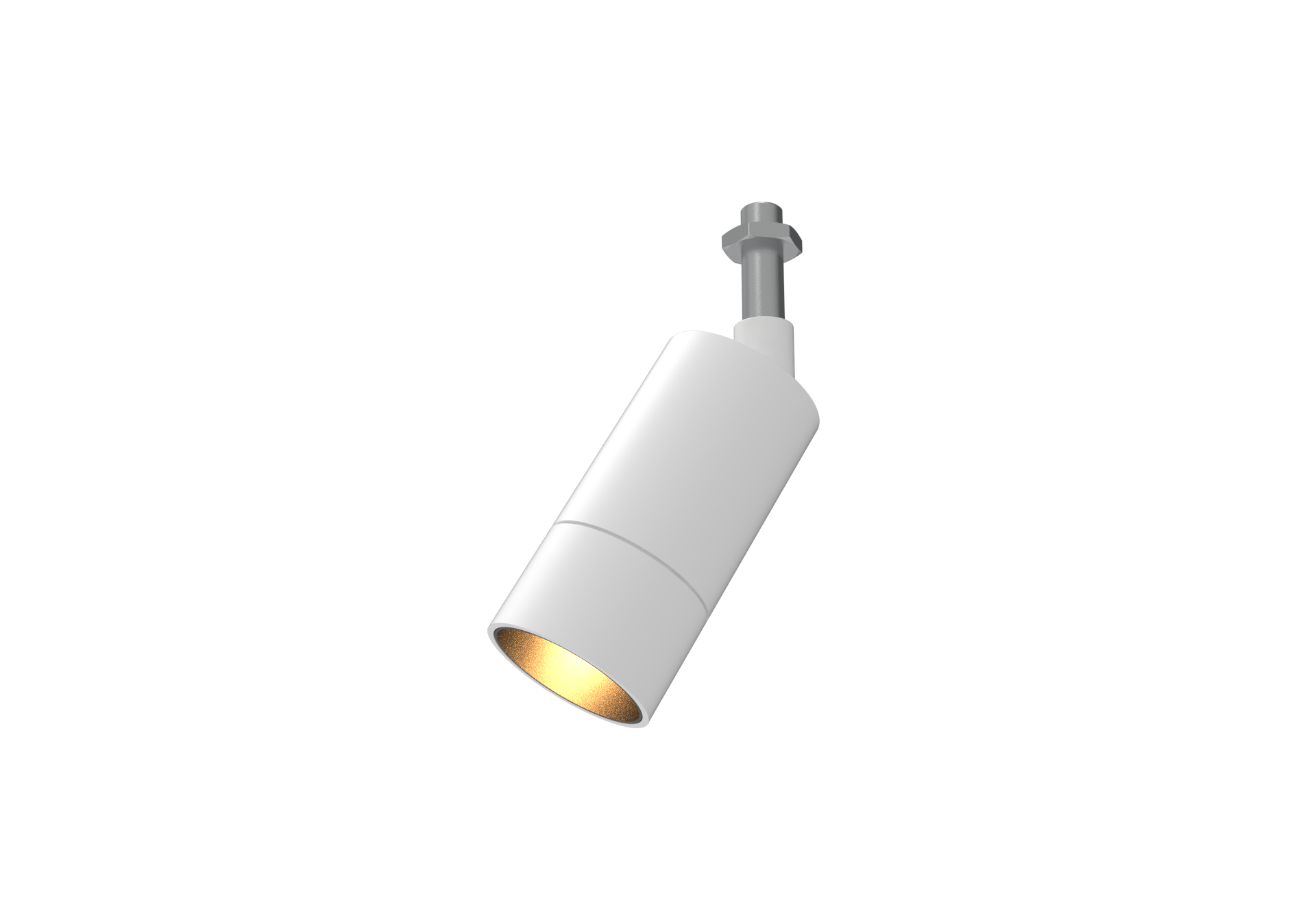

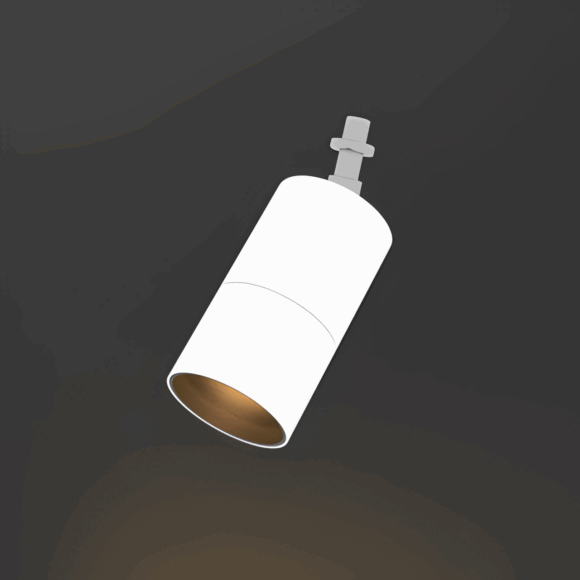

Aurore D40 Pivot
Dimensions
Spotlight length : 80mm
Spotlight diameter : 40mm
Luminous flux
300 to 800 lumen according to version
Power supply
Remote constant current driver
700mA max.
Dimmable driver upon request
Power
3W to 10W according to version
Aurore D42 Wall-Mounted Range
Versions
Round Wall-Mounted
Ø42mm
Dimensions
Spotlight length : 80mm
Spotlight diameter : 42mm
Box diameter : 52mm
Luminous flux
300 to 800 lumen according to version
Power supply
External constant current driver
700mA max.
Dimmable driver upon request
Power
4W to 10W according to version
Aurore D52 Pivot
Dimensions
Spotlight length : 95mm
Spotlight diameter : 52mm
Luminous flux
600 to 2000 lumen according to version
Power supply
External constant current driver
1400mA max. according to version
Dimmable driver upon request
Power
6W to 13W according to version

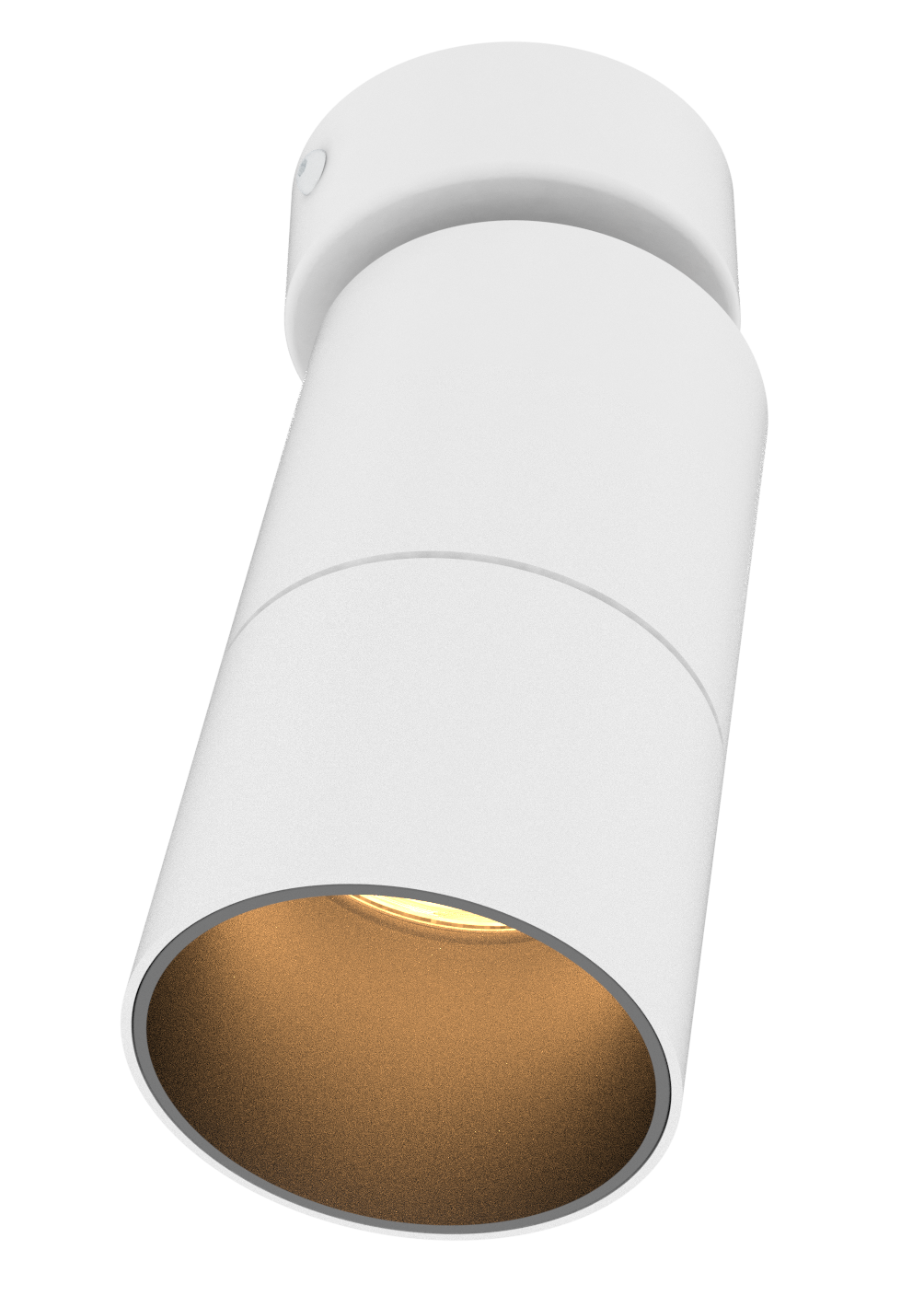

Aurore D52 Wall-Mounted Range
Versions
Round Wall-Mounted

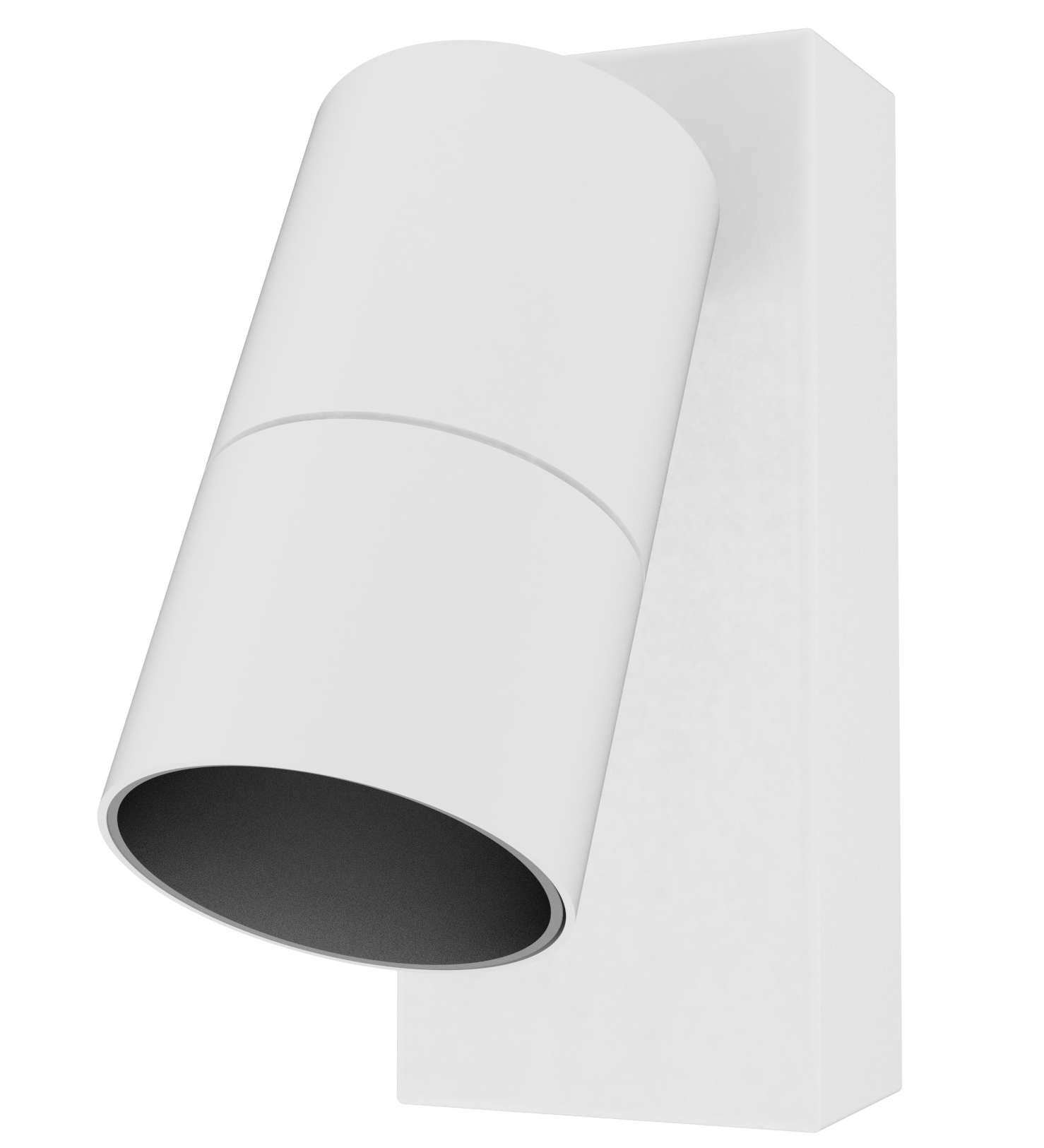

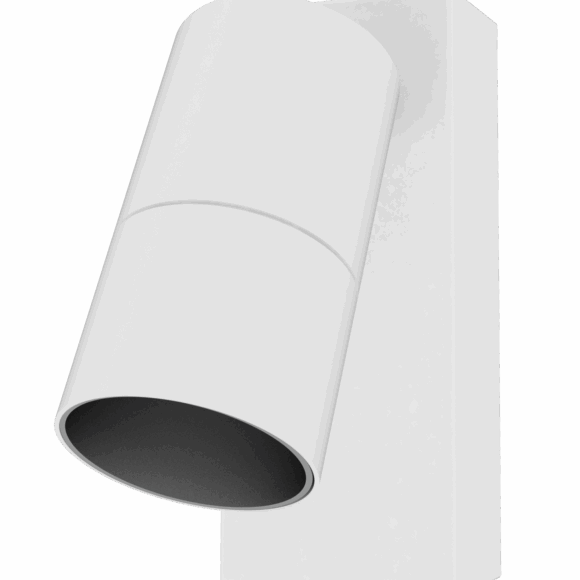

Rectangular Wall-Mounted
Dimensions
(See datasheet)
Luminous flux
600 to 2,000 lm according to version
Power supply
All versions :
External constant current driver
1400mA max.
Rectangular Wall-Mounted :
Constant current driver integrated
700mA max.
Power
6W to 25W according to version

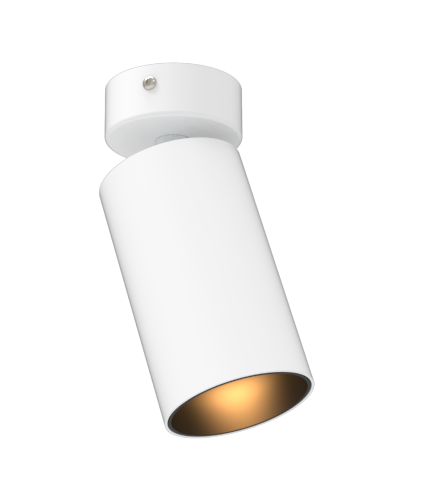

Aurore D55 Wall-Mounted Range
Description
Round Wall-Mounted version
Permuto - système Easy Swap
Ø55mm
Dimensions
Spotlight diameter : 55mm
Spotlight length : 95mm
Box diameter : 52mm
Luminous flux
600 to 2000 lm according to version
Power supply
External constant current driver
1400mA max according to version
Dimmable driver upon request
LED power
6W to 25W according to version
Aurore D60 Pivot
Dimensions
Spotlight diameter : 61mm
Spotlight length : 145mm
Luminous flux
600 to 2,000 lm according to version
Power supply
External constant current driver
1400mA max.
Dimmable driver upon request
Power
6W to 25W according to version

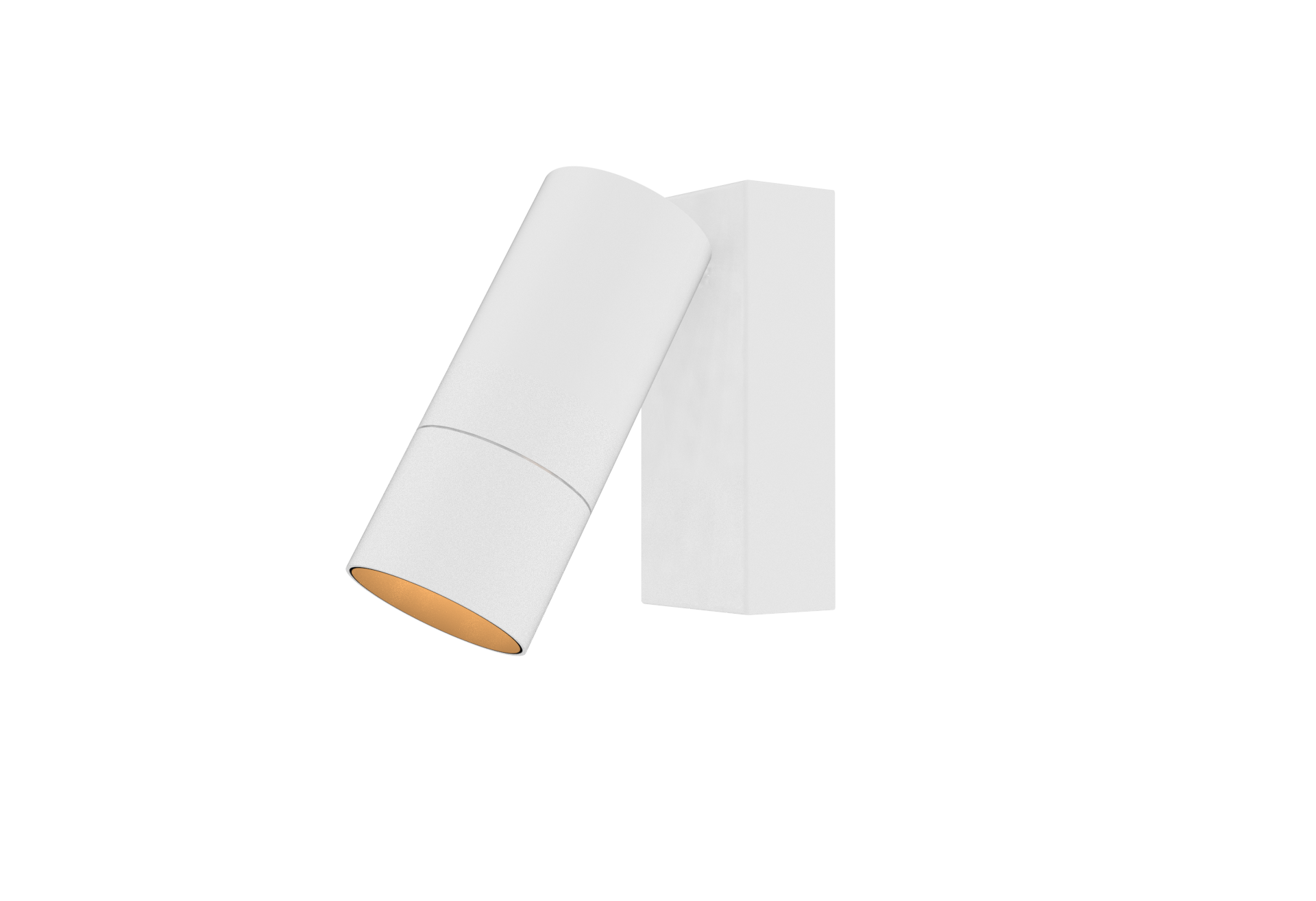

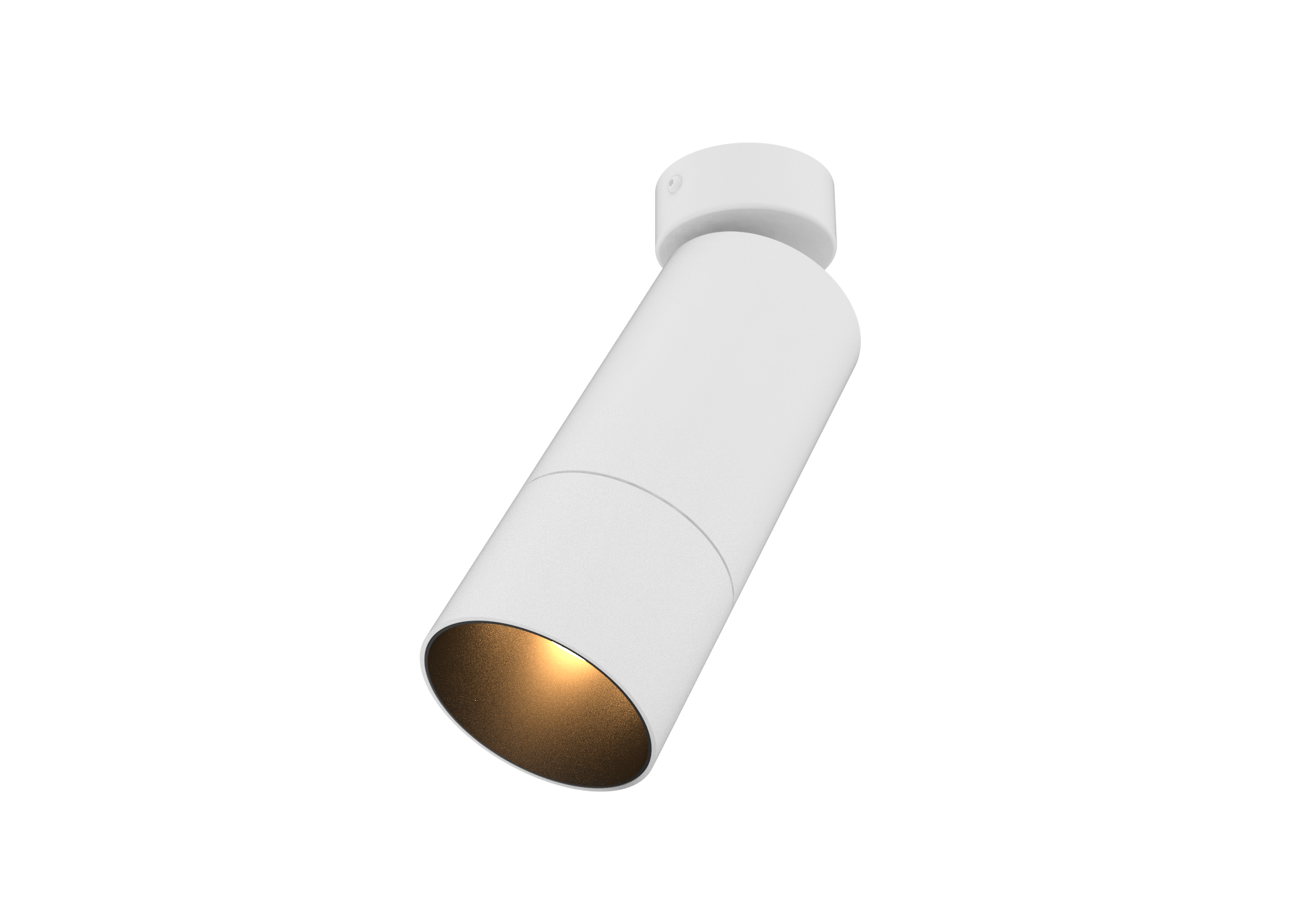

Aurore D60 Wall-Mounted Range
Versions
Round Wall-Mounted
Rectangular Wall-Mounted
Ø60mm
Dimensions
(See datasheet)
Luminous flux
600 to 2,000 lumen according to version
Power supply
All versions :
External constant current driver
1400mA max.
Rectangular Wall-Mounted :
Constant current driver integrated
700mA max.
Power
6W to 25W according to version

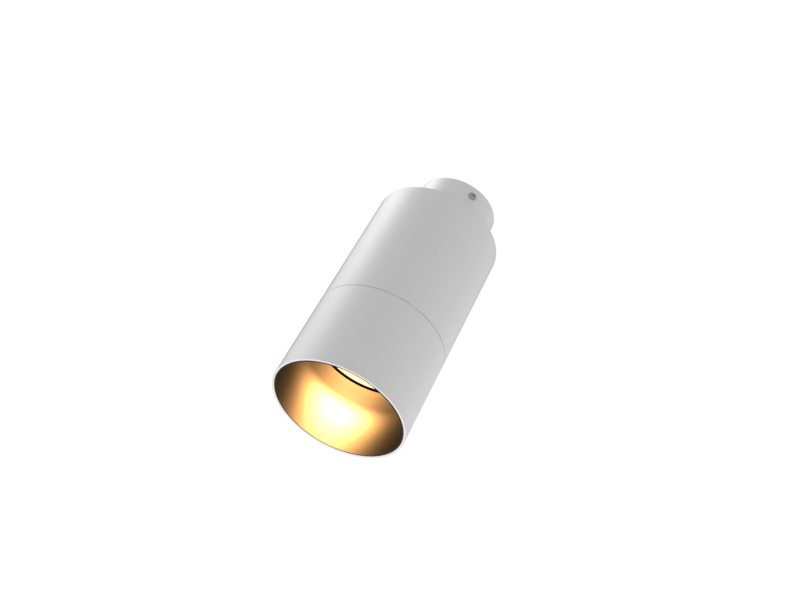

Aurore D82 Wall-Mounted Range
Versions
Round Wall-Mounted
Rectangular Wall-Mounted
On-Plate
(1 LED or 3 LEDs versions)
Ø82mm
Dimensions
(See datasheet)
LED characteristics
1 LED : 1500 to 2500 lumen
3 LED : 2300 to 2600 lumen
Monochrome version
Tunable White version
RGB version
Power supply
(See datasheet)
Power
1 LED : 6W to 25W
3 LEDs : 35W max.
