Aurore Recessed
Highly flexible recessed ceiling downlights for general & accent lighting
Indoor range
Ceiling & Wall
CRI
CRI > 90 (standard version)
CRI 95, R9 > 90 (premium version)
UGR
< 15
Finishing
White RAL 9003 matt finish Black RAL 9005 matt finish (other upon request)
Electric class
III
IP
IP40
Colour temperature
2000K - 2200K - 2700K - 3000K - 3500K - 4000K - 4500K - 5000K (other upon request)
Axis intensity
1800 to 75000 cd according to version
Optics / Diffusers
7° - 12° - 15° - 20° - 25° - 30° - 35° - Elliptic
Options
Special filters, honey comb upon request
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Aurore Recessed

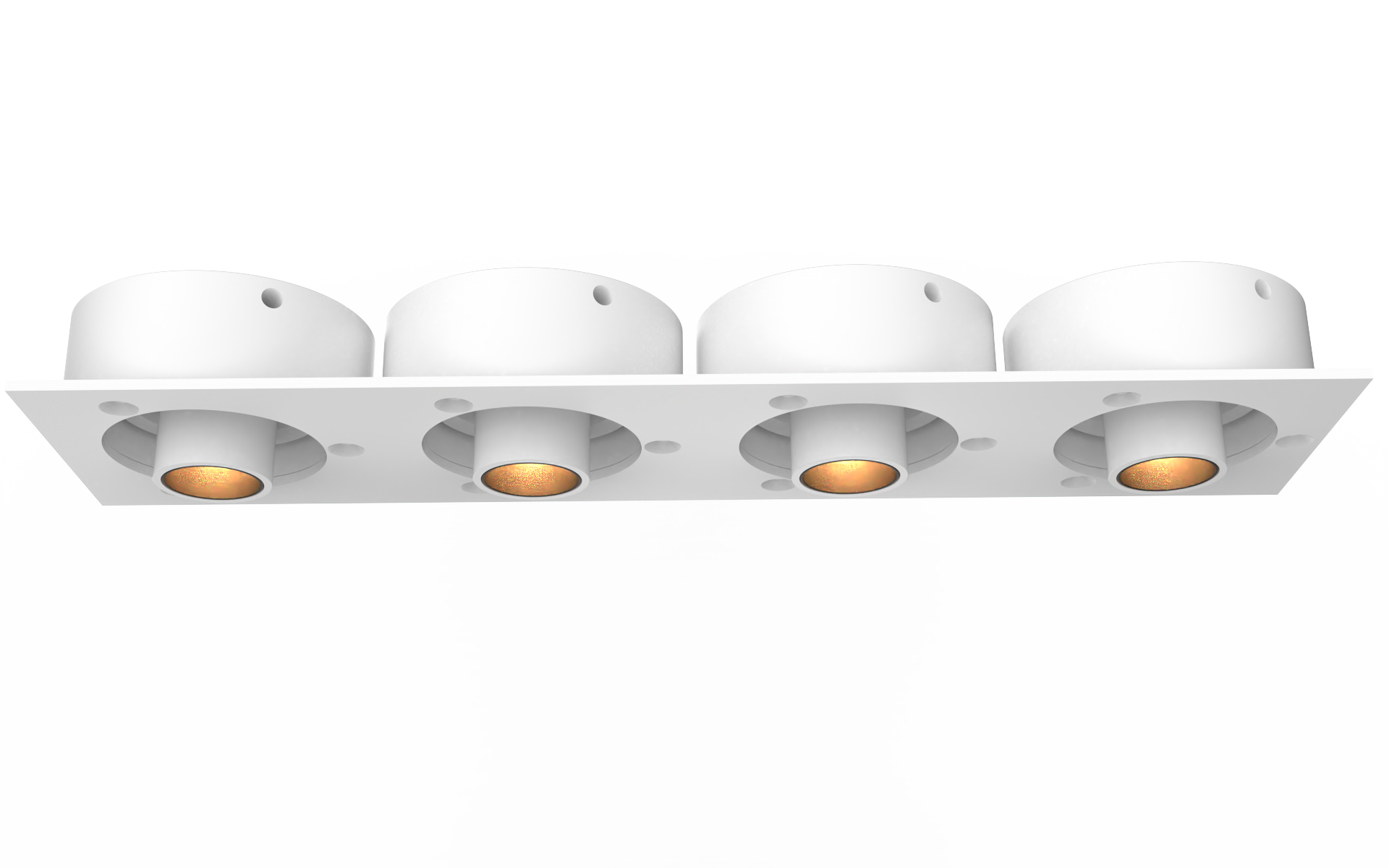

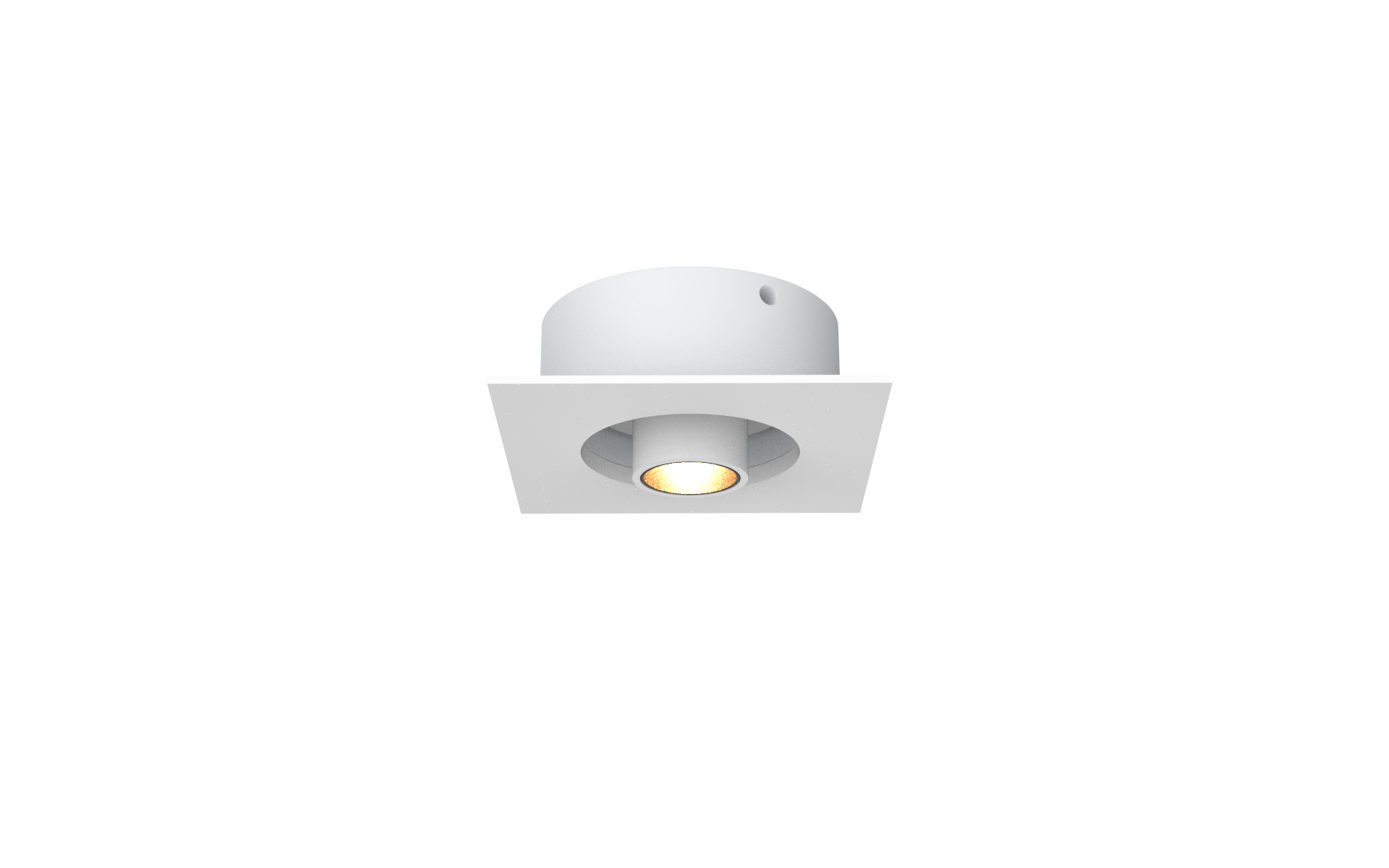

Aurore D22 On-Plate Range
Description
Highly adjustable recessed ceiling downlights on plate
for general & accent lighting
Ø22mm
Versions
1 LED low luminance LED spotlight
or cluster of 2, 3 or 4 low luminance LED spolights on a metal plate
Power supply
Remote constant current driver 700mA max
Dimmable driver upon request
Power
2 to 8W according to version

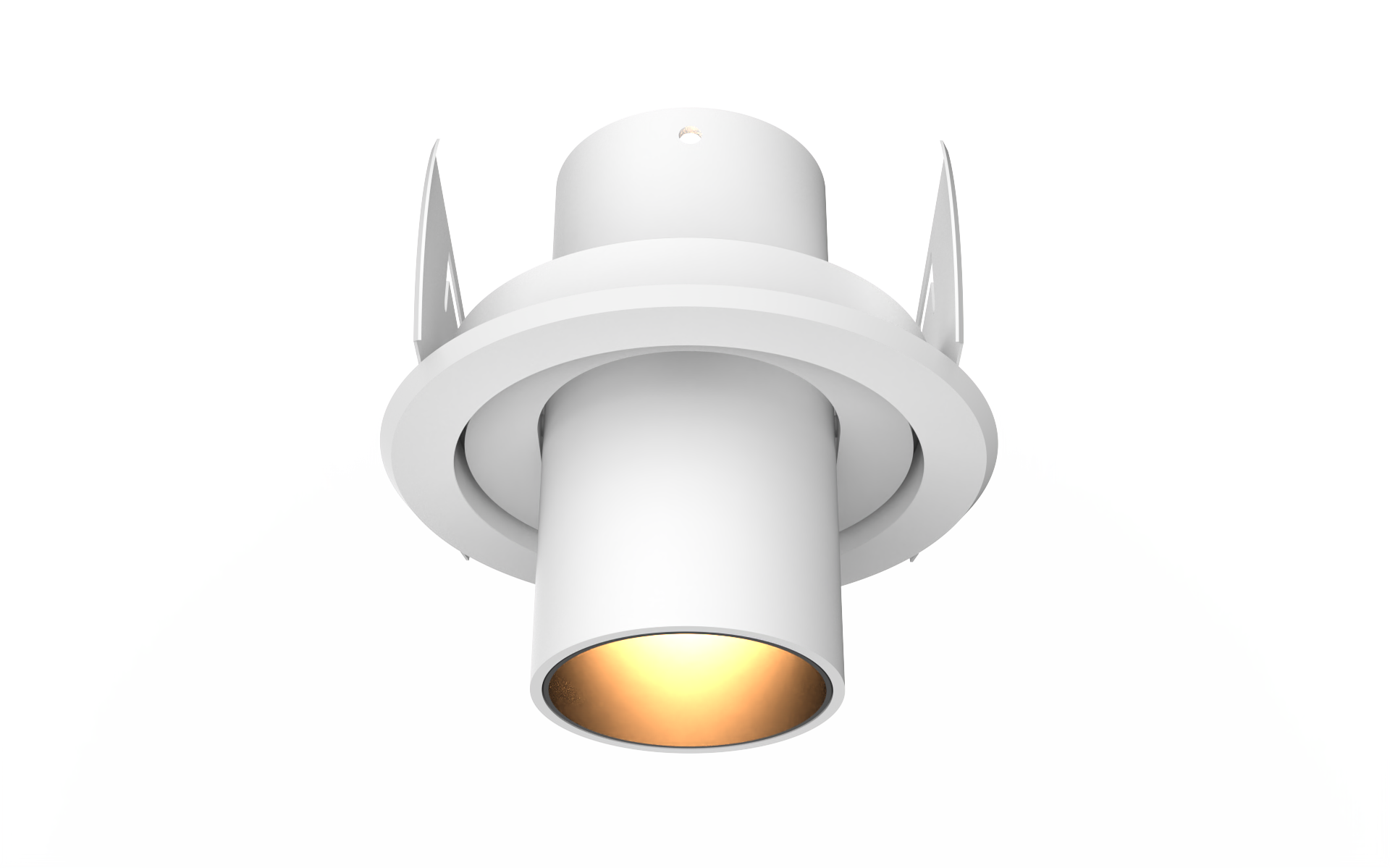

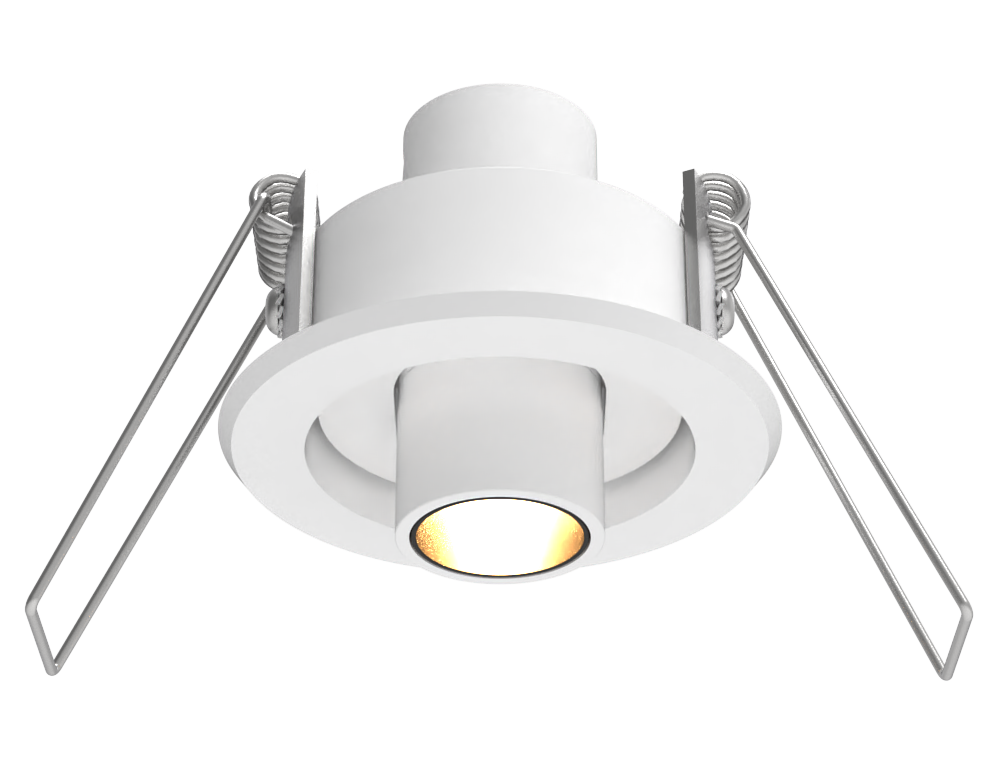

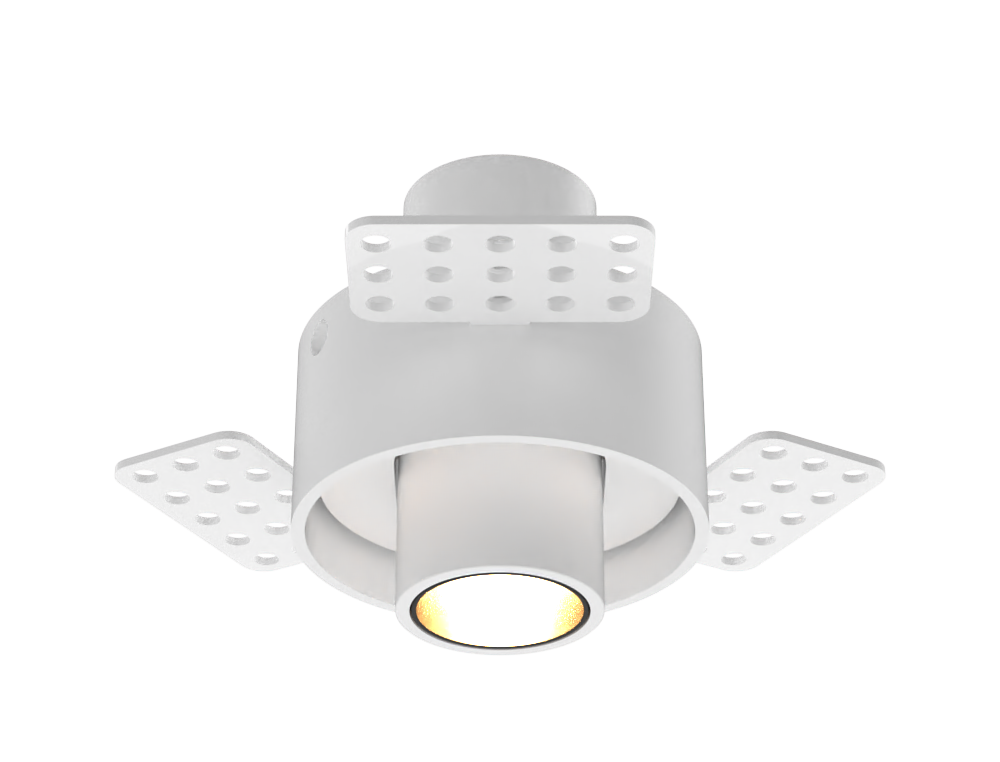

Aurore D22 Recessed Range
Versions
Trim & Trimless versions
Ø22mm
Power supply
Remote constant current driver 900mA max.
Dimmable driver upon request

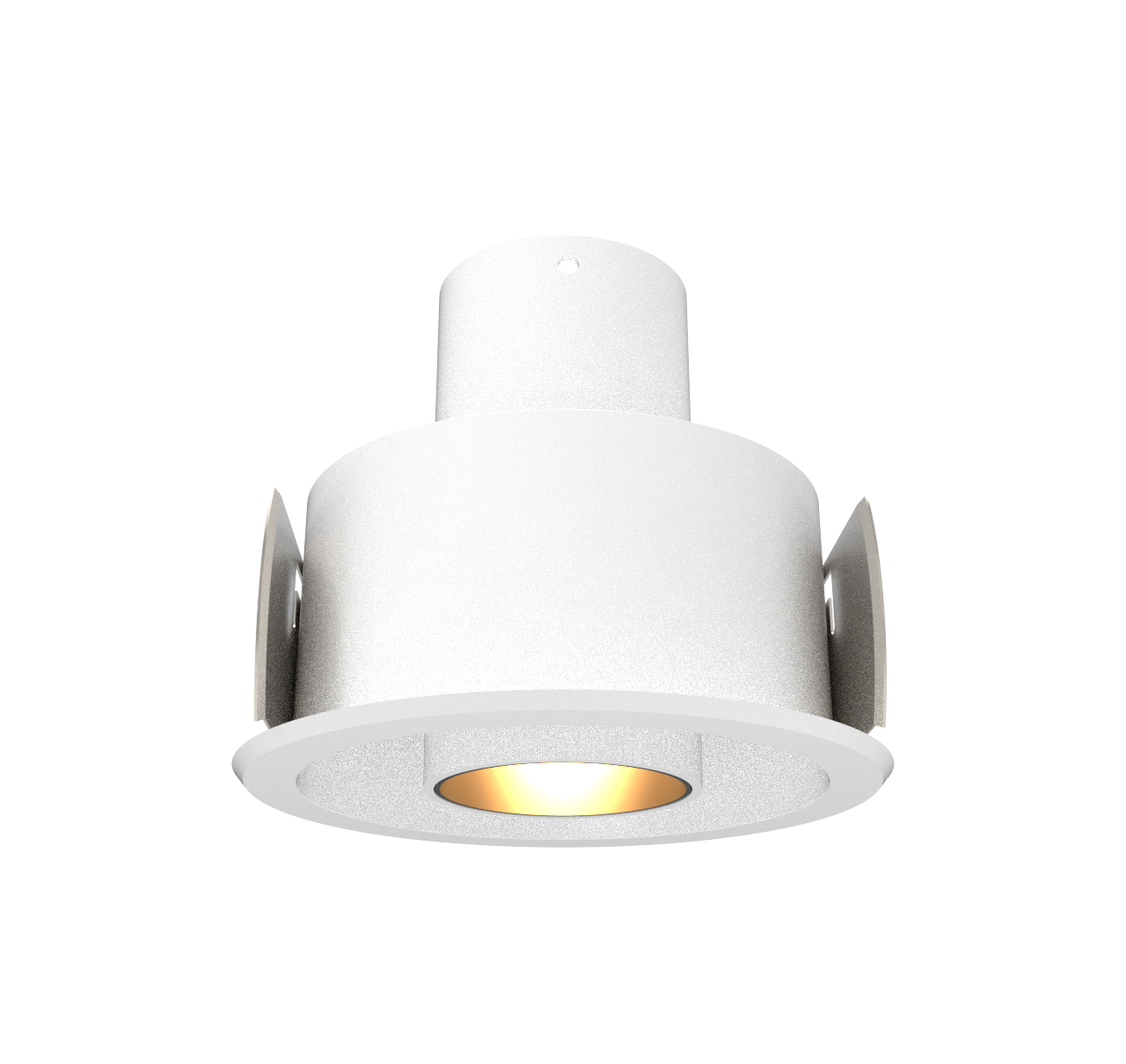

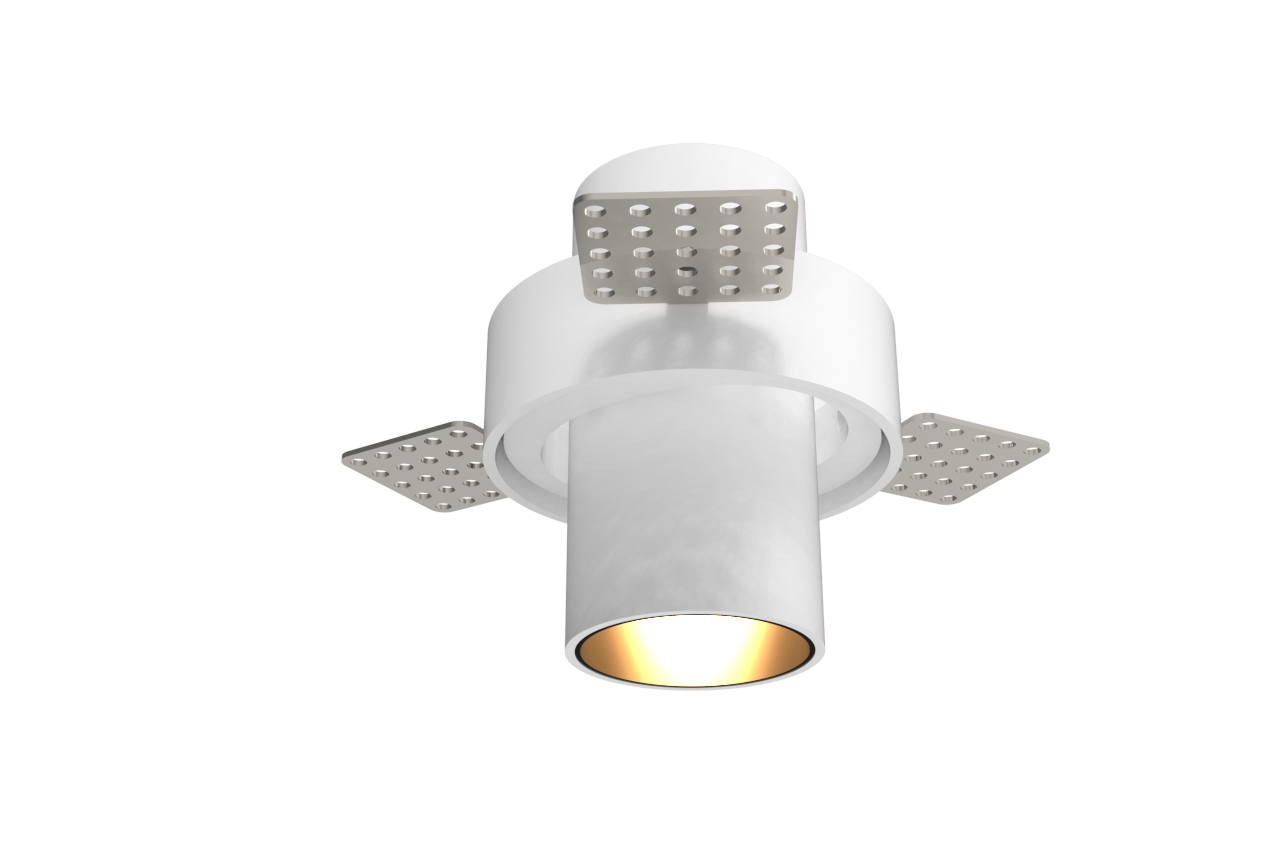

Aurore D40 Recessed Range
Description
Trim & Trimless versions
Recessed on-plate version
Ø40mm
Luminous flux
300 to 800 Lm according to version
Power supply
Remote constant current driver 700mA max. according to version
Dimmable driver upon request
Power
4 to 10W according to version

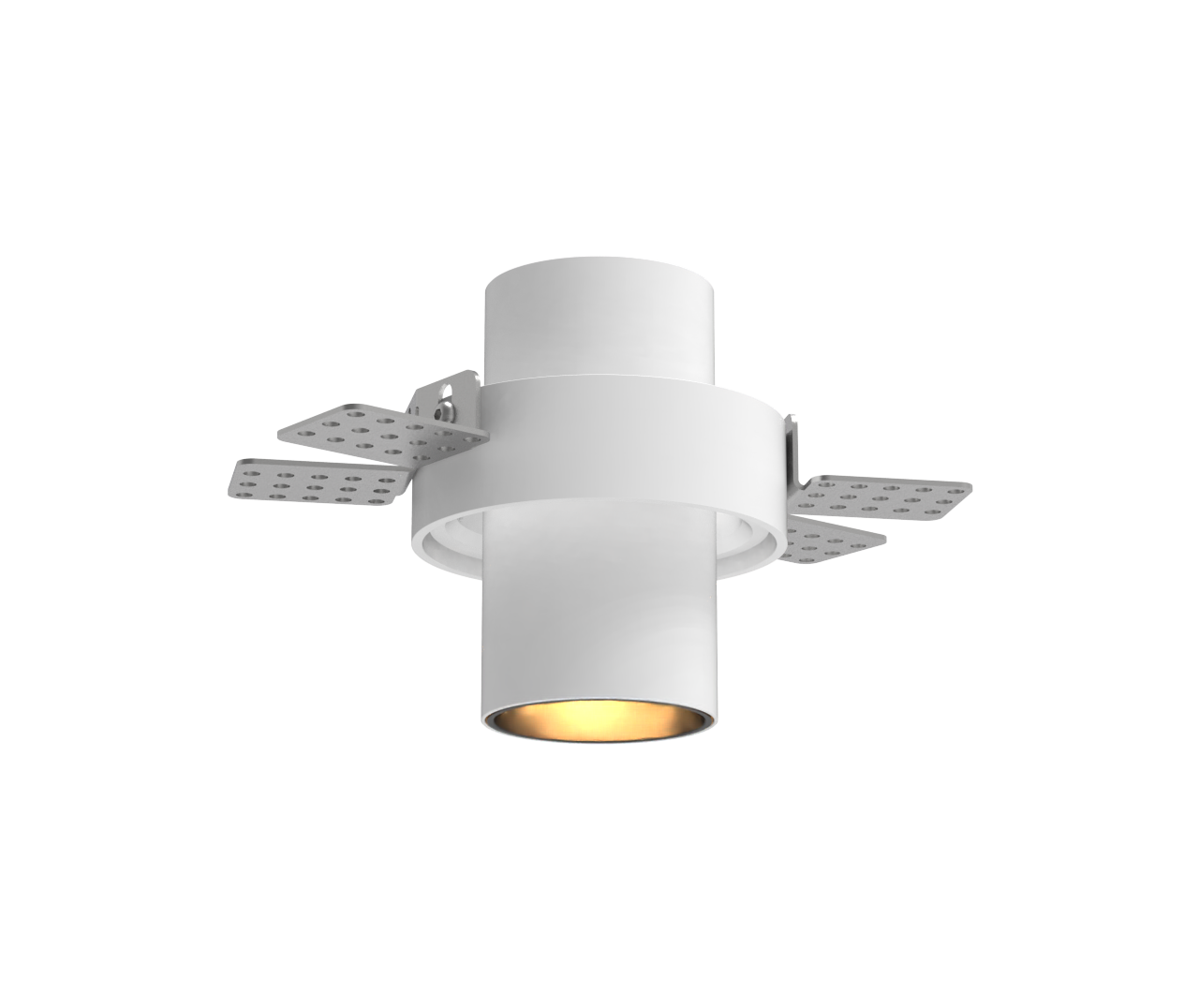

Aurore D42 Recessed Range
Versions
Trim & Trim Flush
Trimless & Trimless Flush
Ø42mm
LED characteristics
300 to 800 Lm according to version
Power supply
Remote constant current driver
700mA max. according to version
Dimmable driver upon request
Power
4 to 10W according to version

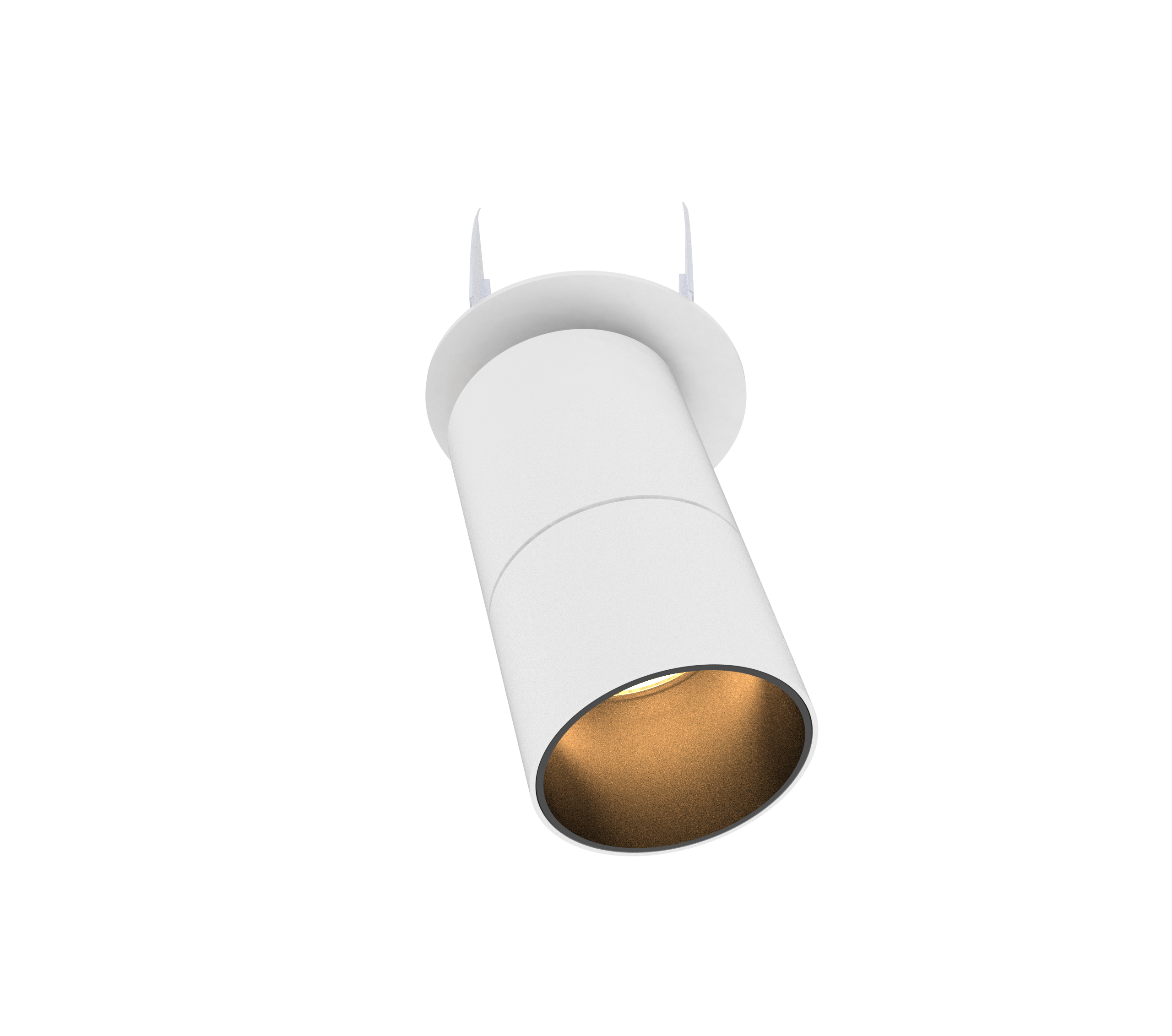

Aurore D52 Recessed Range
Versions
Recessed On-Plate
Fixed Canon
Trim
Trimless versions
Ø52mm
LED characteristics
600 to 2000Lm according to version
Power supply
Remote constant current driver
1400mA max. according to version
Dimmable driver upon request
Power
6 to 25W according to version
Aurore D55 Recessed Range
Versions
Trim
Trim Flush
Trimless
Trimless Flush
Ø55mm
LED characteristics
600 to 1600 lm according to version
Power supply
1.400mA max. constant current driver according to version
Dimmable driver upon request
Power
< 20W according to version
driver included

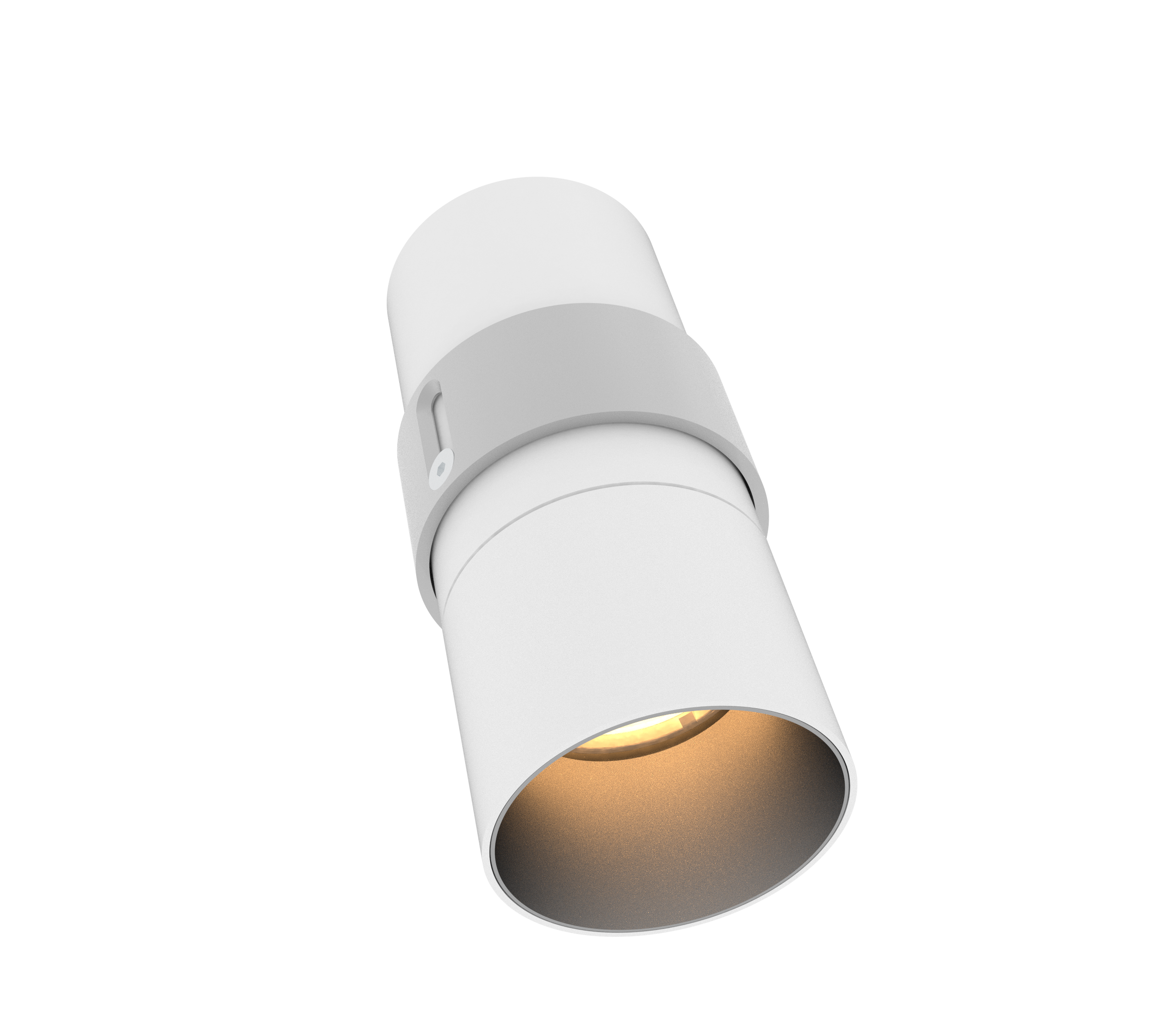

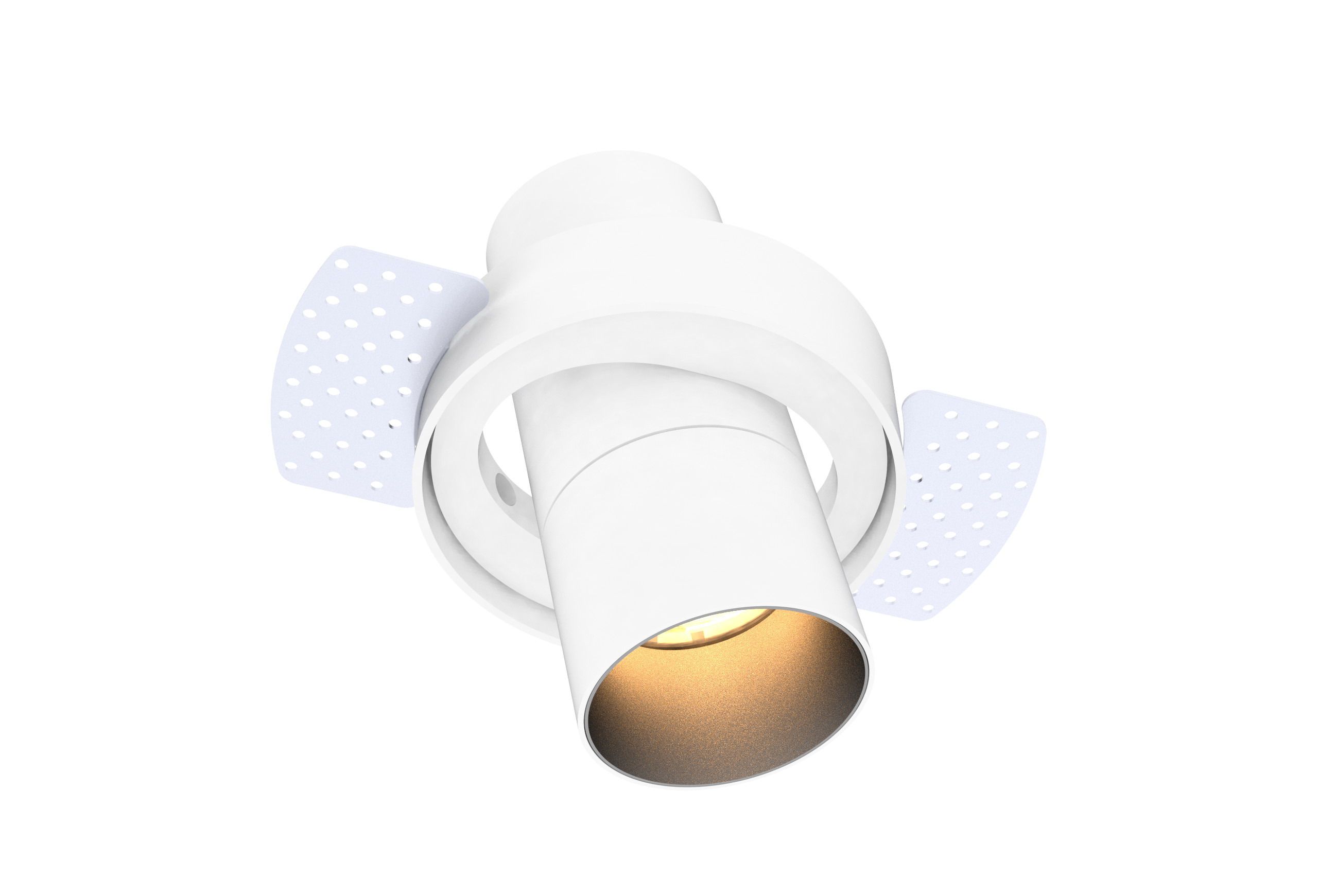

Aurore D60 Recessed Range
Versions
Trim
Trimless
Fixed Canon
Ø61mm
LED characteristics
600 to 1600 lm according to version
Power supply
1.400mA max. constant current driver according to version
Dimmable driver upon request
Power
< 20W according to version

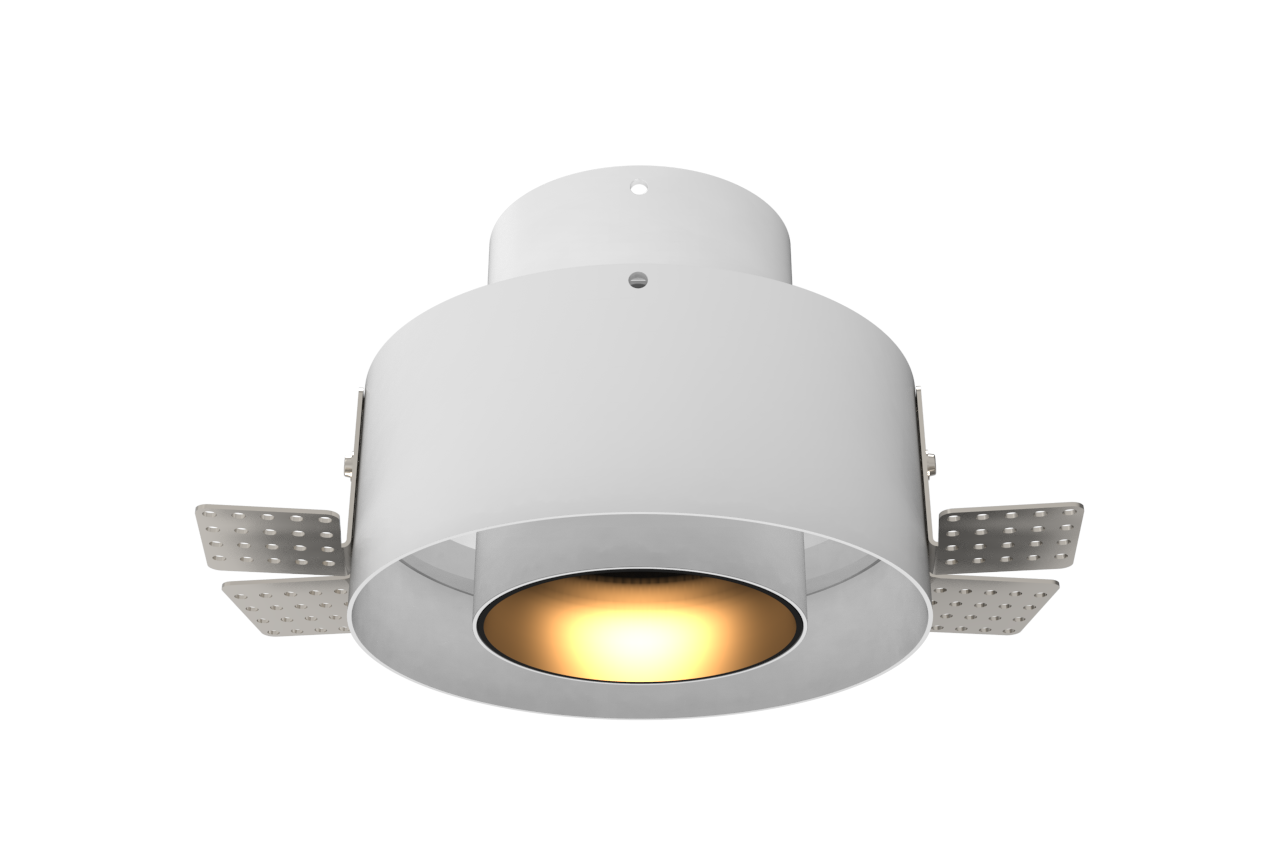

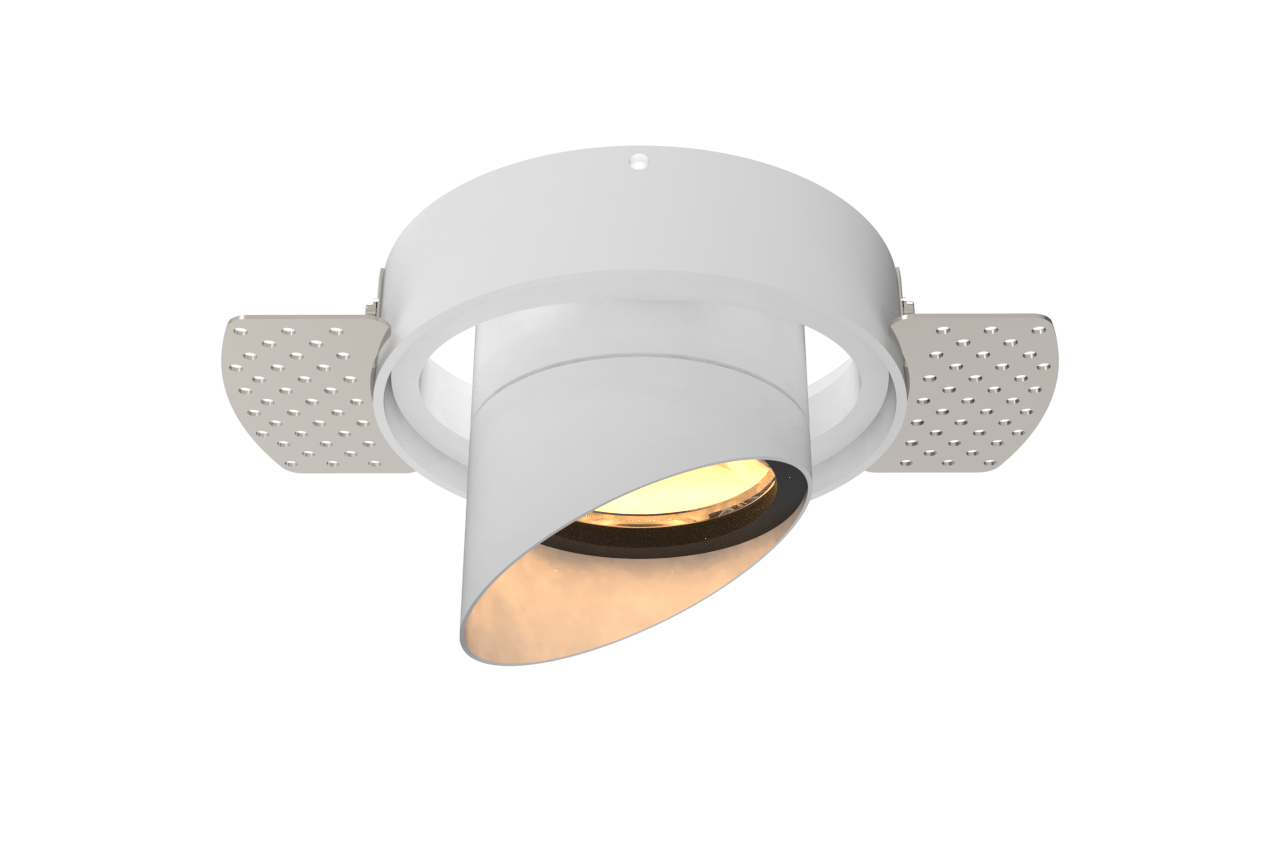

Aurore D75 Recessed Range
Versions
Trimless
Trimless Wall Washer
Trimless Flush
Ø75mm
LED characteristics
600 to 2,000 lm according to version
Power supply
1.400mA max. constant current driver according to version
Dimmable driver upon request
Power
6W to 25W according to version

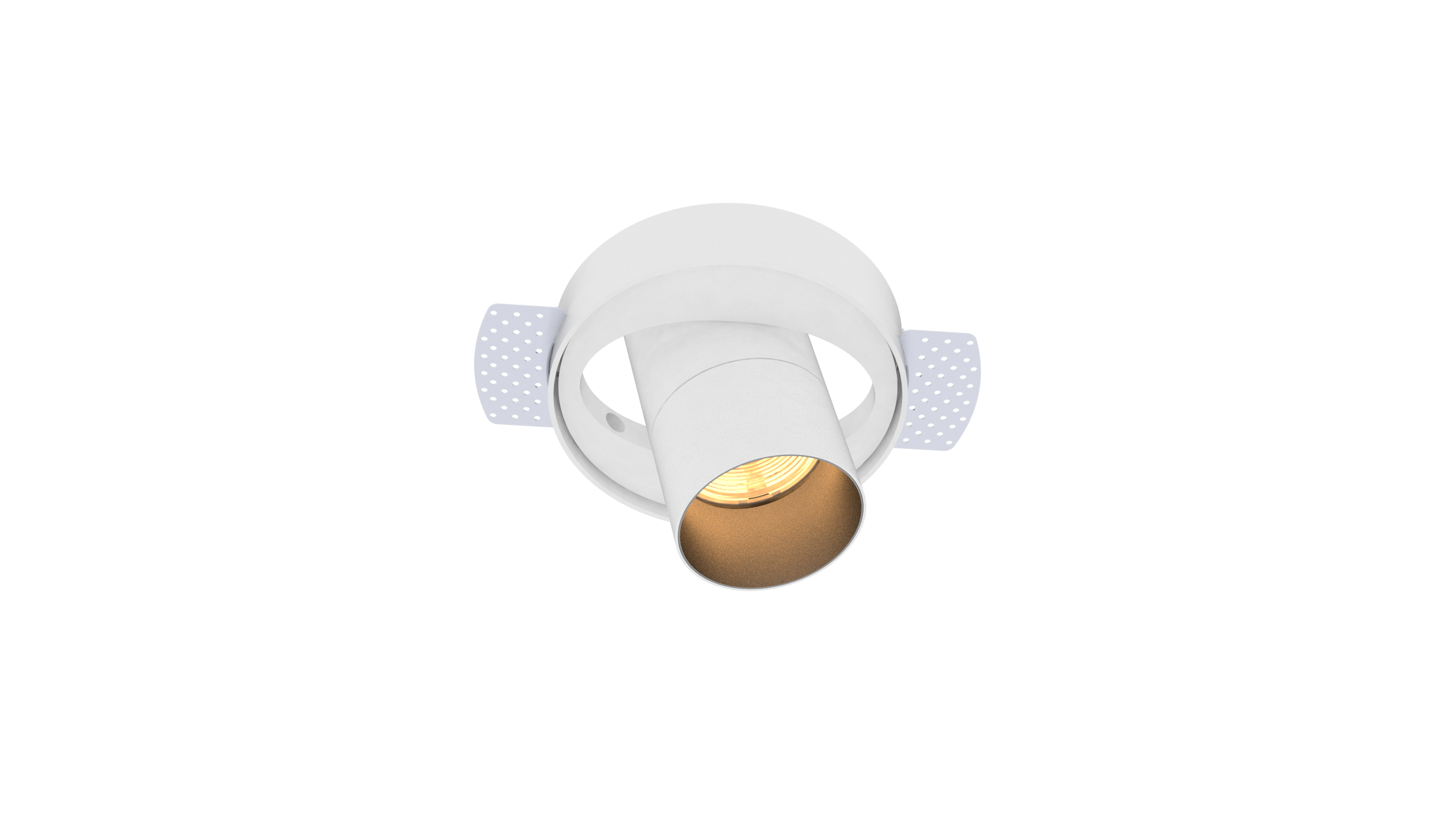

Aurore D82 Recessed Range
Versions
Trimless Monochrome version
Trimless Tunable White version
Ø81mm
LED characteristics
1,500 to 2,600 lm according to version
Power supply
Trimless :
External constant current driver 700mA max.
Dimmable driver upon request
Remote constant current DMX driver
700mA max.
(1A possible with driver flanged at 30W max)
Power
15 to 30W according to version
