Piano
Linear LED trimless recessed with miniature low luminance LED spots
Indoor range
Linear Versions Recessed, Trimless, Trimless Box Magnetic, Custom length, Trimless Built-in Driver & Suspension
Colour temperature
2700K – 3000K – 3500K – 4000K (Other upon request)
CRI
CRI 92
R9>80
UGR
< 15
Optics/Diffusers
16° - 21° - 28° - 38° - 40° - 50° - 65° - Elliptical 16°x40°
Finish
RAL upon to request
IP
IP40
Download the documentation
Discover the whole range Piano

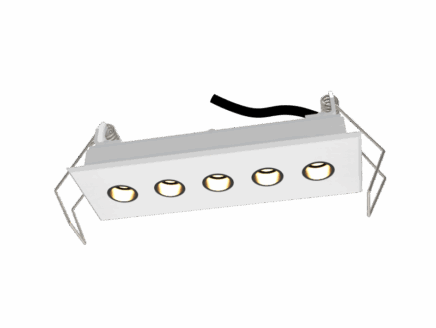

Piano Single Recessed
Description
5 LEDs with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
Installation
Fixing springs
Dimensions
114 x 39 x 33.6mm
Weight
0.120 kg
Piano Single Trimless Box
Description
5 LEDs with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
Installation
Recessed frame with fixing brackets
Driver on the top of the luminaire
Dimensions
117 x 36 x 26.5mm
(frame included)
Weight
0.150kg
Piano Single Trimless Magnetic Box
Description
5 LEDs with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
Installation
Recessed box for jutting-out installation
Remote driver
Dimensions
117 x 36 x 30mm
Weight
0.140 kg
Piano Single Trimless Box Magnetic (with brackets)
Description
5 LEDs with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
Installation
Magnetic recessed box
Fixing brackets
Remote driver
Dimensions
117 x 30 x 36mm
157 x 30 x 36mm (brackets)
Weight
0.150kg
Piano Trimless Custom Length
Description
5 LEDs modules with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
(12 modules max)
Installation
Recessed box with aluminum brackets or metal plate
Dimensions
32 x 20.2mm
Length up to 2,500mm max.
Weight
1.2 kg / meter
Piano Trimless Built-in Driver
Description
5 LEDs with low luminance tubes :
• Straight
• Tilted 7° - 10° - 12°
Installation
2 fixing slots at the back
2 fixing holes on top
Cable exit on top
Dimensions
152 x 36 x 130mm

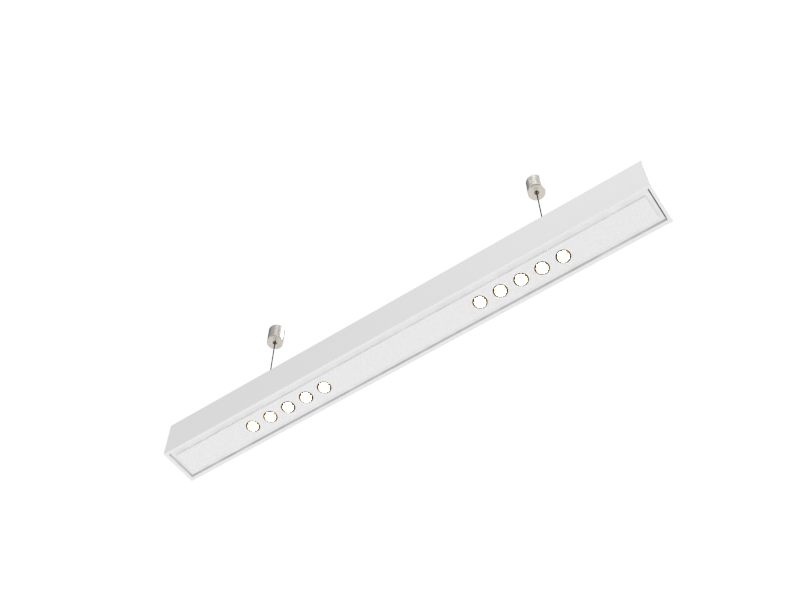

Piano Suspension
Description
5 LEDs modules with low luminance tubes :
• Straight
• Tilted 7° - 10° - 15°
Installation
Suspended by steel adjustable rope
Dimensions
(see datasheet)
