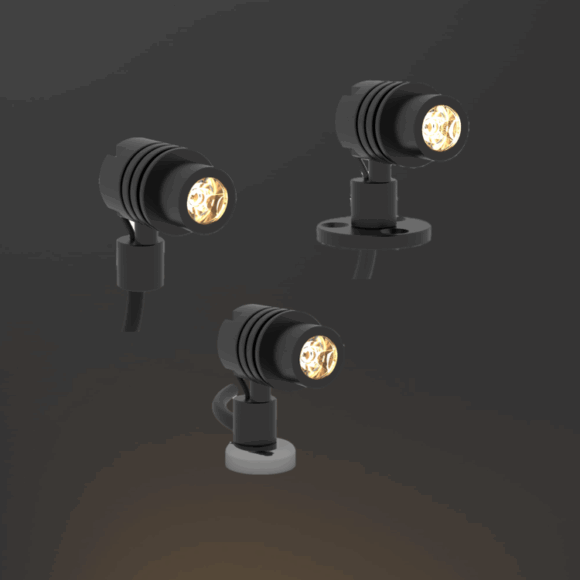

Micro & MicroTwin
Miniature luminaire for accent lighting 1 adjustable spotlight or 2 to 8 adjustable spotlights on a U profile
Indoor range
Furniture & Showcase
Finishing
Black anodized matt finish
Colour temperature(s)
2200K - 2700K - 3000K - 3500K - 4000K (other upon request) Or 2 colour temperatures in alternation (MicroTwin)
Optical beams
14° - 17° - 25° - 30° - 35° - 40° - 60° - Elliptical (other upon request)
CRI
CRI 90 – R9>80
Power supply
700mA max. external constant current driver Dimmable driver upon request
IP
IP40
Electric class
III
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Micro & MicroTwin

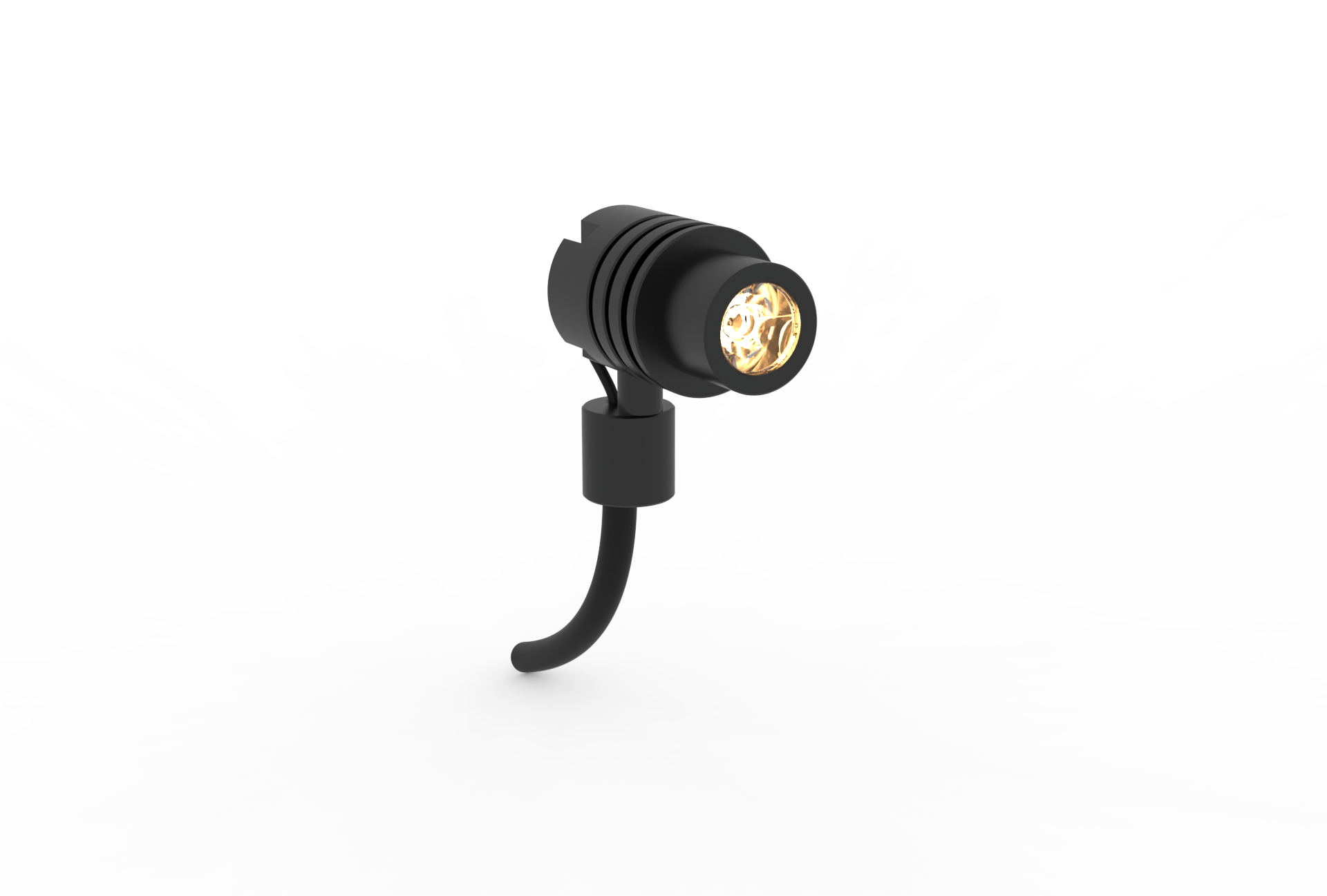

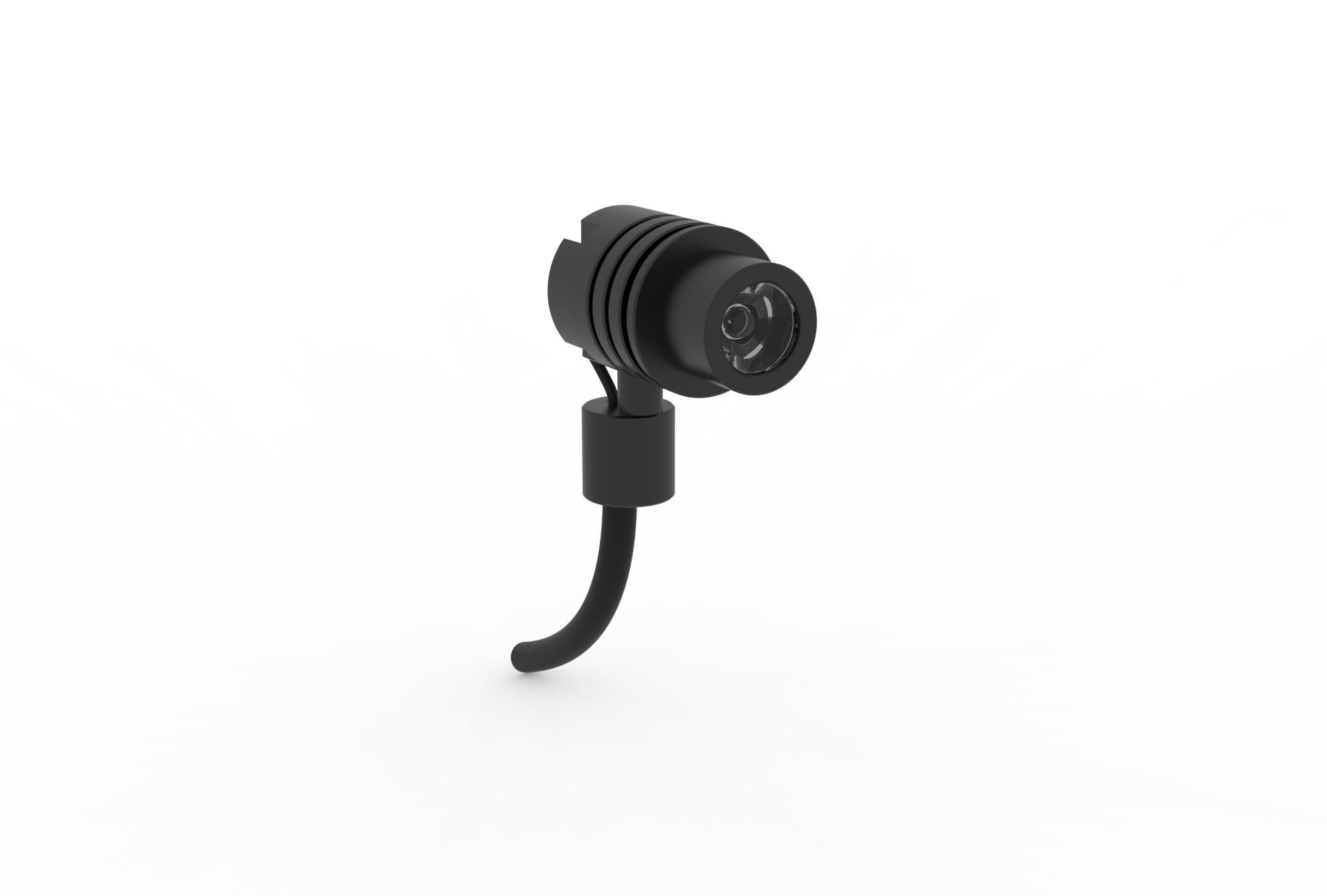

Micro on Threaded Rod
Description
Simple or Low Luminance version
Dimensions (with fixing device)
SIMPLE
Diameter : 12.6mm
Length : 31mm
Height : 41.6mm max.
LOW LUMINANCE
Diameter : 12.6mm
Length : 37.2mm
Height : 47.8mm max.

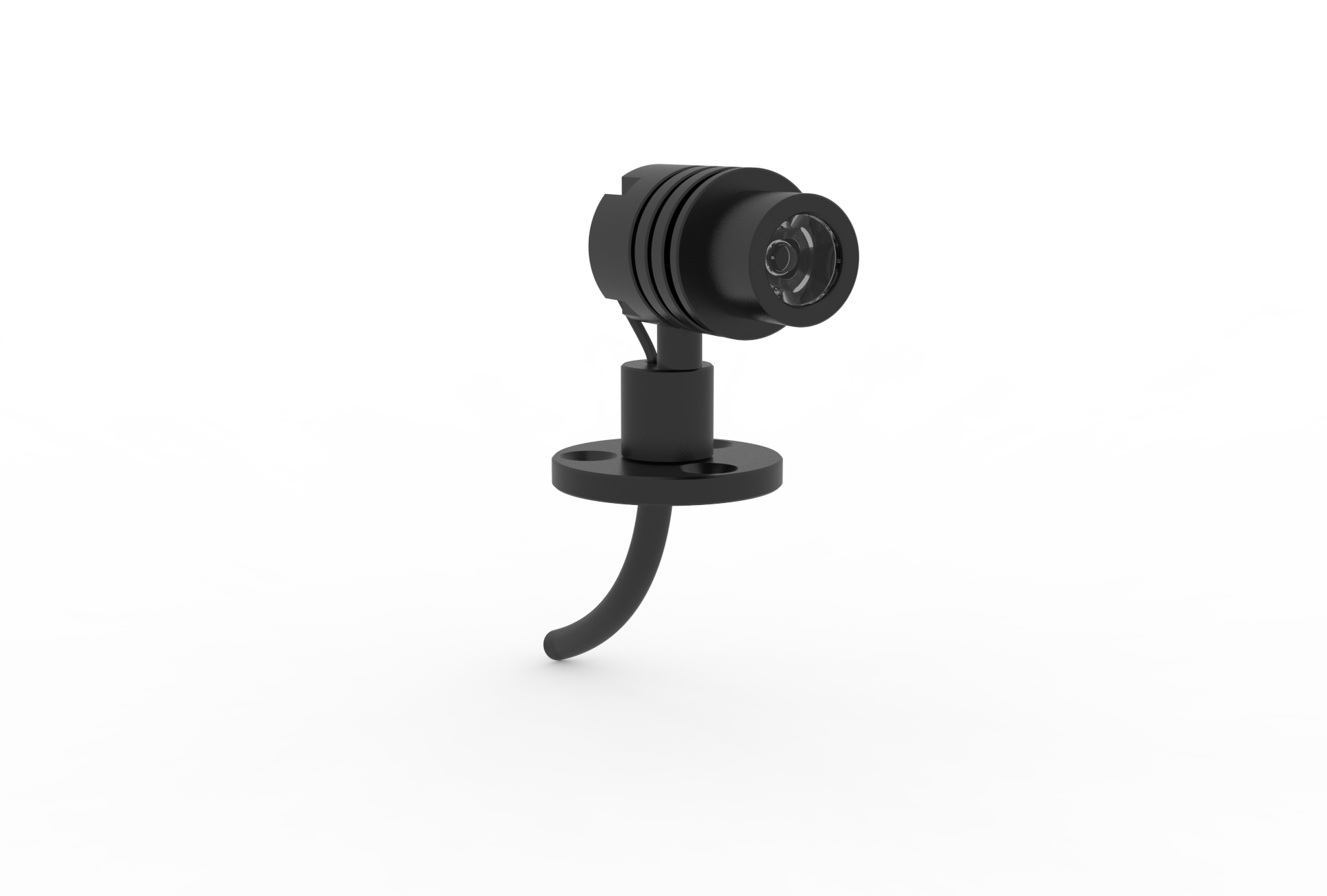

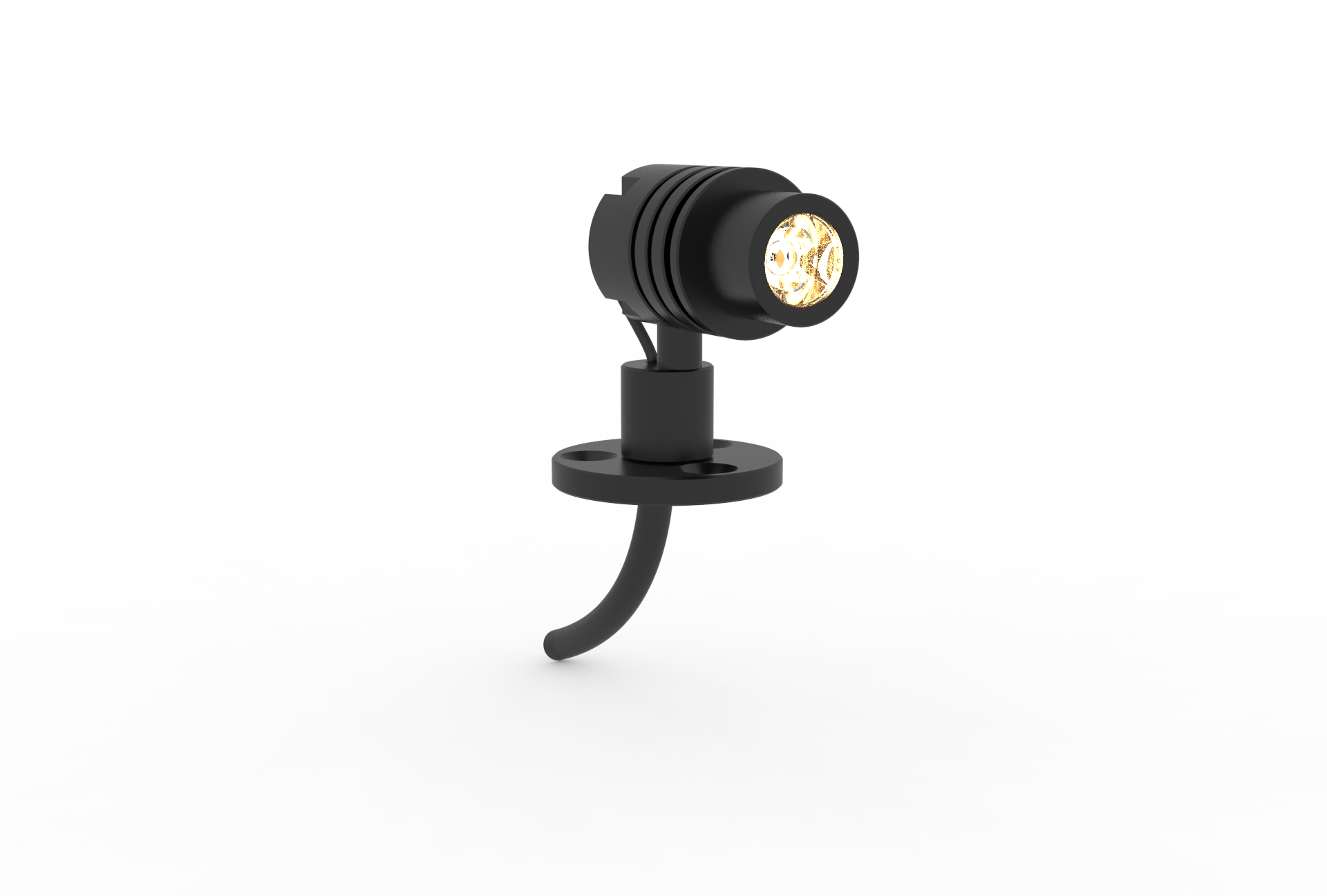

Micro On-Plate
Description
Simple or Low Luminance version
Dimensions (with fixing device)
SIMPLE
Diameter : 12.6mm
Length : 38.5mm
Height : 44.6mm max.
LOW LUMINANCE
Diameter : 12.6mm
Length : 44.7mm
Height : 50.8mm max.

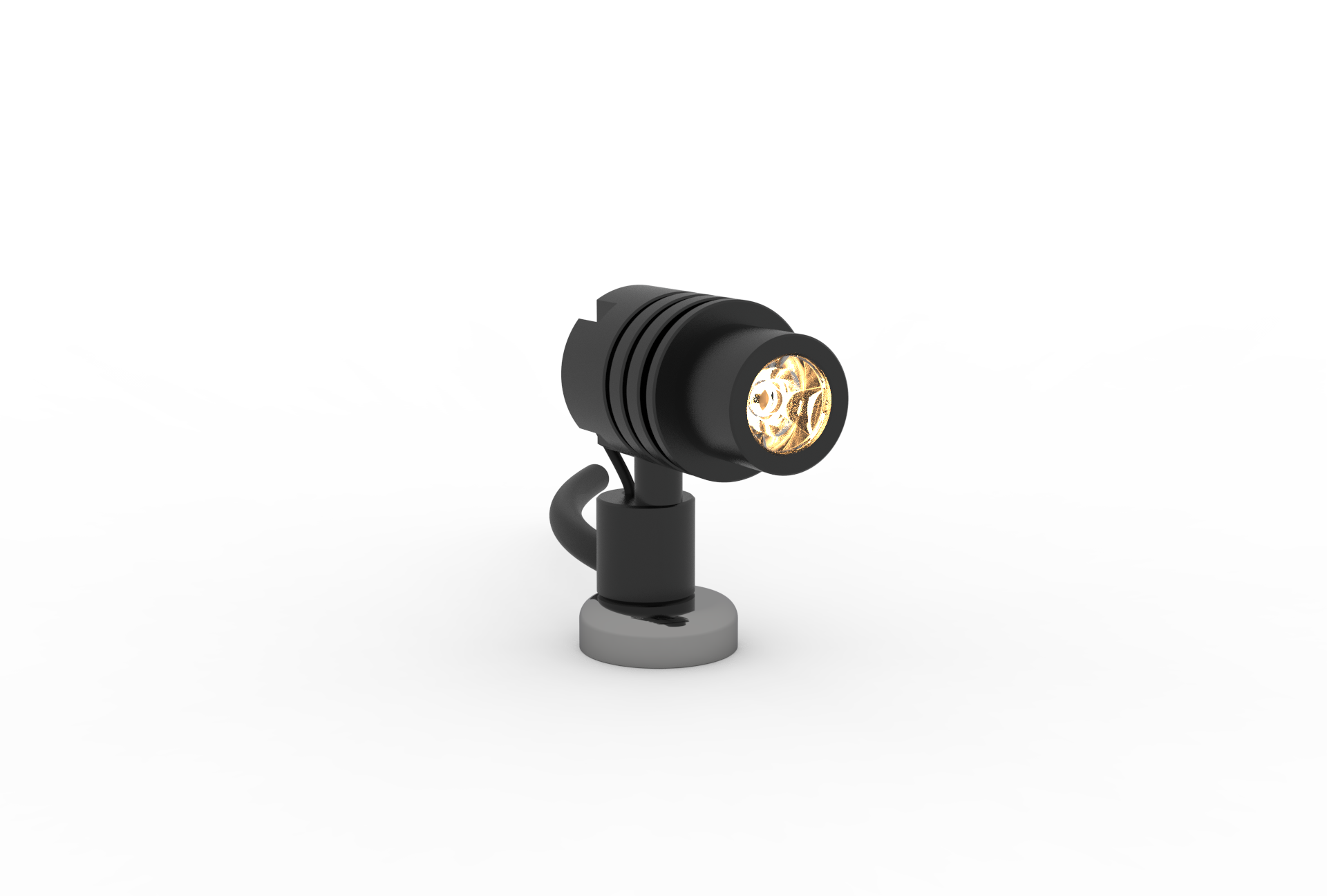

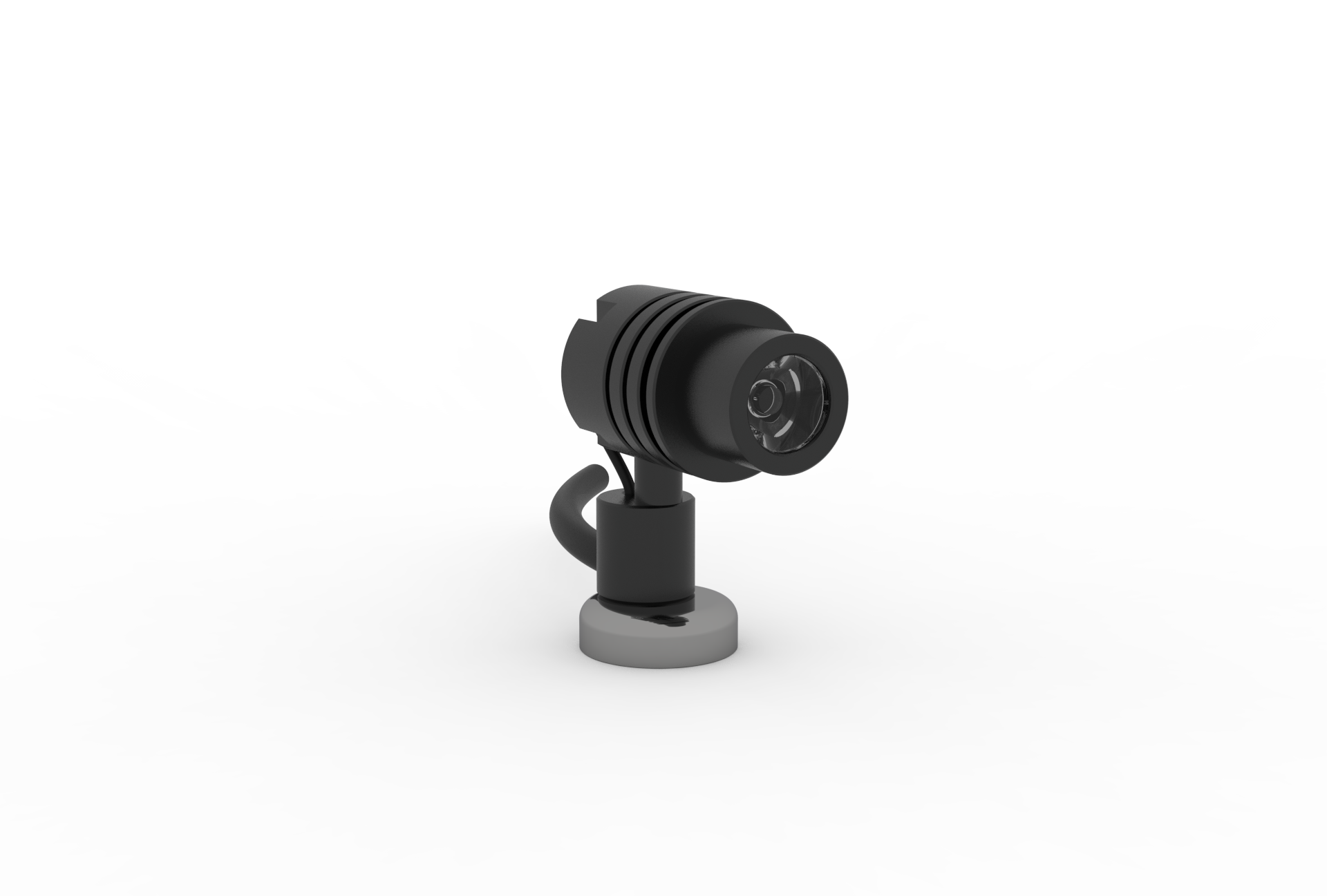

Micro Magnetic
Description
Simple or Low Luminance version
Dimensions (with fixing device)
SIMPLE
Diameter : 12.6mm
Length : 31.4mm
Height : 46.6mm
LOW LUMINANCE
Diameter : 12.6mm
Length : 37.6mm
Height : 52.8mm max.
MicroTwin
Description
2 to 8 spotlights on a U profile
U profile dimensions
Width : 20mm
Heigh : 15mm
Total height : 46mm
Length : 117 to 351mm
(according to version)
