Mysta Track
Adjustable low luminance spotlight on track for general & accent lighting
Indoor range
Ceiling & Walls
Permuto
Easily changeable LED, optics & accessories on site, without any tool, with integrated LOuss Permuto easy swap system
Finish
White RAL 9003 matt finish Black RAL 9005 matt finish (other upon request)
Colour temperatures
2700K - 3000K - 3500K - 4000K - 5000K (other upon request)
CRI
CRI 90 (standard version) CRI 95, R9>80 (premium version)
Optical beams
11° - 16° - 20° - 23° - 34° - 43°
UGR
UGR < 15
Performances
300 to 800 lumen 1,050 to 10,900 cd according to version
Options
Filters, honeycomb grid upon request
Electrical rating
II
IP
IP40
Life span
L80B10 at 50 000 heures (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Mysta Track

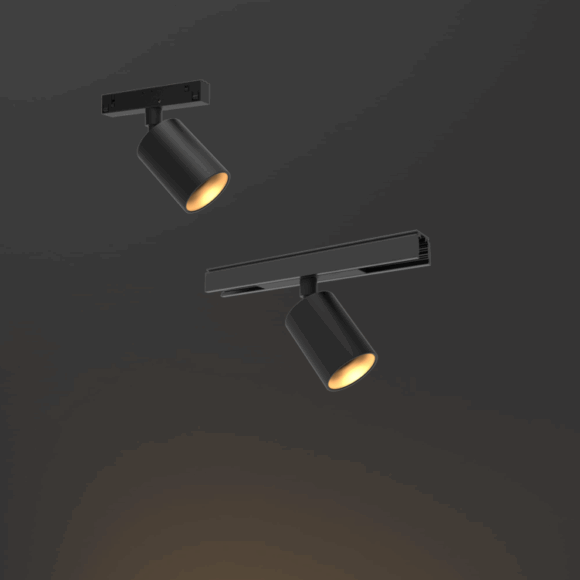

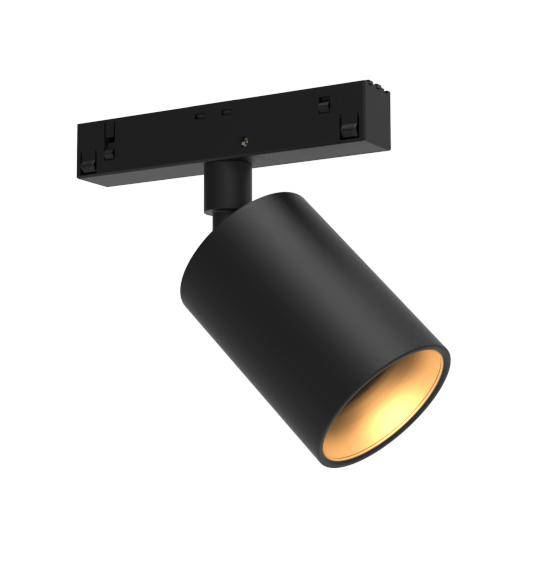

Mysta 48V-Stucchi Track
Dimensions
Spotlight :
Diameter : 46mm
Length : 64mm
Track EVO-S ST1 :
26.2 x 21mm
Weight
Spotlight : 0.18kg
Track ST1 : 0.7 kg/m
Power supply
Spot adaptator for 48V Stucchi EVO-S track
Separate power supply 230V/48V
ON/OFF, PWM or DALI driver

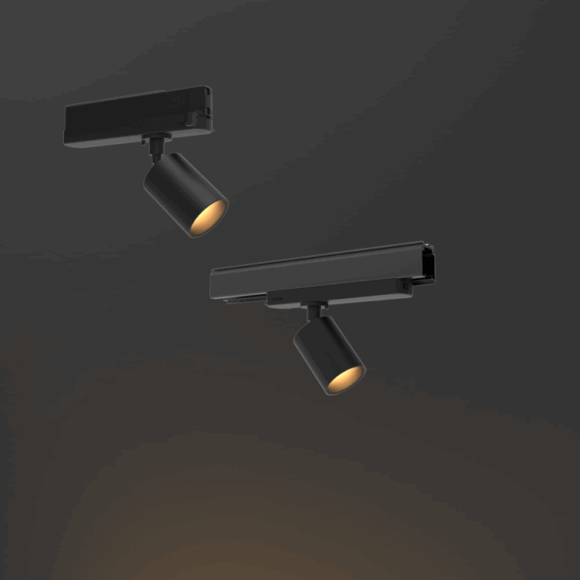

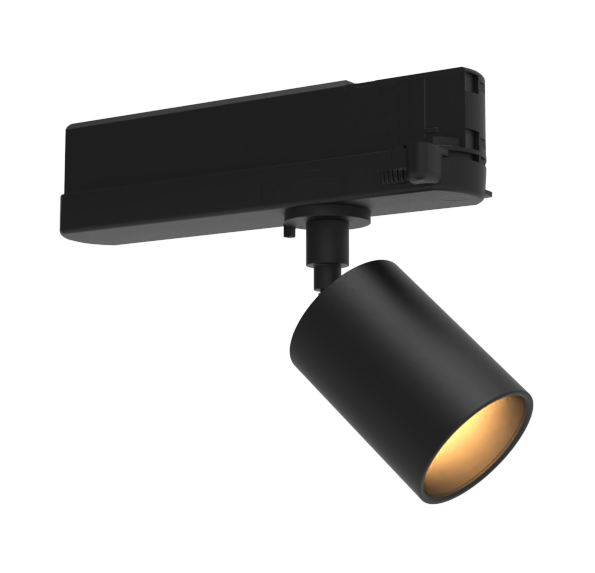

Mysta 230V Track
Dimensions
Diameter : 46mm
Length : 64mm
Weight
0.250kg (without track)
Power supply
Driver suitable for Global Trac Pro XTS track or equivalent (Erco, Trajectoire...)
700mA or 1,050mA max. ON/OFF driver
or
700mA max. DALI driver
