Magmato
Recessed architectural floodlighting
Outdoor range
Recessed floodlights
Diameters
40mm - 80mm - 95mm - 200mm - 300mm
Colour temperature
2200K – 2700K - 3000K – 4000K – 5000K – 6500K
(other upon request)
or Twin white
or RGBW
Finishing
Body in aluminium
Head in stainless steel
Recessing box in PVC
Electric class
Magmato 40, 80, 95 : I Magmato 200, 300, 300-M : III
IP
IP65
IK
IK 10
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Magmato

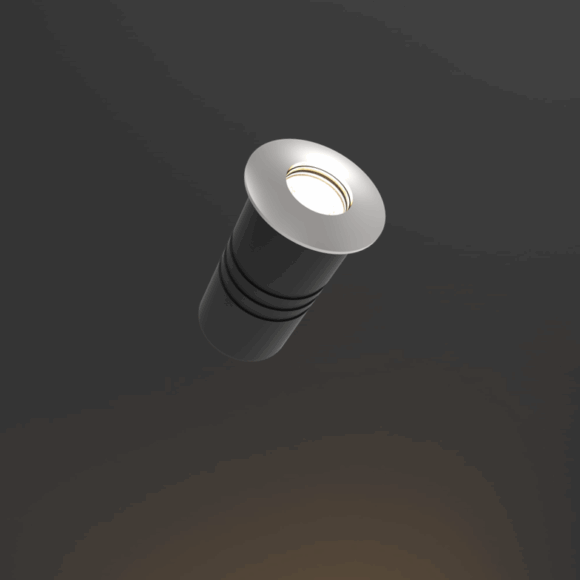

Magmato 40
Description
Supplied in Short or Long version
Dimensions
Head diameter : 40mm
Installation diameter : 32mm
Total length :
66.55mm (Short version)
92.55mm (Long version)
Installation depth :
64mm (Short version)
90mm (Long version)
LED characteristics
1 LED - Monochrome
Optics/Diffusers
15º - 35º - 40º - 60º (other upon request)
Power supply
Short version :
350mA external constant current driver
Long version :
700mA external constant current driver
or 12-24V integrated power supply
LED power
Short version :
1.2W at 350mA max.
Long version :
2.4W at 700mA max.
1.5W at 12-24V

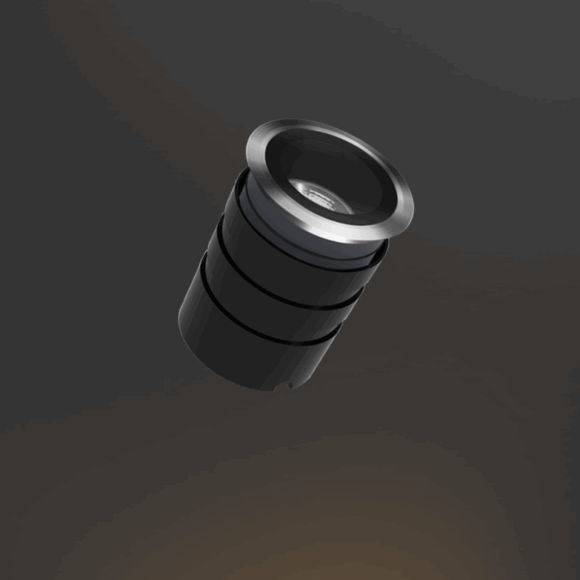

Magmato 80
Dimensions
Head diameter : 77mm
Installation diameter : 73mm
Installation depth : 120mm
Net weight : 0.5kg
LED characteristics
4in1 LED :
• Monochrome
• Twin White
• RGBW
600 to 850 lumen at 700mA max.
3 LEDs :
• Monochrome
• Twin White
• RGBW
500 to 600 lumen at 700mA max.
Optics/Diffusers
4º - 6º - 15º - 30º - 40º - 25x50º elliptical
or Wall Washer (other upon request)
Power supply
12-24V integrated power supply
LED power
7W
Magmato 95
Dimensions
Head diameter : 95.5mm
Installation diameter : 95mm
Total length : 88mm
Installation depth : 83mm
Net weight : 0.5kg
LED characteristics
4in1 LED :
• Monochrome
• Twin White
• RGBW
600 to 850 lumen at 700mA max
3 LEDs :
• Monochrome
• Twin White
• RGBW
500 to 600 lumen at 700mA max.
Optics/Diffusers
1 LED 4in1s :
6º - 10º - 15º - 25º - 35º - 6ºx32º
3 LEDs :
14º - 25º - 30º - 40º - 60º - 18ºx36º
Power supply
Remote constant current driver 700mA max
LED power
LED 4in1 : 7.7W at 700mA max.
3 LEDs : 7.2W at 700mA max.

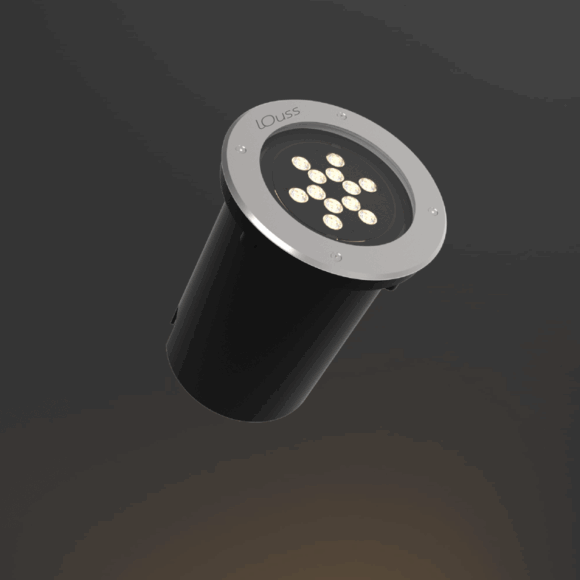

Magmato 200
Dimensions
Head diameter : 222mm
Installation diameter : 212mm
Total length : 286mm
Installation depth : 280mm
LED characteristics
12/18 LEDs : Monochrome
18 LEDs : RGBW or Twin White
Optics/Diffusers
15° - 35° - 40° - 60° - 12°x50° - 18°x36°
(other upon request)
Power supply
700mA max integrated constant current driver
LED power
12 LEDs : 15W at 350mA
18 LEDs RGBW : 29W at 350mA
18 LEDs : 33W at 500mA

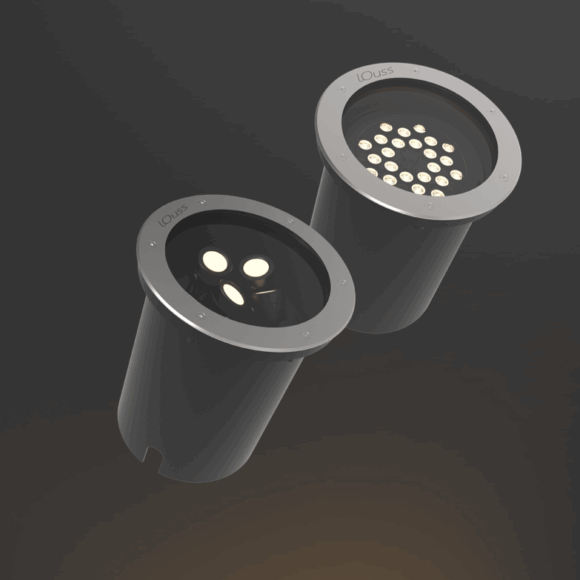

Magmato 300
Dimensions
Head diameter : 297mm
Installation diameter : 285mm
Total length : 355mm
Installation depth : 352mm
Net weight : 7.6 kg
LED characteristics
18 LEDs : Monochrome
24 LEDs : Twin White or RGBW
Optics/Diffusers
15° - 35° - 40° - 60° - 12°x50° - 18°x36°
(other upon request)
Power supply
700mA max integrated constant current driver
LED power
40W at 700mA max.
Magmato 300 Multidirectional
Dimensions
Head diameter : 297mm
Installation diameter : 285mm
Total length : 355mm
Installation depth : 352mm
Weight : 8 to 8.50 kg
LED characteristics
1 to 4 LEDs : Monochrome
Or mixing of color temperatures
Optics/Diffusers
4° - 6° - 15° - 25° - 35° - 40° - 60° - 12°x50° - 18°x36°
(other upon request)
Power supply
350mA max integrated constant current driver
LED power
16W at 350mA max.
