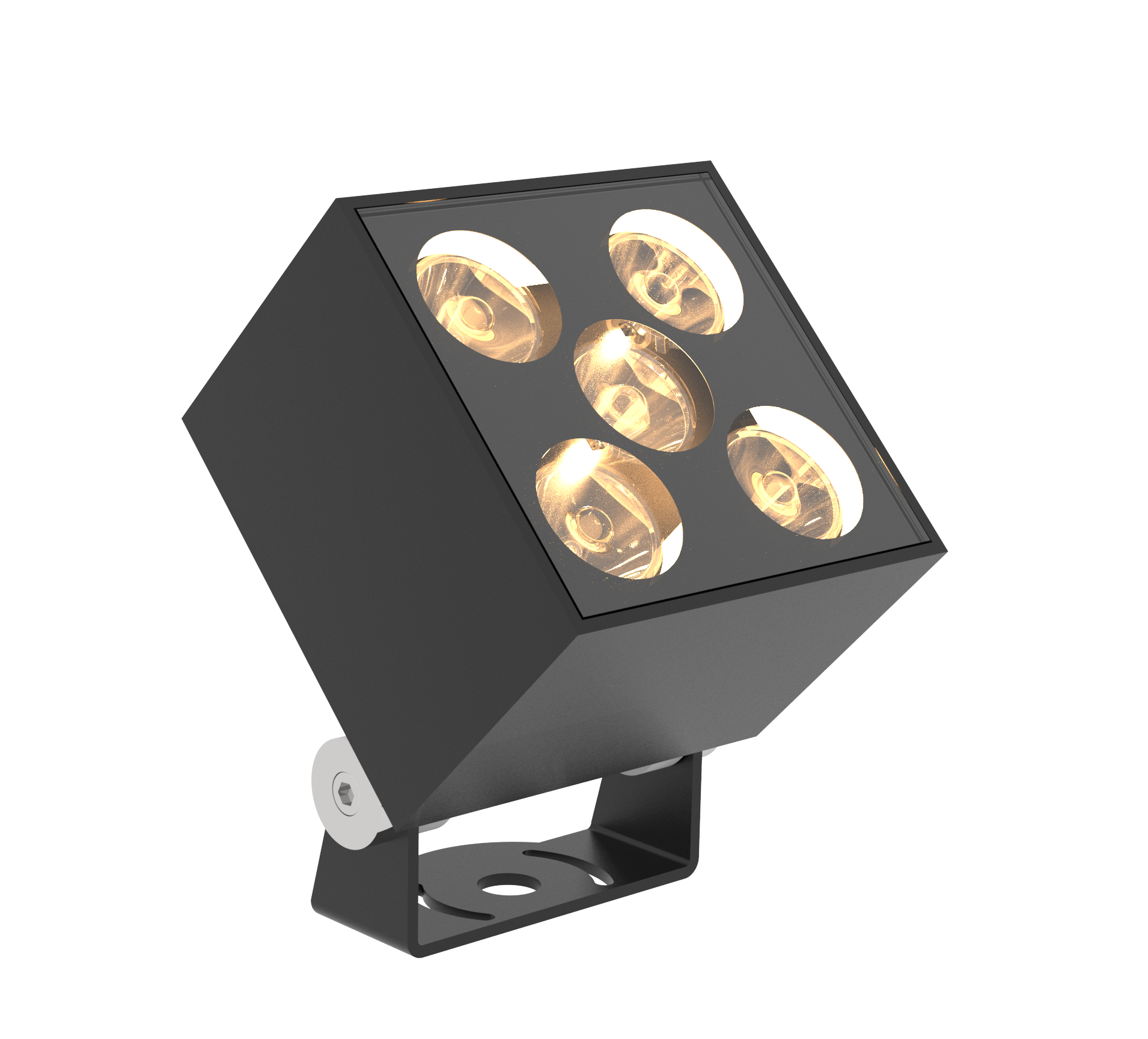

Domino
Adjustable surface mounted projector for architectural floodlighting
Outdoor range
Projectors
Colour temperature
1 or 5 LEDs : 2700K – 3000K – 3500K- 4000K (other upon request)
CRI
CRI 80 - 90 - 95
Optical beams
3° - 6° - 8° - 10° - 15° - 25° - 35° - 45° - 60° - Elliptical
Finishing
Black RAL 9005 matt finish (other upon request)
Power supply
230V integrated power supply DMX 48V upon request
LED power
1 LED : 2W 5 LEDs : 10W
Electric class
I
IP
IP65
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25ºC ambient temperature
Download the documentation
Discover the whole range Domino
Domino 1 LED
Dimensions
Length : 57mm
Width : 57mm
Height : 53mm
Bracket dimensions : 56 x 35 x 46mm
Weight
0.400 kg
Domino 1 LED with Visor
Dimensions (with visor)
Spotlight : 64 x 64 x 86mm
Bracket : 56 x 35 x 46mm
Weight
0.40 kg (without visor)
Domino 5 LEDs
Dimensions
Spotlight : 110 x 110 x 80mm
Bracket : 105 x 56 x 69mm
Weight
1.60kg
Domino 5 LEDs with Visor
Dimensions (with visor)
Spotlight : 117 x 117 x 143mm
Bracket : 105 x 56 x 69mm
Weight
1.60 kg (without visor)
