Rolled Gliss
Spotlight for highlighting architectural details Supplied in Standard version or with a Low Luminance tube
Outdoor range
Projectors
Finishing
Stone hue RAL 1013 matt (other upon request)
Dimensions
Spotlight diameter : 40mm Spotlight length : 51mm (Low Luminance version) Total height : 430mm max.
Colour temperature
1 LED or 3 LEDs : 2700K - 3000K – 4000K – 5000K (other upon request)
CRI
CRI 80
Optics/Diffusers
Intensive – Semi intensive – Extensive - Elliptical
Power supply
700mA max. constant current driver Integrated or separated driver according to version
LED power
1 LED : 2.4W 3 LEDs : 7.2W
IP
IP67
Electric class
I
Life span
L80B10 at 50,000 hours (80% remaining flux) at 25°C ambient temperature
Download the documentation
Discover the whole range Rolled Gliss

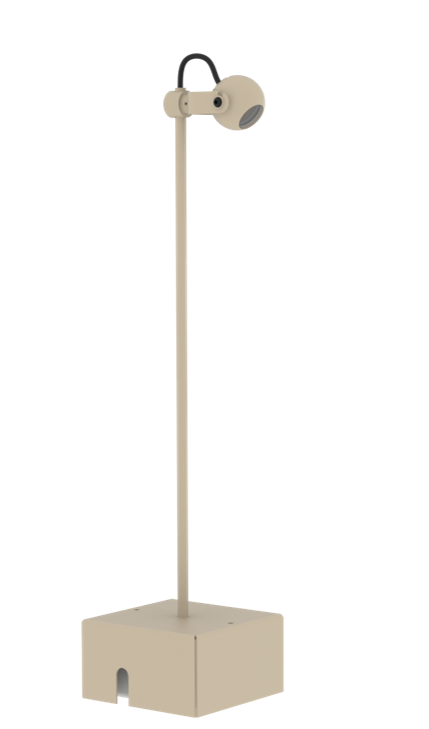

Rolled Gliss – Hollow Hook
Dimensions
Spotlight diameter : 40mm
Spotlight length : 51mm (LL version)
Rod length : 400mm max.
Total height : 430mm max.
Hook dimensions : 110 x 110 x 60mm
Power supply
700mA max. constant current integrated driver

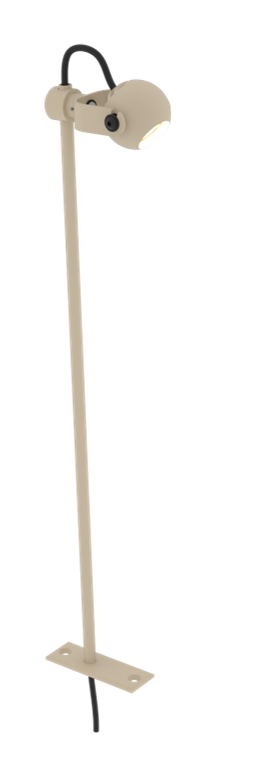

Rolled Gliss – On-Plate
Dimensions
Spotlight diameter : 40mm
Spotlight length : 51mm (LL version)
Rod height : 400mm max.
Total height : 430mm max.
Plate dimensions : 75 x 25mm
Power supply
700mA max external constant current driver
